Prodigit 3270 Series User Manual

28 PRODIGIT

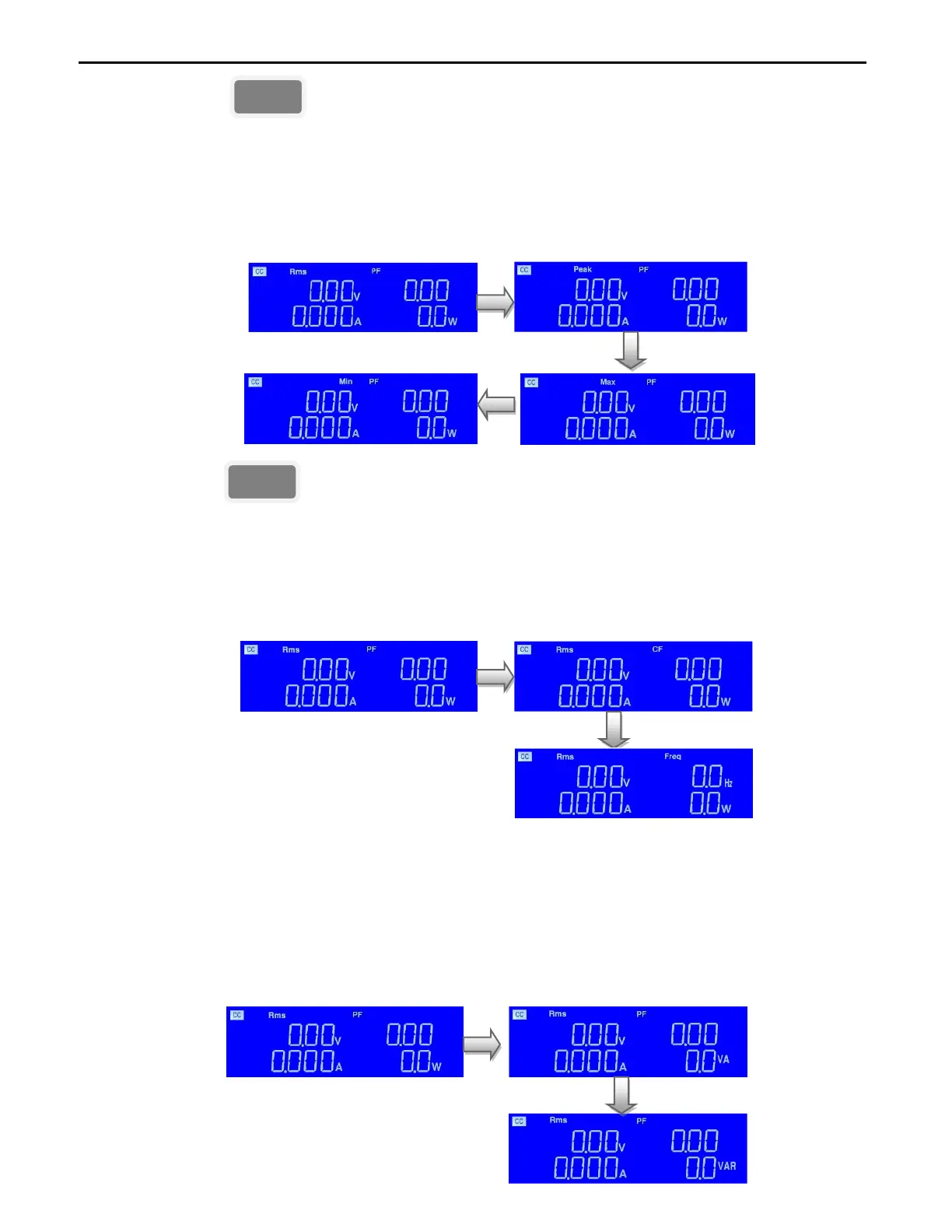

3.3.8. Key
There are four operating modes. These can be selected in turn by pressing the
"V/A/W" key on the 3270 series AC/DC Electronic Load. The sequence is:
 Rms
 Peak
 Max
 Min
3.3.9. key
There are three operating modes. These can be selected in turn by pressing the
" Meter” key on the 3270 series AC/DC Electronic Load. The sequence is:
 PF
 CF
 Freq
3.3.10. WATT/VA/VAR Key
There are three operating modes. These can be selected in turn by pressing the
“WATT/VA/VAR” key on the 3270 series AC/DC Electronic Load. The sequence is:
 W
 VA
 VAR
V/A/W
Meter
