Prodigit 3270 Series User Manual

30 PRODIGIT

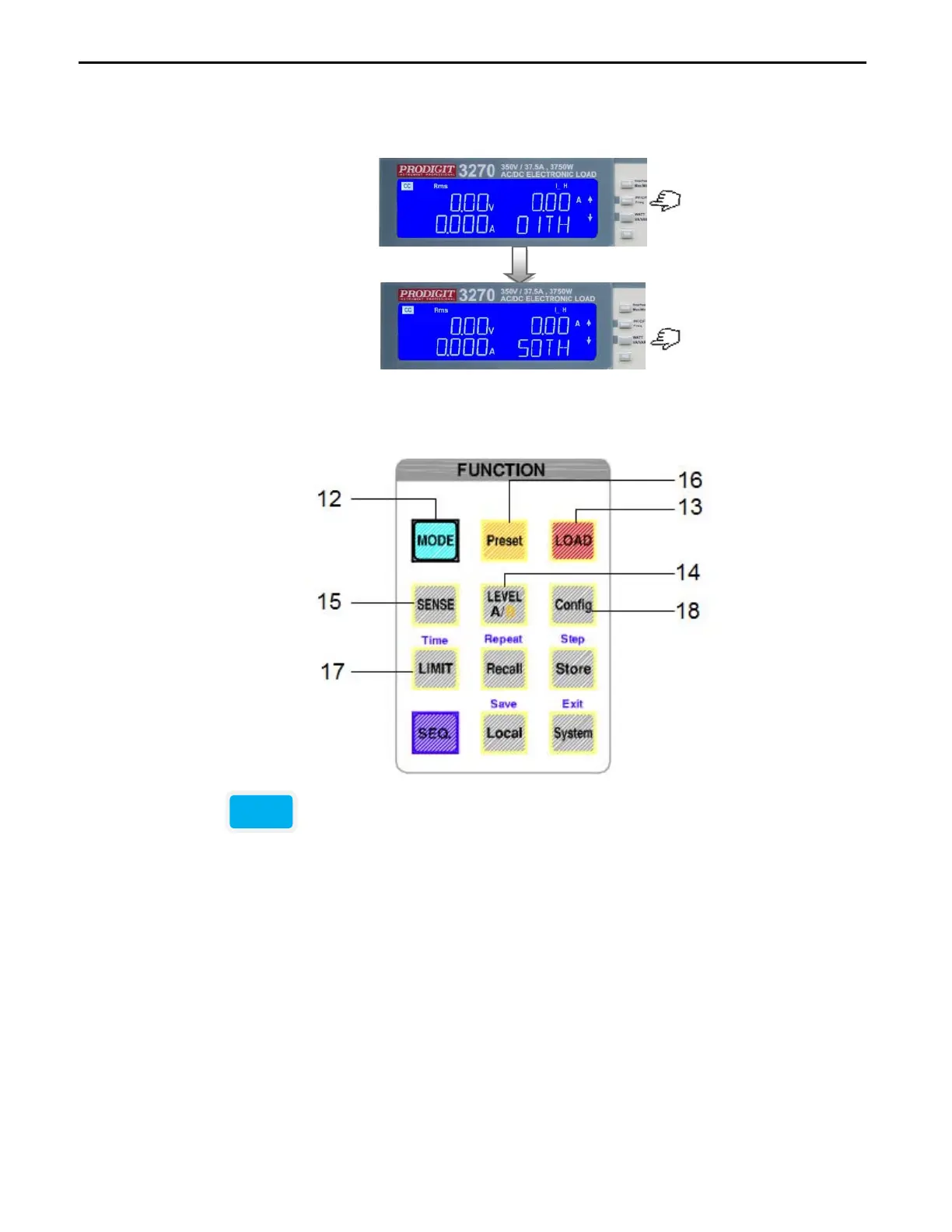

• In I_H operating modes, these can be selected in turn by pressing the
“PF/CF/FREQ” key and WATT/VA/VAR Key to adjust, the setting range is 01TH
~ 50TH.
• Function key description:
3.3.12. and CC, LIN, CR, CP, CV Indicator
There are five operating modes. These can be selected in turn by pressing the
"MODE" key on the 3270 series AC/DC Electronic Load module. The sequence is:
 (CC) Constant Current
 (LIN) Linear Constant Current
 (CR) Constant Resistance
 (CP) Constant Power
 (CV) Constant Voltage
The appropriate LCD will illuminate according to the operating mode is selected.
MODE
