3270 Series Operation Manual 69

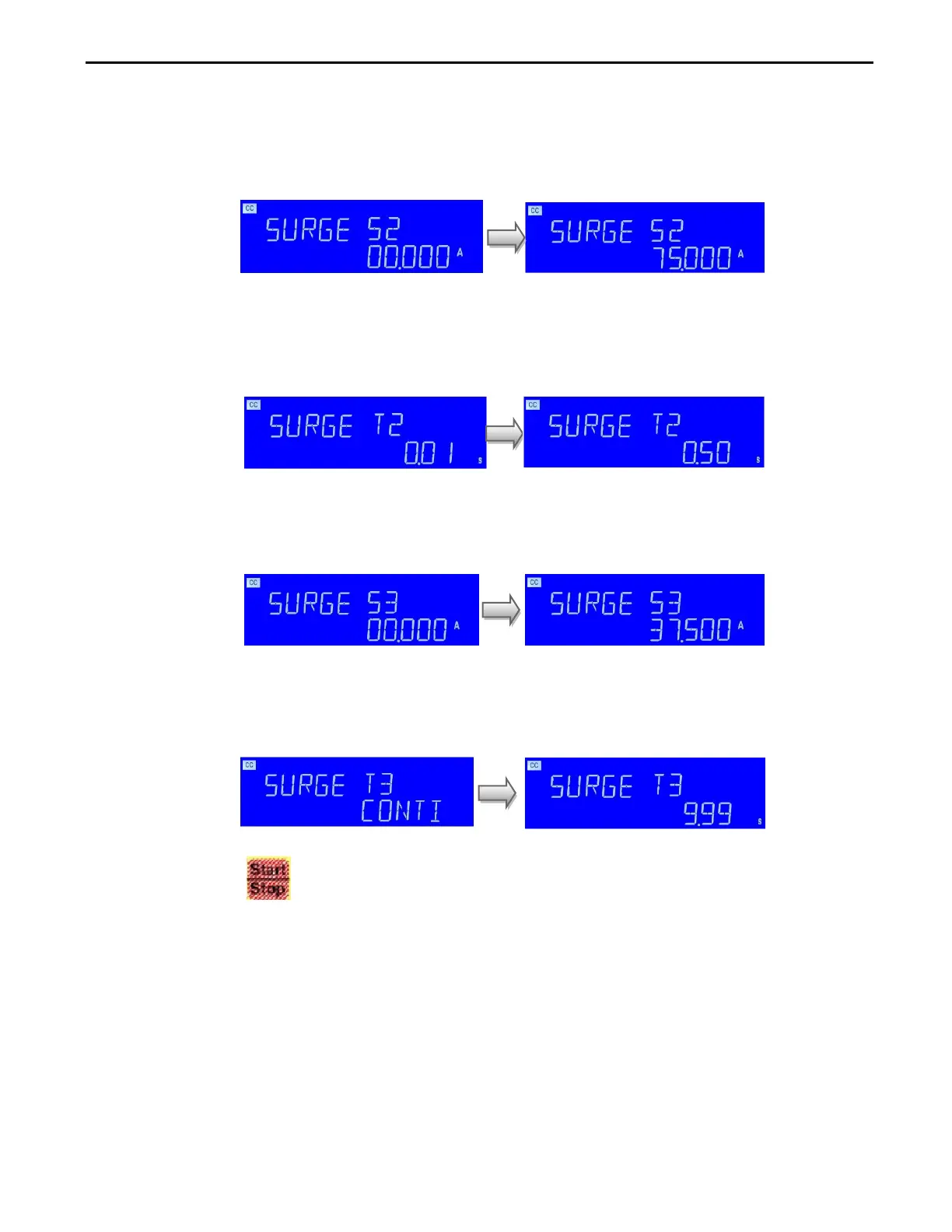

SURGE S2 : setting the SURGE S2, the Left 5 digit monitor display the
“SURGE” ,the right upper 5 digit monitor display the “S2”, and right lower monitor
display setting value, the unit is "A”, use the knob and button to set the second
surge current value, the setting range from 0.000A to the 75.000A.
SURGE T2 : setting the SURGE T2, the Left 5 digit monitor display the
“SURGE” ,the right upper 5 digit monitor display the “T2”, and right lower monitor
display setting value, the unit is "S", use the knob and button to set the second
surge current time value, the setting range from 0.01s to the 0.50s.
SURGE S3 : setting the SURGE S3, the Left 5 digit monitor display the
“SURGE” ,the right upper 5 digit monitor display the “S3”, and right lower monitor
display setting value, the unit is "A", use the knob and button to set the Third surge
current value, the setting range from 0.000A to the 37.500A.
SURGE T3 : setting the SURGE T3, the Left 5 digit monitor display the “SURGE” ,
the right upper 5 digit monitor display the “T3”, and right lower monitor display
setting value, the unit is "S", use the knob and button to set the third surge current
time value, the setting range from CONTI to the 9.99s.
3.3.24. key
The red START/STOP key is used in conjunction with the SHORT, OCP, OPP,
Non-L, NL+CR, FUSE, BATT, TRANS test functions. It is used to START a test
according to the set parameters or to STOP a test before PASS or FAIL is signaled.
Please refer to the preceding sections for more information on the SHORT, OCP,
OPP, Non-L, NL+CR, FUSE, BATT, TRANS INRUS, SURGE tests.
