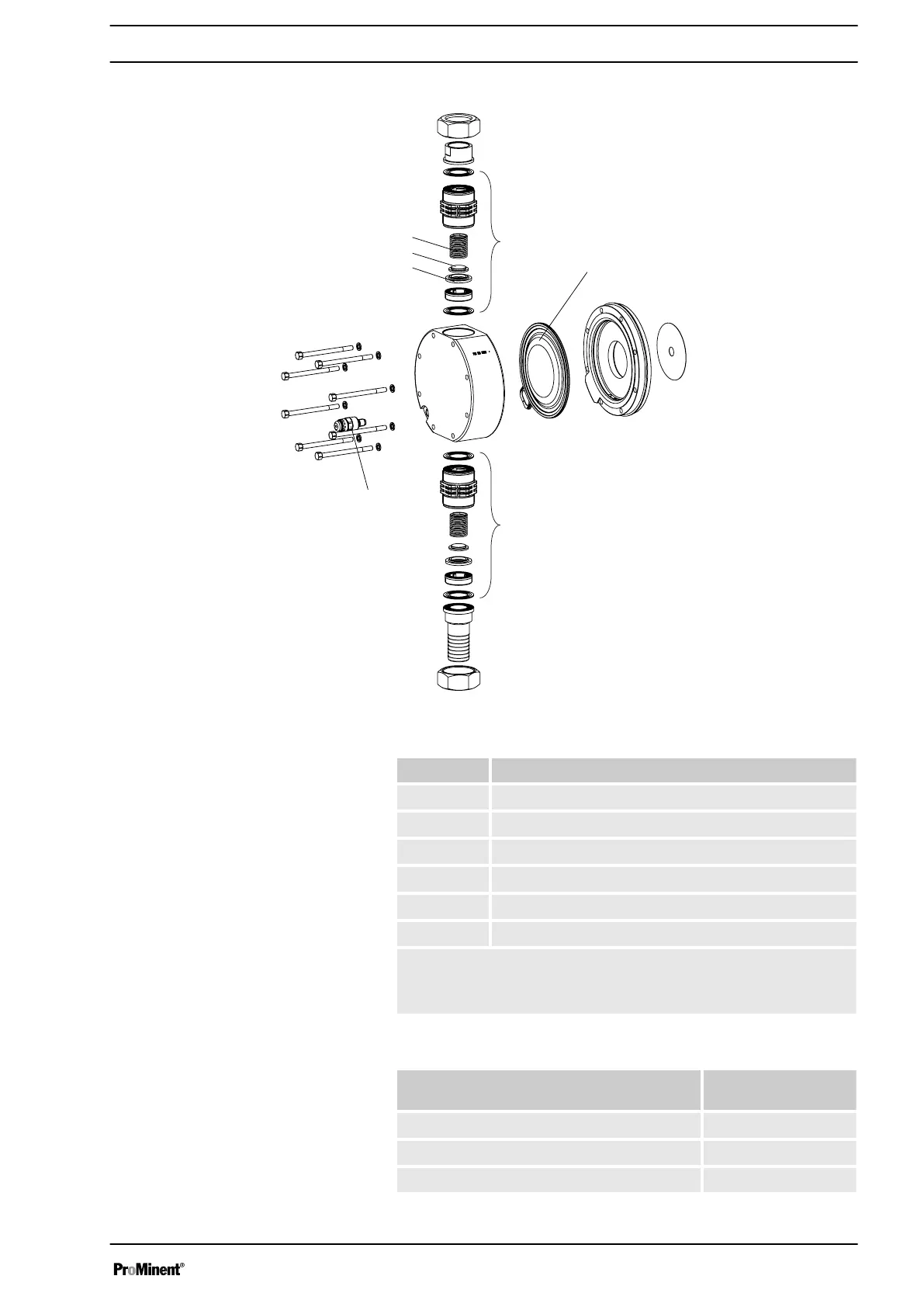

Fig. 49: Liquid end for Sigma/ 3 1000 SST
Pos. Description
1 Spring *
2 Ball
3 Ball seat
4 Diaphragm rupture sensor, optical *
5 Valve *
6 Multi-layer diaphragm
The items listed are included in the spare parts kit.
* Special accessories (not included in the spare parts kit). Technical
changes reserved.
Tab. 21: Order no. for liquid end for Sigma/ , 1000-DN 32 SST
Spare part Type 070410, 070580,
040830
Liquid end 1029587
Spare parts kit 1034682
Spare parts kit with 2 valves 1034683
Liquid end for Sigma/ 3 1000 SST
Liquid ends for Sigma/ 3
