19 Liquid ends for Sigma/ 3
61_05_103_00_67_03
P_SI_0082_SW
1
5
4
5
6
2
3

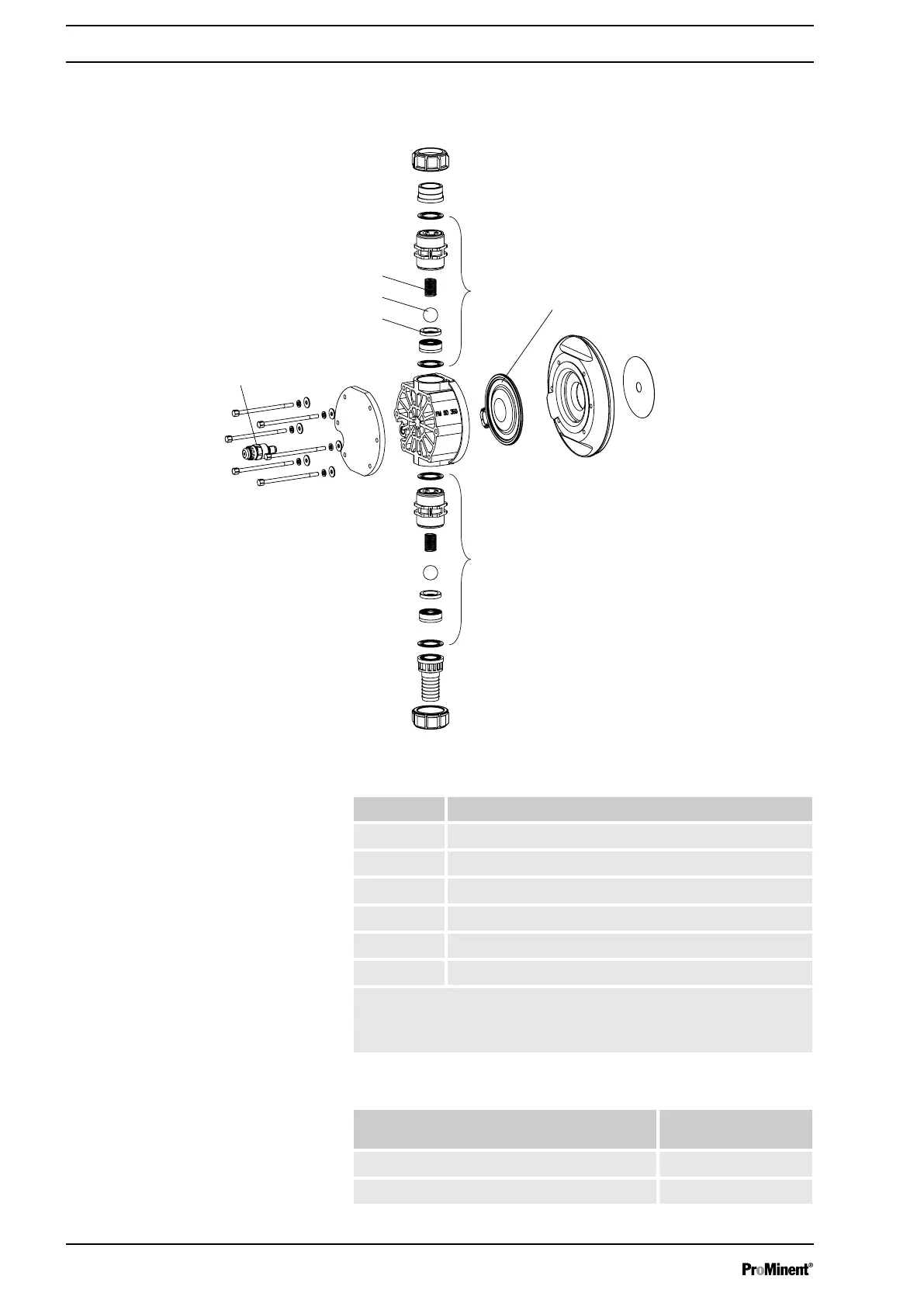

Fig. 44: Liquid end for Sigma/ 3 330 PVT
Pos. Description
1 Spring *
2 Ball
3 Ball seat
4 Diaphragm rupture sensor, optical *
5 Valve
6 Multi-layer diaphragm
The items listed are included in the spare parts kit.
* Special accessories (not included in the spare parts kit). Technical
changes reserved.
Tab. 16: Order no. for liquid end for Sigma/ 3, 330-DN 25 PVT
Spare part Type 120145, 120190,
120270
Liquid end 1029585
Spare parts kit 1035951
Liquid end for Sigma/ 3 330 PVT
Liquid ends for Sigma/ 3
96
