Overview of equipment and control elements
P_SI_0191_SW
1
2
5
6
7
3
4

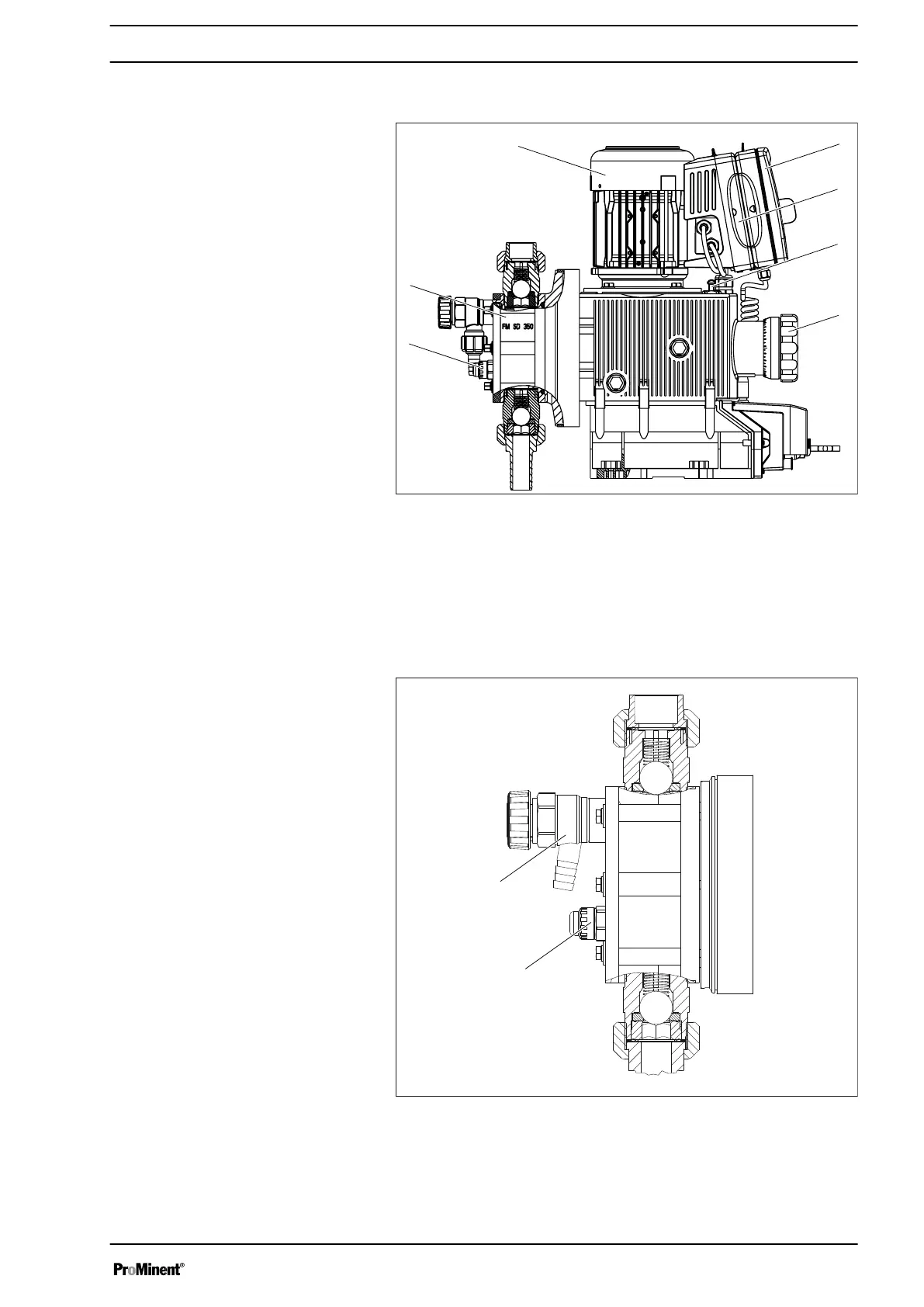

Fig. 3: Overview of Sigma X - S3Cb equipment
1
HMI control unit
2
Frequency converter
3
Drive unit
4
Stroke length adjustment wheel
5
Drive motor
6
Liquid end
7
Diaphragm rupture sensor
1
2
P_SI_0088_SW_2
Fig. 4: Sigma control elements
1
Bleed valve (optional)
2
Diaphragm rupture sensor (visual)
Overview of equipment
Control elements
Overview of equipment and control elements
13
12
14
