ProMinent S3Cb User Manual

Only with the "Physiologically safe" design:
WARNING!
Product can be dangerously contaminated
Only use the spare parts from the "Physiologically safe"
spare parts kits.
Personnel:
n
Technical personnel
CAUTION!
Warning of personal injury and material damage
Feed chemical may escape from the liquid end, for
example, if ball valves not repaired correctly.
– Only use new components which fit your valve -
both in terms of shape and chemical resistance!
–
Note the flow direction of the discharge and suction
connectors when fitting the valve.
CAUTION!
Warning of feed chemical spraying around
PTFE seals, which have already been used / com‐
pressed, can no longer reliably seal a hydraulic connec‐
tion.
– New, unused PTFE seals must always be used.
1
2
3
4
5
P_SI_0013_SW

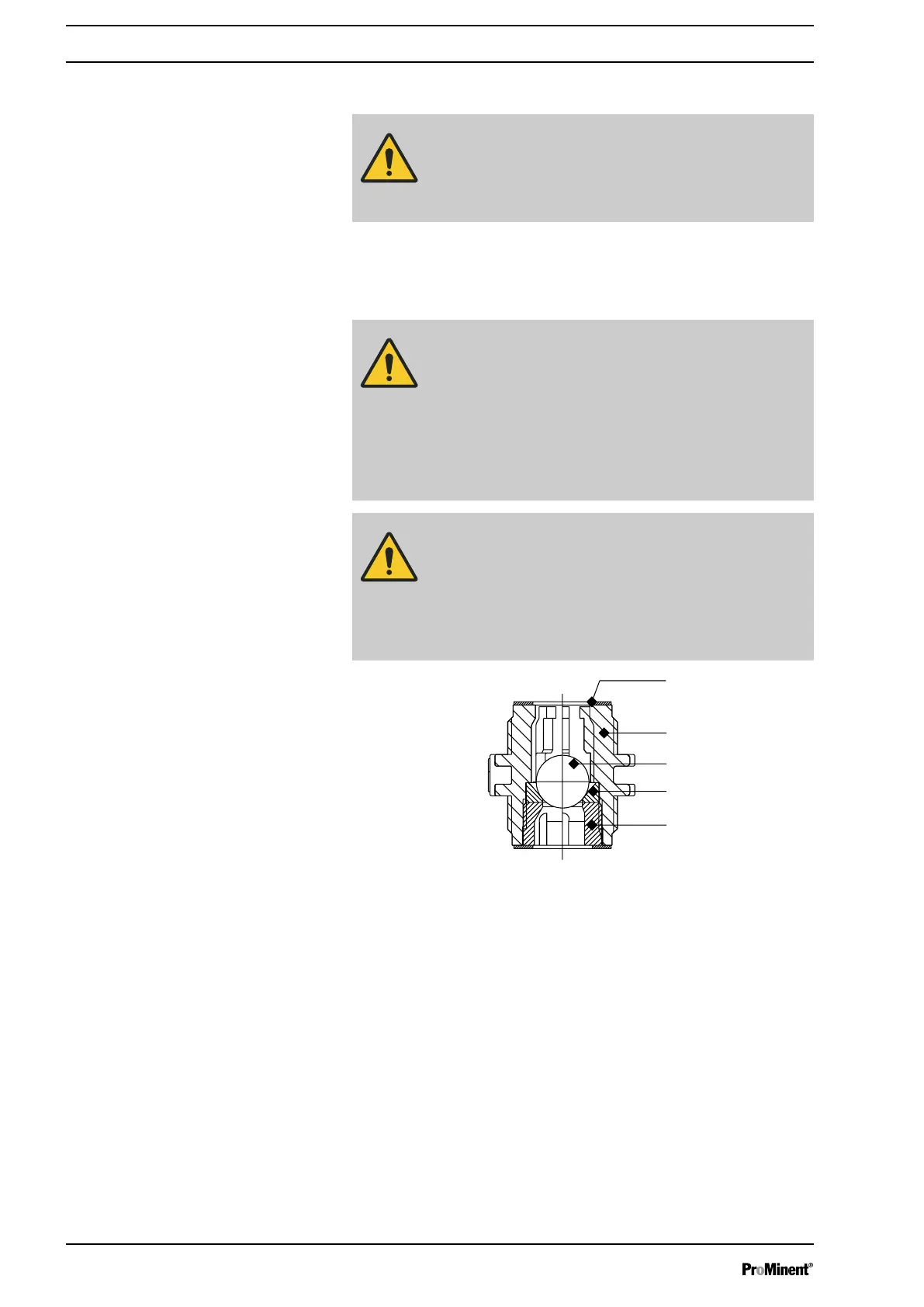

Fig. 38: Simple cross-section through ball valve
1 Flat seal
2 Valve body
3 Valve ball
4 Valve seat
5 Valve cap
Repairing ball valves
Carrying out repairs
72

ProMinent S3Cb Specifications

General

Power consumption	See specific model data sheet
Protection class	IP65
Housing Material	PP
Diaphragm Material	PTFE
Valve Material	Ceramic
Relative Humidity	Up to 95% non-condensing
Materials in contact with the medium	Ceramic, PTFE
Power Supply	230 V AC, 50/60 Hz
