Sigma X Control type – Sigma/ 3 - S3Cb
P_SI_0183_SW

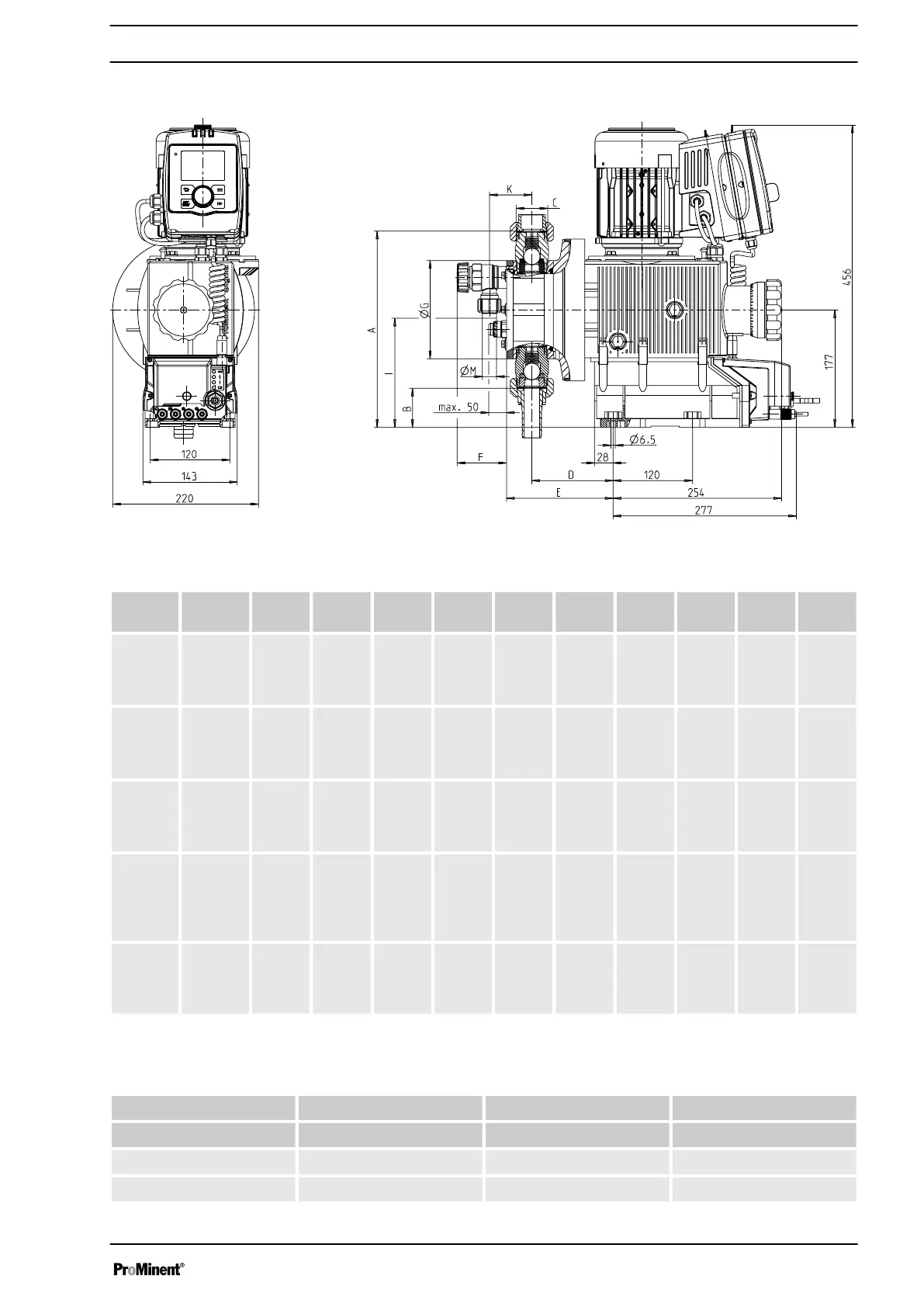

Fig. 43: Representation is not strictly binding - dimensions in mm
Type Connec‐
tion
A B C D E F ØG I1 * I2 * K
120145,
120190,
120270
PVT
DN 25 296 59 G1 1/2
M
123 161 75 156 140 166 64
120145,
120190,
120270
SST
DN 25 296 60 G1 1/2
M
123 153 88 162 147 - 60
070410,
070580,
040830
PVT
DN 32 327 29 G2 M 129 175 112 206 109 160 85
070410,
070580,
040830
PPT,
PCT
DN 32 327 29 G2 M 129 175 112 217 109 160 85
070410,
070580,
040830
SST
DN 32 330 26 G2 M 129 162 120 217 146 - 70
* I1: Hose nozzle; I2: Insert
Tab. 15: Dimensions M - Bleed valve
Union nut + hose nozzle Union nut + insert Standard
ØM ØM M
DN10-PVA/PVE 16 21.4 G3/4 M
DN10-SSA/SSE 16 - G3/4 M
Dimensional drawings
93
