Promise Technology Vess A6600 - I Nstalling or Removing the Security Cover

Vess A6800 installing and removing secure cover

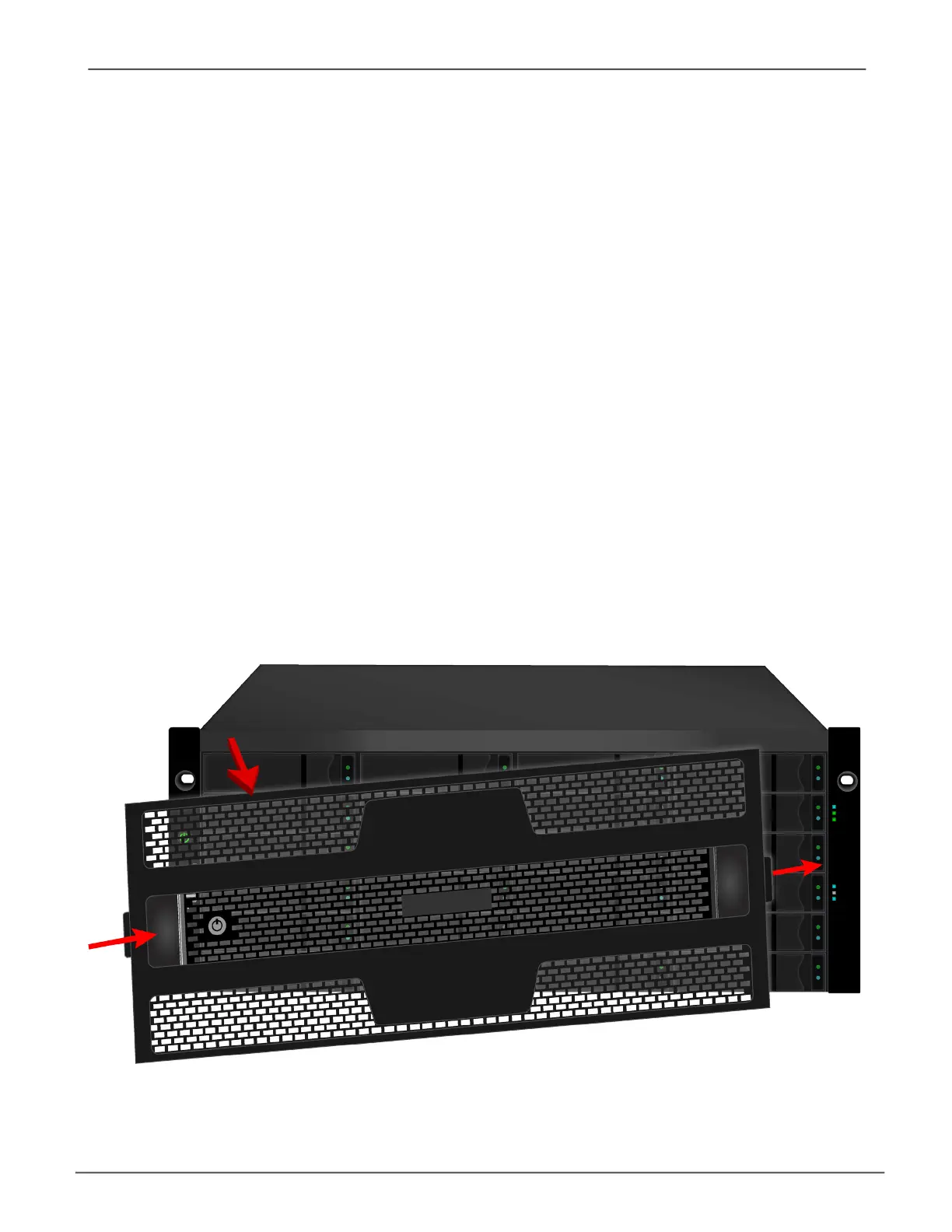

inStalling or reMoving tHe Security cover
The secure cover hardware is operated in the same fashion on the Vess A6000 models.
To attach the secure cover:
1. Make sure the lock is in the unlocked position. To unlock, insert the key into the lock and turn counter
clockwise.
2. Insert the tab on the right side of the cover into the slot receptacle on the right handle.
3. Place the cover in position and push in the latch release (to the left of the keyhole).
4. Push the cover into position so that the tab on the right side inserts into the receptacle on the right handle
when releasing the latch.
5. Insert the key and turn clockwise to lock.
Toremovethecover,unlockit,pressthelatchreleaseontheleftsideandpulltheleftendoutrst,holdingit
with both hands.
18
IntroductionVess A6000 Series Storage Appliance for Video Surveillance
