Note
Please refer to the Quick Installation Guide included with the mounting rails for
more detailed rack installation instructions.
Mounting encloSure in a rack
To install the Vess A6000 into a rack with the supplied mounting rails:
1. Checkthetofthemountingrailsinyourracksystem.
2. Adjust the length of the mounting rails as needed.
• The rear rail slides inside the front rail. The rail halves are riveted together and use no adjustment screws.
• The front-left and front-right mounting rail ends are labeled.
• Be sure the front rail support is on the bottom facing inward
• All rail ends, front and rear, attach at the outside of the rack posts.
• The guide pins at the rail ends align with the holes in the rack posts.
• Usetheattachingscrewsandangenutsfromyourracksystem.Tightenthescrewsandnutsaccordingto
instructions for your rack system.

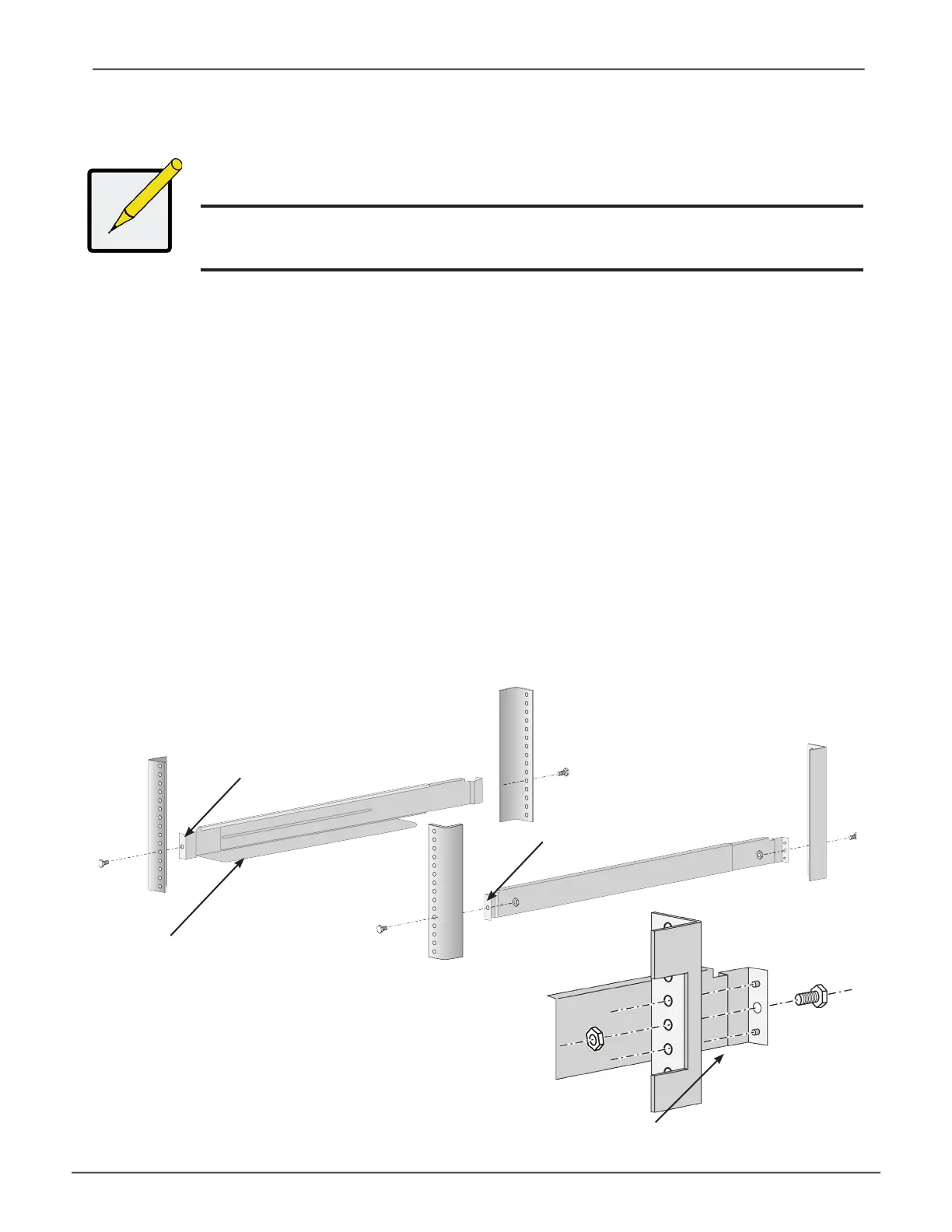

Support ange on the front
end of each rail
Front right label
Front left label
Guide pins on rails align with holes in the rack post
Installing the rails onto the rack
15
Promise Technology Product Manual
