PRS 500 E
Instructions for use
5069-0-8002
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 19 von 47
3.2 Emergency Stop Switches of the X-ray system
The PRS 500 E has the following emergency stop switches, which can be used to bring the device to an
immediate standstill and disconnect it from the power supply.

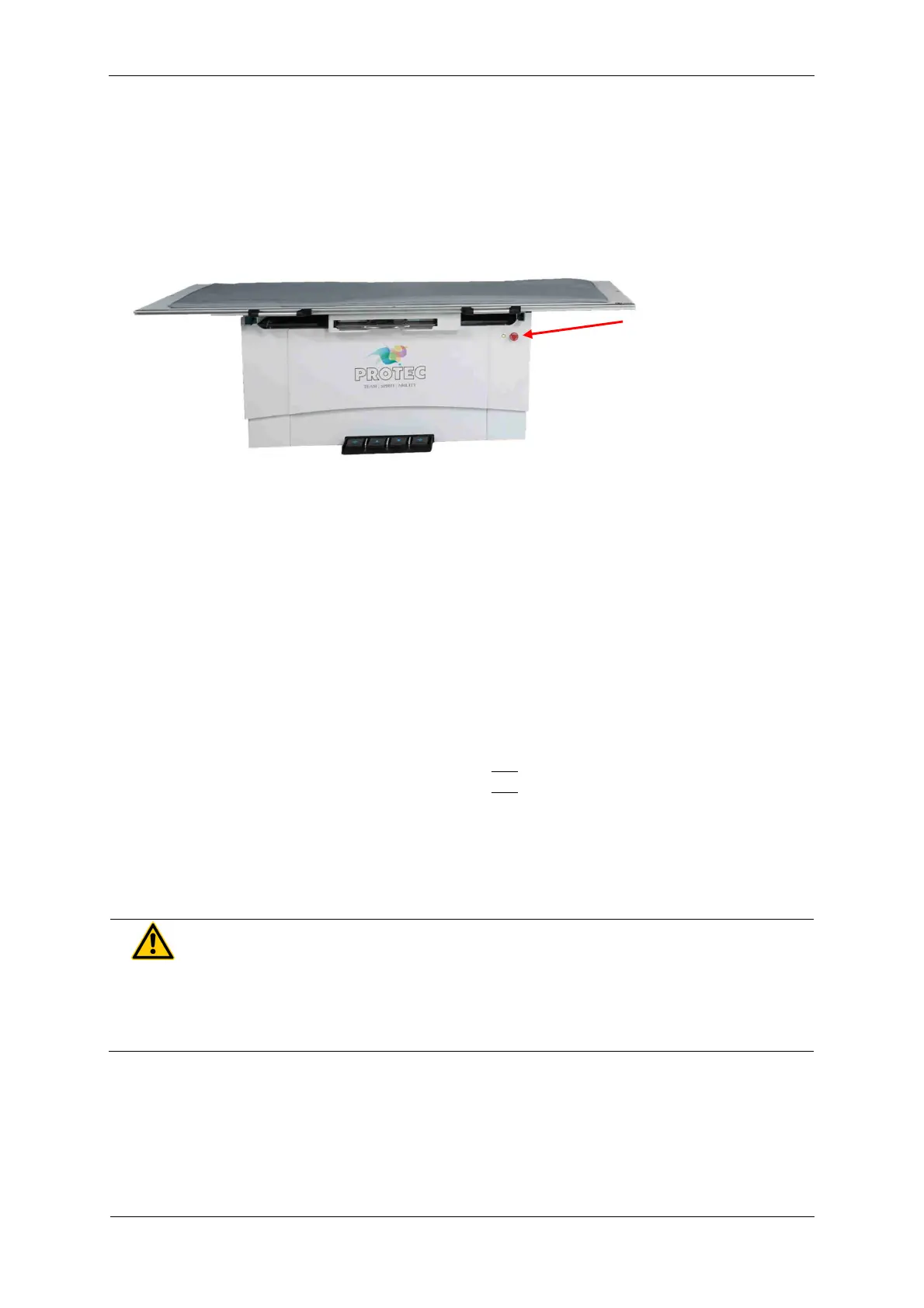

3.2.1 X-ray System Table Emergency Stop Switch
The PROGNOST E is equipped with an emergency stop switch, which can be used to bring the unit to
an immediate standstill and disconnect it from the power supply.
3.2.2 Generator Emergency Stop Switch
For the switch position of the corresponding X-ray generator, please refer to the enclosed instructions
for use.
3.3 Control Elements and Display of PROGNOST E
Detailed information please find in the accompanying User Manual of the PROGNOST E.
3.4 Control Elements and Display of PROGNOST SH
3.4.1 PROGNOST SH
1 Angle indicator for adjusting the X-ray assembly
2 Brake release for horizontal movement of the X-ray floor stand
3 Brake release for rotational movement of the X-ray unit around the horizontal support arm axis
4 Brake release for vertical movement of X-ray tube arm and horizontal movement of X-ray floor stand
5 Brake release for vertical movement of X-ray tube arm and horizontal movement of X-ray floor stand
6 Brake release for movement of X-ray tube assembly around the horizontal support arm axis
7 Brake release for vertical movement of X-ray tube arm
8 Option: Brake release for transversal movement of X-ray tube arm (+230mm)
9 Option: Status-LED orange (if LED is on: X-ray tube arm is not engaged)
10 Option: Status-LED red (if LED on: X-ray flor stand is not engaged)
WARNING!
If the red LED on the right membrane keypad lights up, the X-ray tube carrier
is not engaged! In this state no x-rays may be taken. The X-ray tube carrier
must first engage in one of the positions (0 / ± 90° / ± 180°)!
