Protec PRS 500 E - Foot Pedal

PRS 500 E Instructions for use
5069-0-8002
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 21 von 47

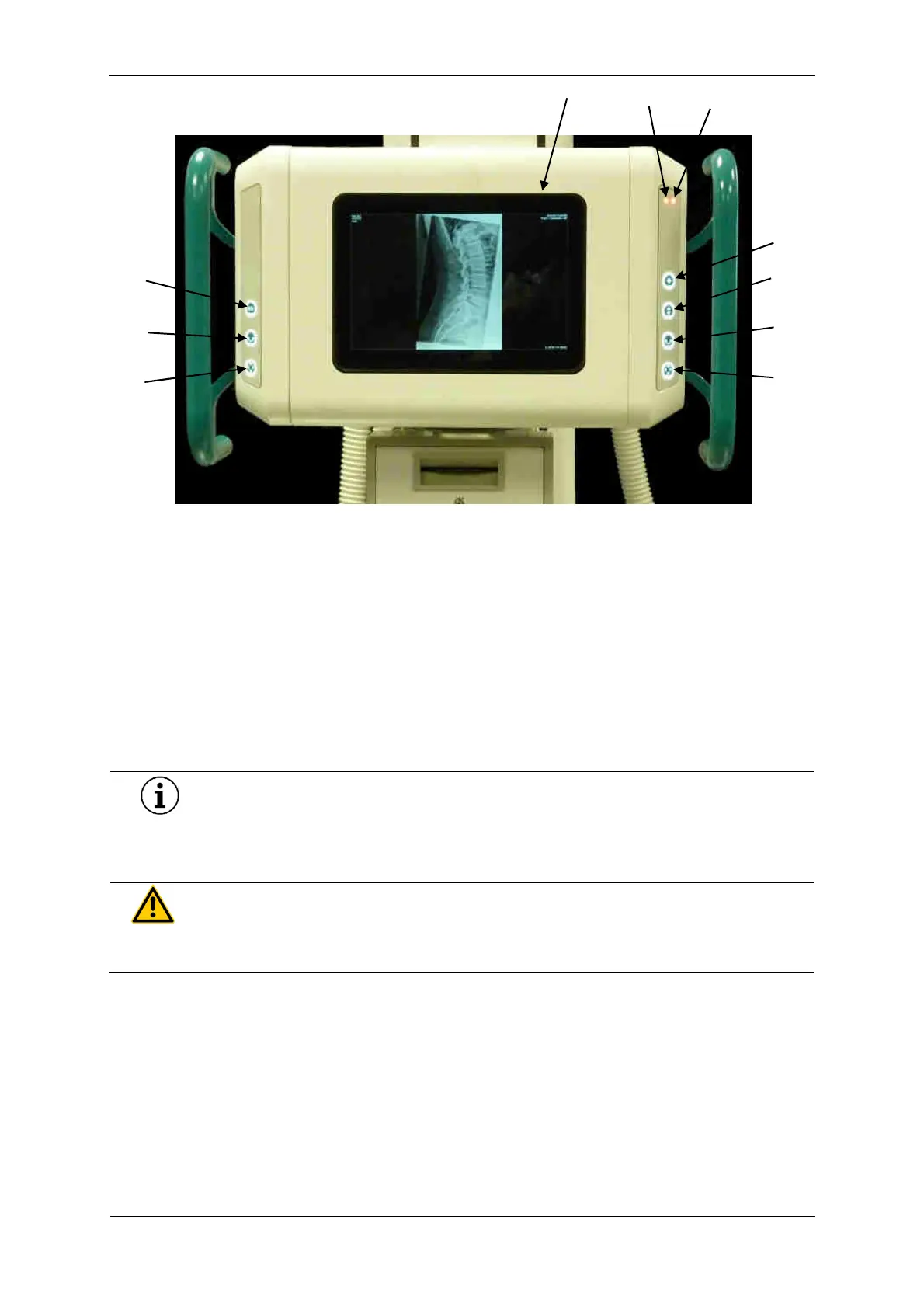

Operation is performed from the front (operating side) of the X-ray head.
In the case of encompassed handles, the electromagnetic locking of one or more movements can be
released by pressing the keys on the operating unit with the thumb, and the tube head can be moved
to the desired position.
3.4.3 Foot pedal
To unlock the X-ray tube carrier, the foot lever (see Illustration Pos.1) must be operated downwards.
Hold the foot lever in this position and turn the X-ray tube carrier a little in the desired direction. For
further rotation, the foot lever does not have to be operated anymore. The detent in the new position
centers itself.
NOTE
To rotate the X-ray column, the Buckywagen must be pushed out of the driver
bracket of the X-ray column.
WARNING!
There is an increased risk of injury if the X-ray tube carrier is not engaged!
1
2
3
4
7
6
5
8
9
10
