Protec PRS 500 E - Control Elements and Display of Collimator

PRS 500 E Instructions for use
5069-0-8002
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 22 von 47
Detailed information please find in the accompanying User Manual PROGNOST SH.

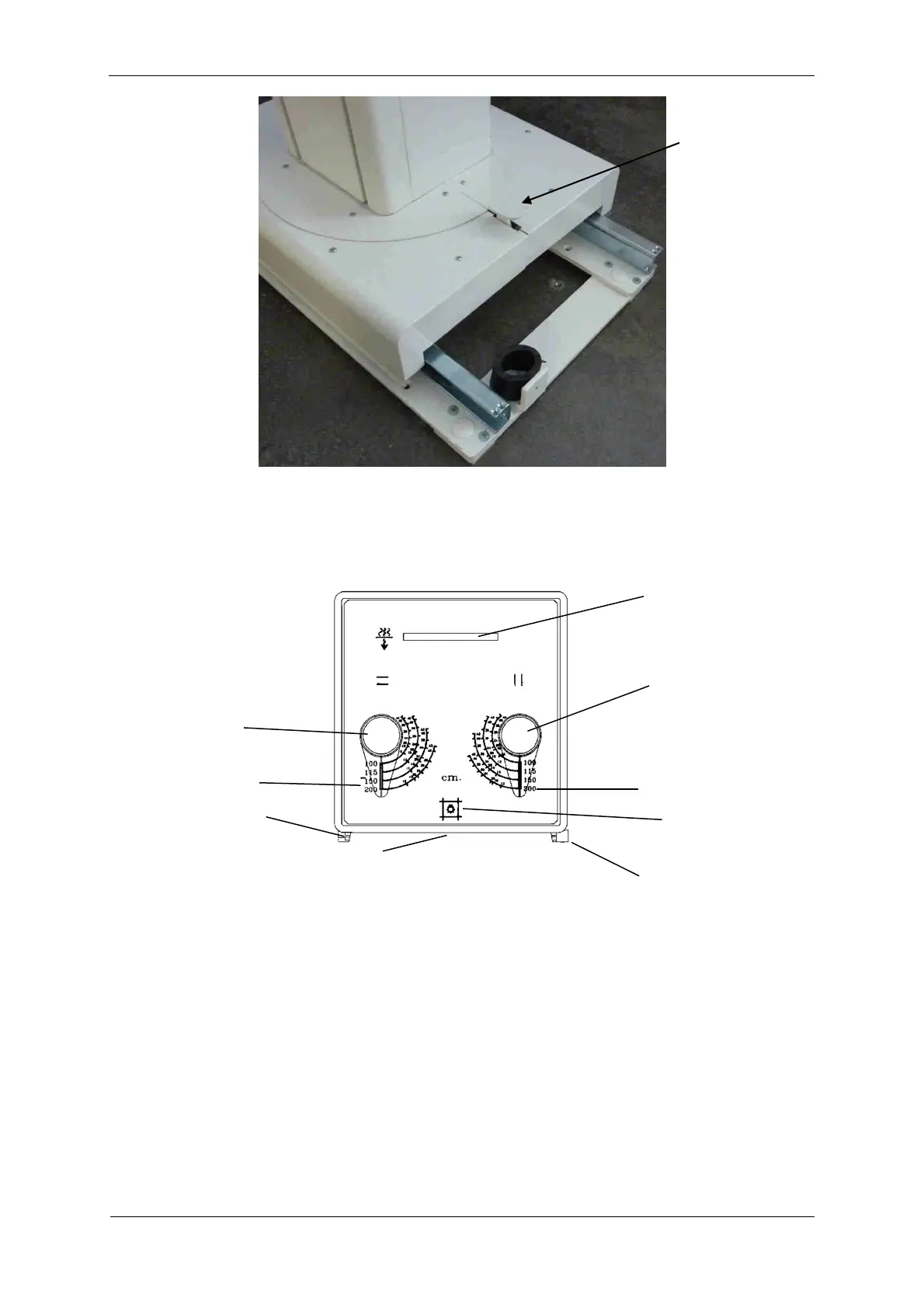

3.5 Control Elements and Display of collimator
Figure collimator, may differ depending on the system.
Pos. 1 -> Collimator adjustment control; allows for manual opening and closing of collimator shutters
(transversely to table top).
Pos. 2 -> Scales; indicate the opening of collimator shutters (transversely to table top).
Pos. 3 ->Accessory rails (can be used for measuring phantoms).
Pos. 4 -> Light resp. X-ray field; corresponding to opening of collimator shutters.
Pos. 5 -> Light centering device; allows centering of the X-ray tube assembly with the Bucky unit.
Pos. 6 –> Filter control for selection of additional filtration.
Pos. 7 -> Collimator adjustment control; allows for manual opening and closing of collimator shutter
(longitudinally to table top).
Pos. 8 -> Scales; indicate the opening of collimator shutters (longitudinally to table top).
Pos. 9 -> Collimator light switch; turns on collimator light.
Pos. 10 -> Measuring tape.
1
2
3
4/5
9
6
7
8
10
1
