Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

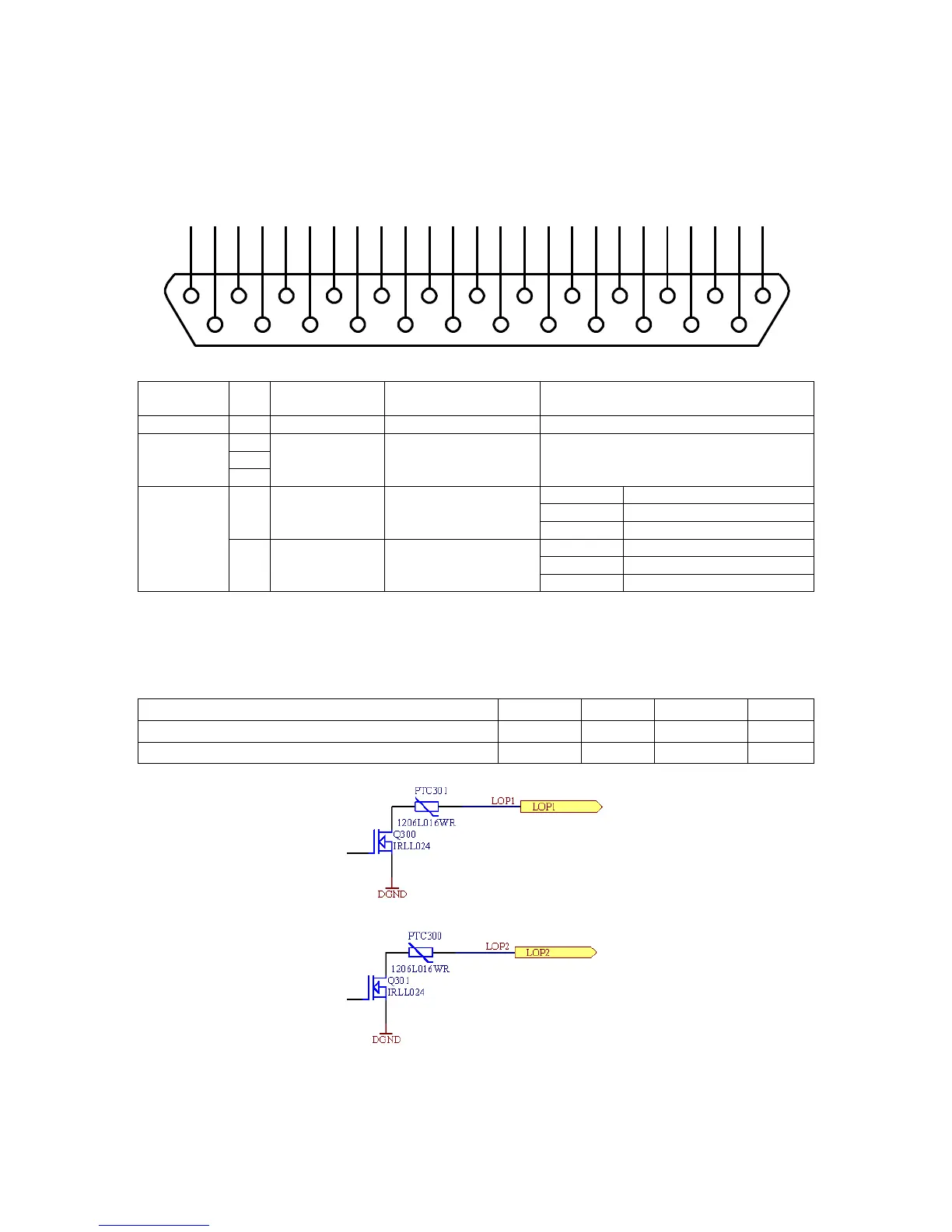

LOGIC OUTPUTS
Logic outputs connection
Two outputs are fitted as standard and may be accessed through the following pins:
Connector type: DB25 female (socket)
Functional
group
Pin
Designation
Description
Notes
Shield
S
Shield
Shield
Connect to cable and plug shields
Power
supply and
ground
2
DGND
Power supply and
signal ground (0V)
Floating (inactive) or pull-down to
DGND (active)
15
24
Logic
outputs
6
LOP1
Logic output 1
State
Output
Inactive
Floating
Active
Pulled down to DGND
7
LOP2
Logic output 2
State
Output
Inactive
Floating
Active
Pulled down to DGND
Logic outputs electrical specifications
 The logic outputs must NOT be used to directly drive high-current or inductive loads.
 It is recommended that the logic outputs are used to drive opto-isolated solid-state relays.
Specification
Minimum
Typical
Maximum
Units
Logic output to DGND voltage
+25
VDC
Current
0.1
A
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22 10 23 11 24 12 25 13
