Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

DATA LOGGING

The data logging function logs measurement data at regular time intervals to a .csv (comma

separated values) text file which may be opened using MS Excel and other spreadsheet software.

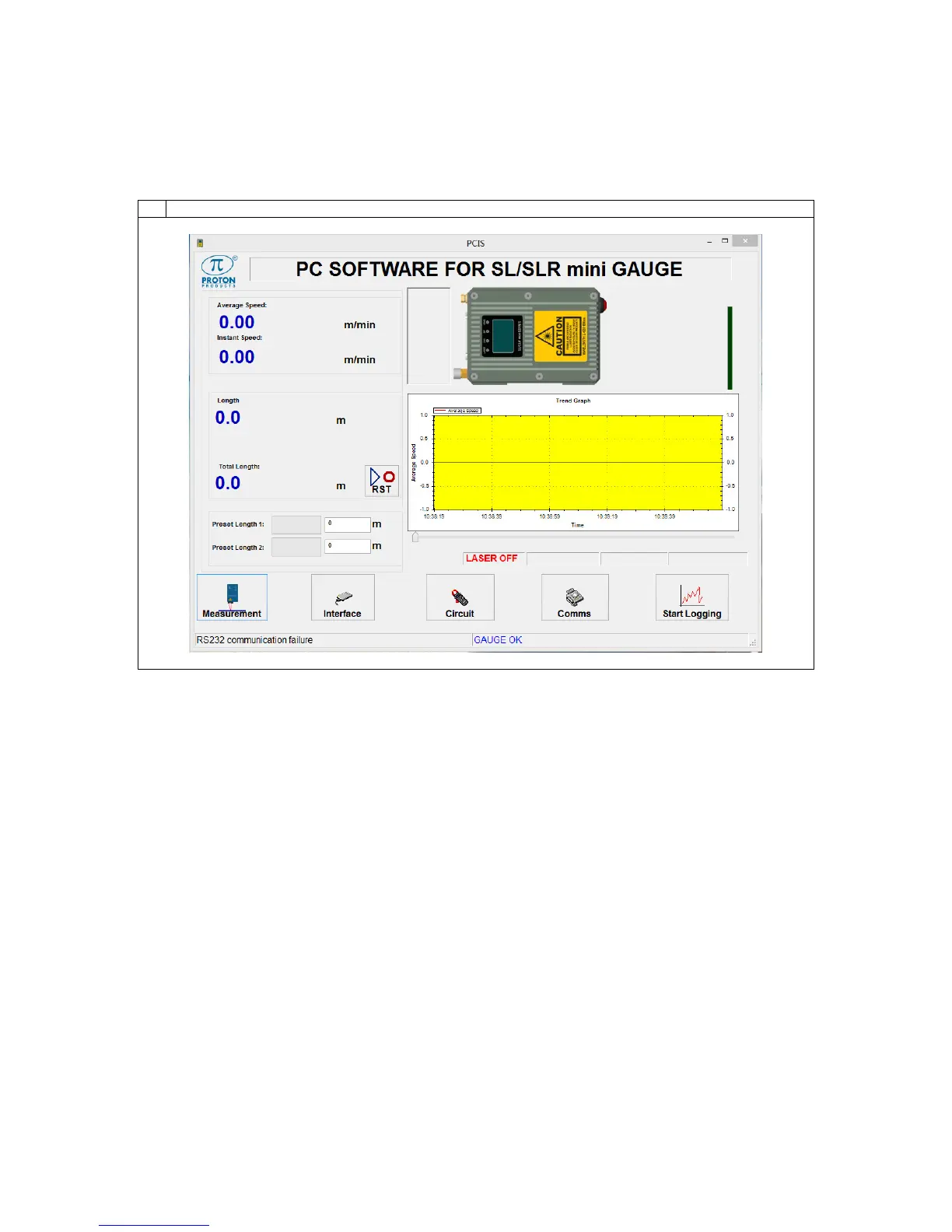

Click the “Start Logging” button on the main page:
