Proton SL mini 3060 - Connection and Software Start Up

Page 38 of 126
Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s
3

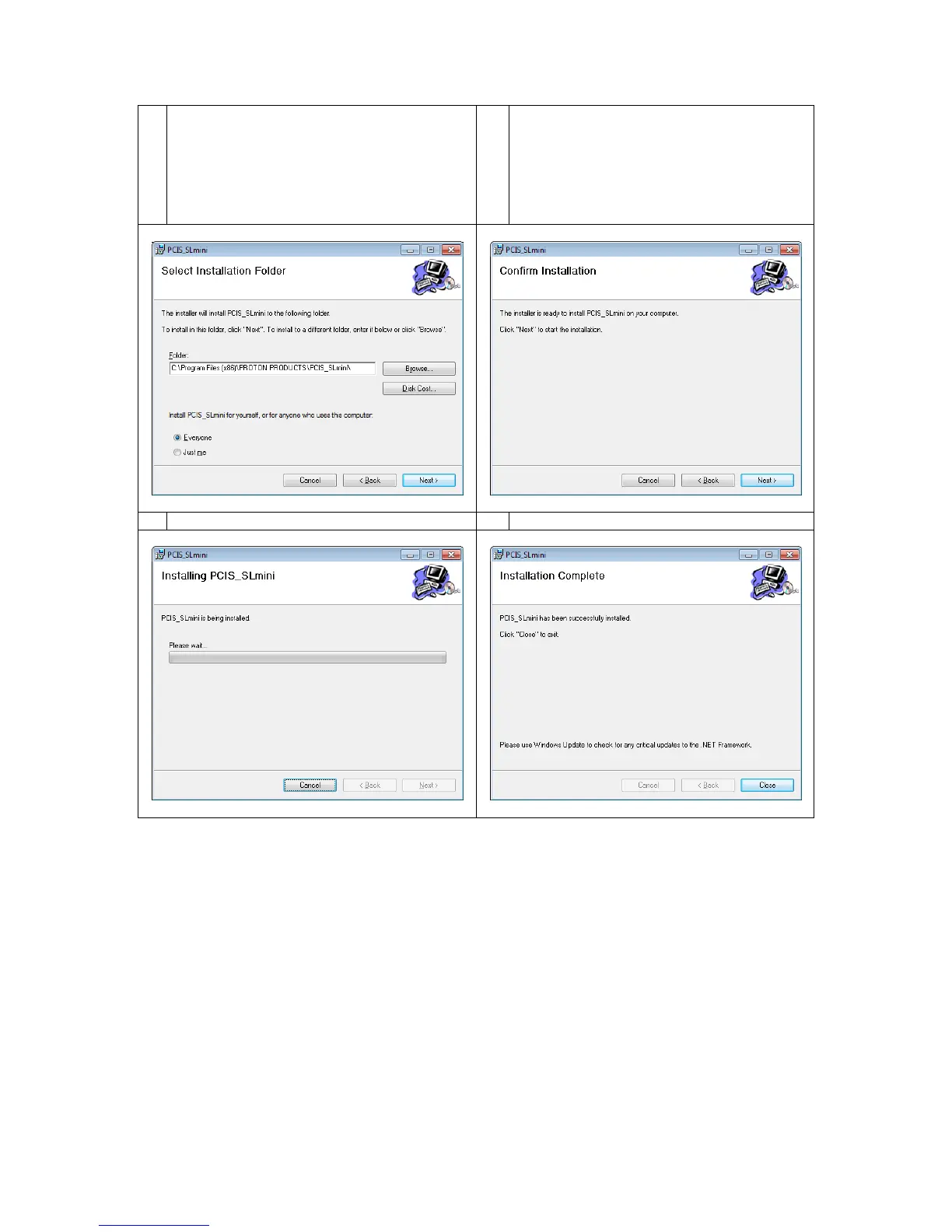

If required, click “Browse” to select an
alternative installation folder.
If required, click “Just me” to limit access to
this program to the current user.
Click “Next >” to proceed with the installation.
4
Click “Next >” to proceed with the
installation.
5
Wait for the installation to complete.
6
Click “Close” to finish installation.
CONNECTION AND SOFTWARE START UP
A PC running the PCiS_SLmini software may be connected to the gauge using any one of the
following communications interfaces:
 RS-232 (fitted as standard on all gauges).
 Ethernet (only available if NO other optional communications interface has been installed).
 EtherNet/IP (only available if the gauge has been installed with the optional EtherNet/IP
communications interface)
 PROFINET (only available if the gauge has been installed with the optional PROFINET
communications interface)
Note: For gauges communicating over either optional EtherNet/IP or PROFINET communications
interfaces, only input and output parameters DW0 to DW31 are visible to the PCiS software.
