Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s
Logic outputs configuration
Each individual logic output can be independently configured to pull-down to DGND upon any one of
the following conditions:

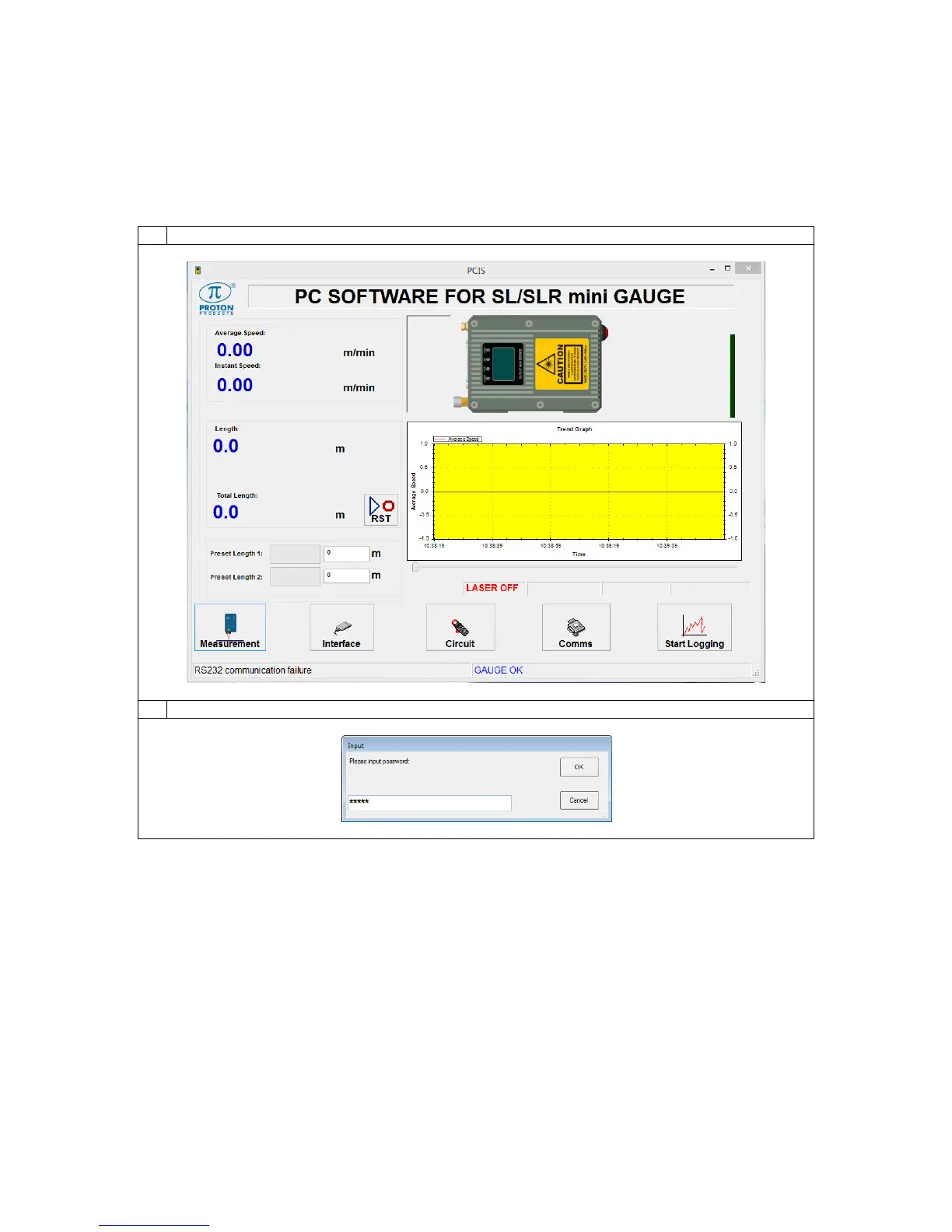

Configuration via the PCiS_SLmini software:
1
Click the “Interface” button on the main page:
2
When prompted, enter 64000 for the password and click the “OK” button:
