Page 93 of 126
Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

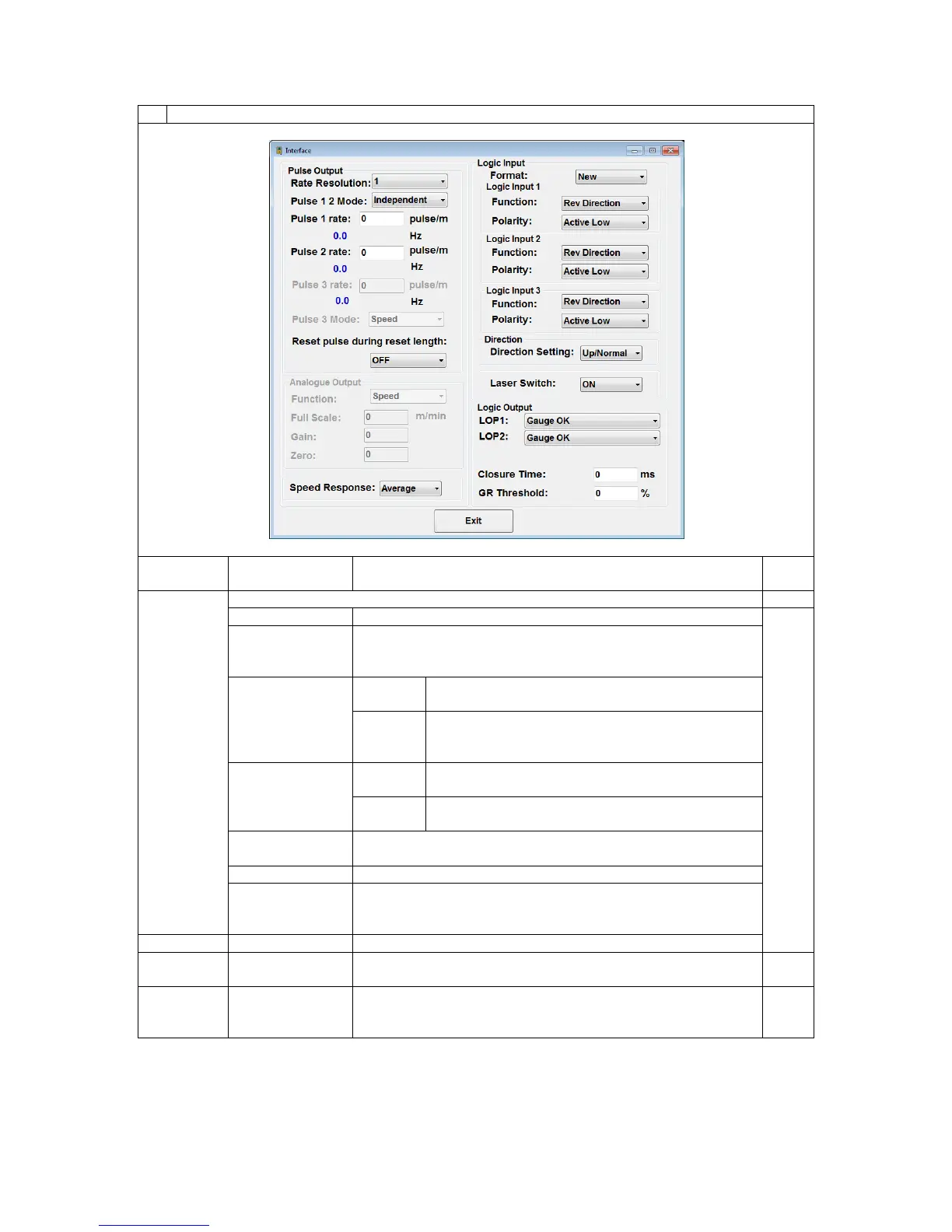

Configure the logic output interface as required and click the “Exit” button when complete:
Select the condition to pull-down the logic output:
There are no errors in the operation of the gauge.
The gauge is measuring speed.
Preset Length 1
/ Batch Length
The measured length exceeds “Preset Length 1”.
The measured length equals the “Batch Length”
(the logic output is pulled down momentarily for
the duration of the “Closure Time” setting below).
Preset Length 2
/ Batch Number
The measured length exceeds “Preset Length β”.
The number of measured batch lengths is equal
to or greater than the “Batch Number”.
The “Good Readings” percentage exceeds the “GR
Threshold” set below.
An object has been detected by the gauge.
The gauge temperature has exceeded its safe operating limit
of 45°C (this output may be used to activate external cooling
systems).
Set the minimum pull-down time (in milliseconds) for any
logic outputs configured for the “Batch Length” function.
Set the threshold above which the “Good Readings”
percentage will trigger pull-down of any logic output
configured to the “Good Reading” condition.
* factory-default values are shown in enclosed in [ ].
