Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

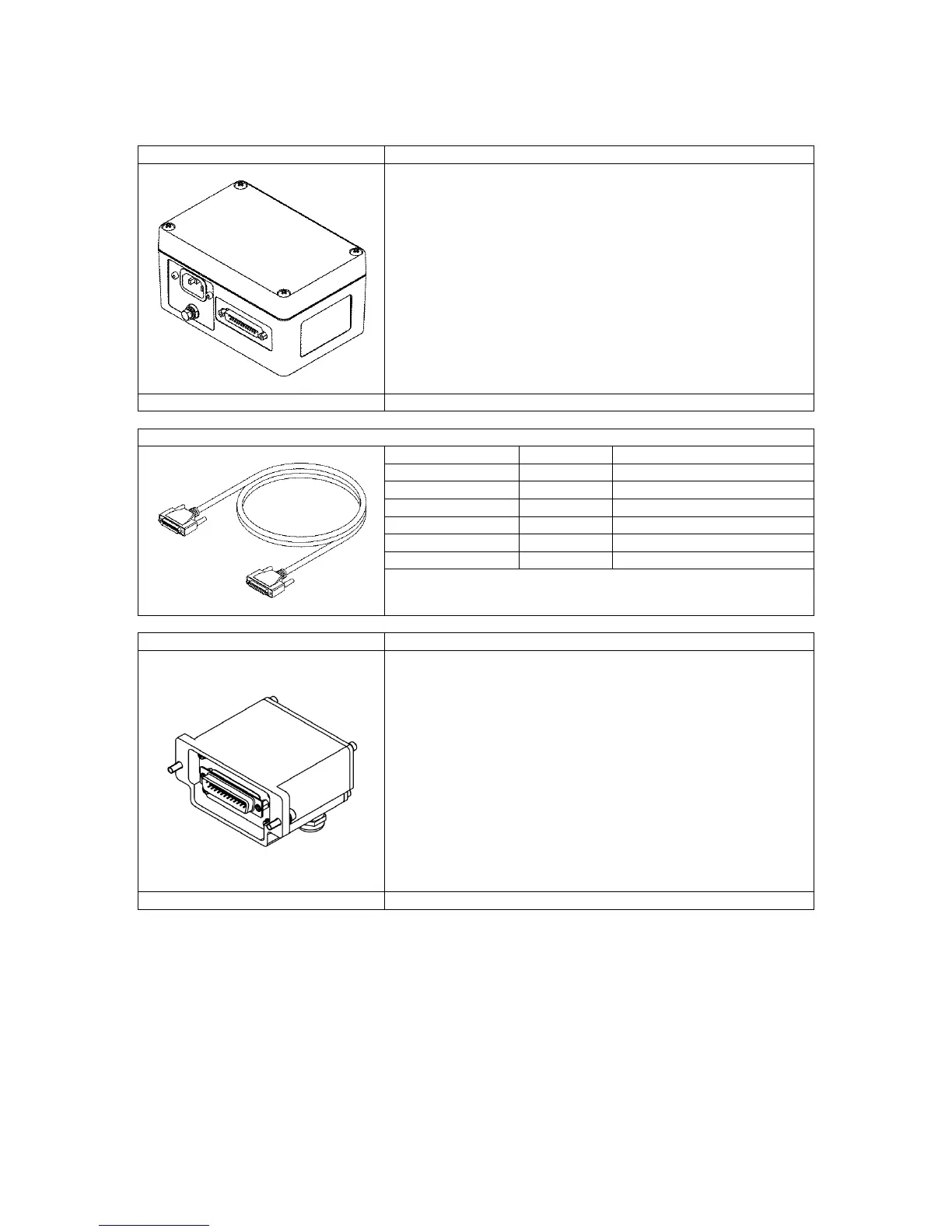

POWER
PSU-BOB mini
Power supply and mini break out box
Connects via the DBβ5 “INTERFACE” connector.
Supplies 24VDC electrical power to the gauge.
Provides screw terminal access to all electrical
interfaces.
Provides DB9 connectors for access to the CANbus,
RS232 and industrial bus communications interfaces.
Provides a RJ45 socket for the Ethernet interface.
End user cables are sealed with three cable glands.
Input voltage range: 90 260 VAC @ 45 65 Hz.
Select the required length of DB25 cable from below.
Proton part number
00050MC039
DB25 “INTERFACE” port to PSU-BOB mini cable
Name
Length / m
Proton part number
BOB 25DD_001M
1
00041CT001
BOB 25DD_003M
3
00041CT003
BOB 25DD_005M
5
00041CT005
BOB 25DD_010M
10
00041CT010
BOB 25DD_020M
20
00041CT020
BOB 25DD_030M
30
00041CT030
Terminal Expander
Gauge-mounted break-out box
Connects via the DB25 “INTERFACE” connector.
Provides DB9 connector access to the RS-232, CAN-
bus, Ethernet or optional industrial bus communications
ports.
Provides screw terminal access to all electrical input
and output pins.
End user cables are sealed with cable glands.
Proton part number
00050MC039
