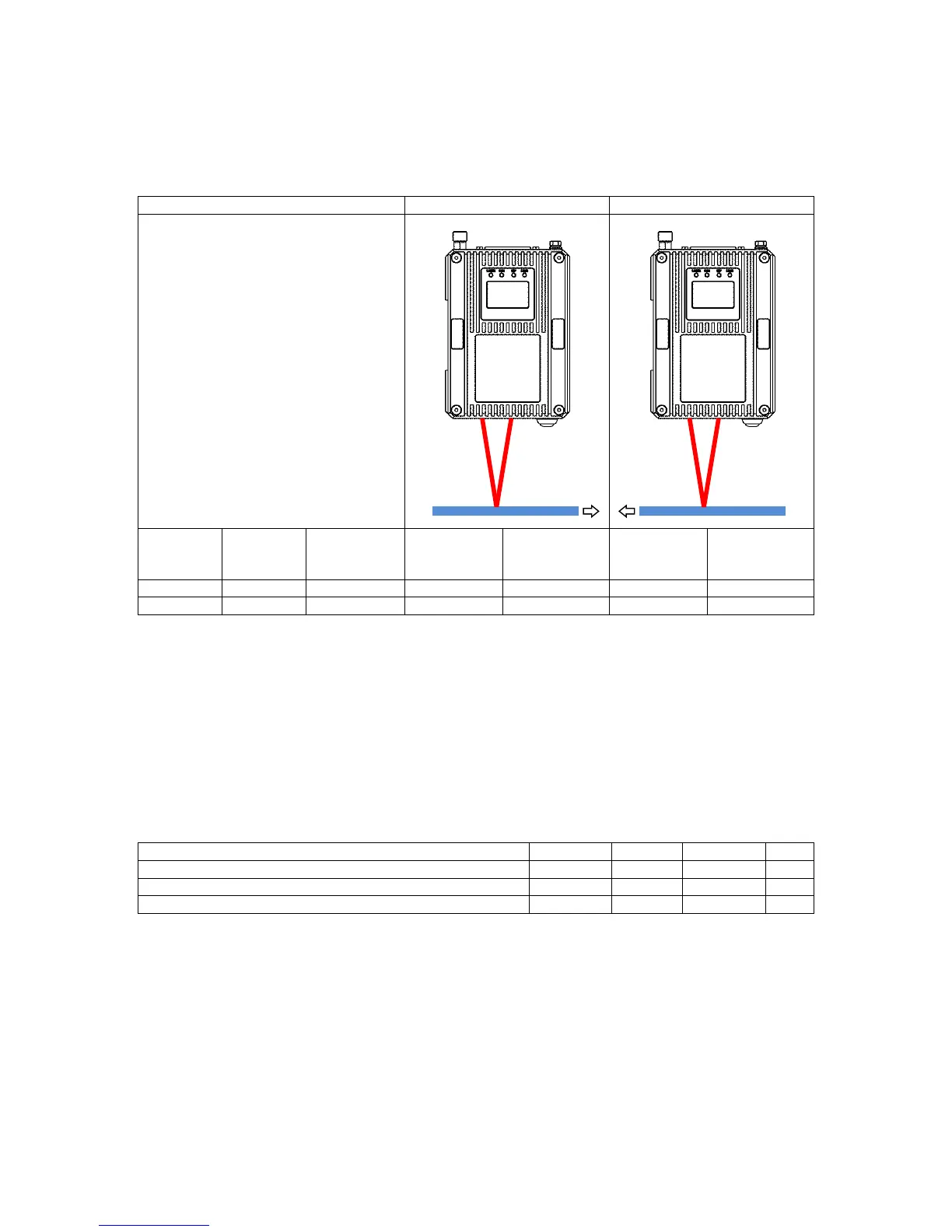

SLR MINI BIDIRECTIONAL SPEED AND LENGTH GAUGE
The bidirectional SLR mini speed and length may be used for production lines that exhibit bidirectional
motion and line stoppage.
SLR mini
Left to right
Right to left
Object motion direction
Count
Input
DW12.12
Rev
Direction
logic input
Speed
Length
Speed
Length
[Up]
[0]
Inactive
Negative
Decrementing
Positive
Incrementing
Down
1
Active
Positive
Incrementing
Negative
Decrementing
[ ] factory-default setting
Mechanical mounting
It is preferable for the gauge to be mounted in isolation from the machine or production line using a
precision base plate fitted to a mounting arm (if this is not possible then the gauge must be mounted
on rubber vibration isolation mounts).The mounting arm should be kept as short as possible to avoid
vibration or twisting.
 Please see the dimensional drawings for mounting hole locations.
 Three M5 tapped holes are provided in the base of the gauge; select appropriate length
screws which do not bottom out in these holes.
Specification
Minimum
Typical
Maximum
Unit
Mounting surface flatness (machined flat and even)
0.15
mm
M5 mounting hole depth (do not allow bolts to bottom out)
6
mm
M5 mounting bolt torque
6
Nm
