Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s

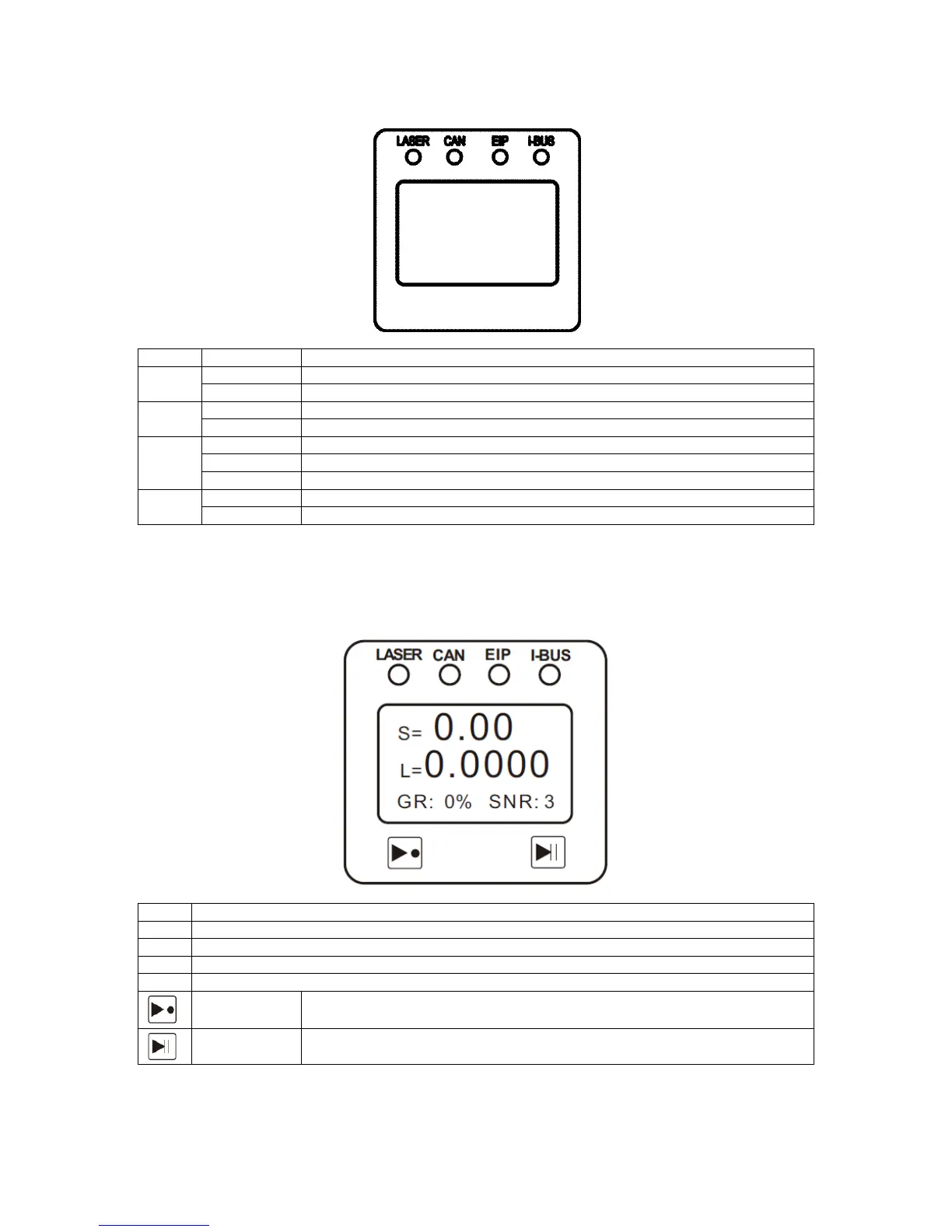

LED INDICATORS
Label
Condition
Description
LASER
Extinguished
No laser emission
Yellow
Laser emission
CAN
Extinguished
No CANbus connection
Green
CANbus connected
EIP
Extinguished
No Ethernet connection
Green
Ethernet connected
Flashing red
Ethernet data transmission
i-BUS
Extinguished
Optional DeviceNET / PROFIBUS / PROFINET / EtherNet/IP not connected
Green
Optional DeviceNET / PROFIBUS / PROFINET / EtherNet/IP connected
ON-GAUGE LCD DISPLAY
The SL mini and SLR mini gauges are fitted with a backlit, on-gauge LCD which displays the following
information:
Label
Description
S
Measured speed
L
Measured length
GR
Good Readings percentage
SNR
Signal-to-Noise Ratio
Reset button
Press to reset the length to zero.
Pause button
Press to pause the speed measurement.
