Cable entry
There are 4 cable gland knockouts on the base of the wall mount Ultra 3
(1 x M16, 3 x M20) and 4 on the rear (4 x 18mm dia.) (PG11). Select which
ones you wish to use, and remove them by using a circular cutter, such as a
tank cutter. Take care not to damage the circuit board inside whilst
undertaking this. Do not use a hammer, as this may cause damage to the
enclosure.
It is recommended that you use suitable cable glands to ensure that the
ingress rating is maintained.
Fascia Mount

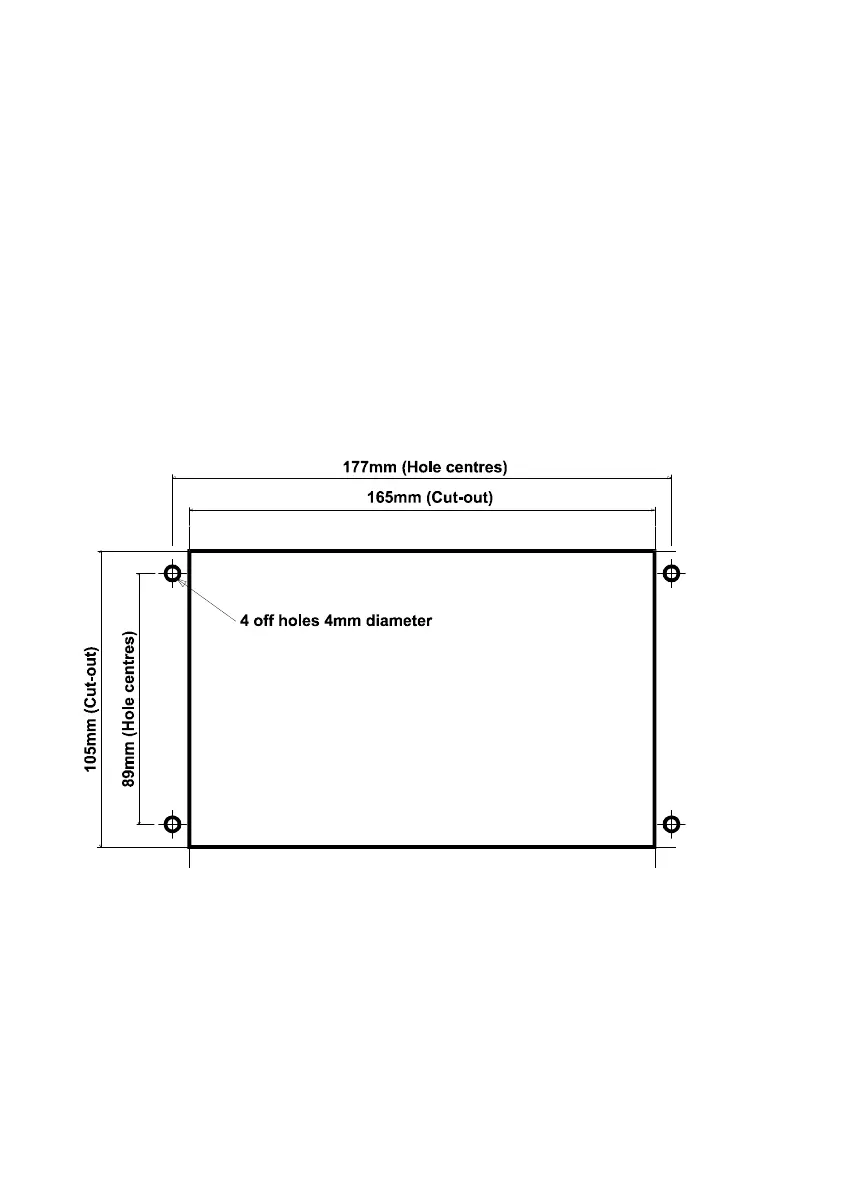

The dimensions of the wall fixing holes are as shown below:
