PULSAR MEASUREMENT
23

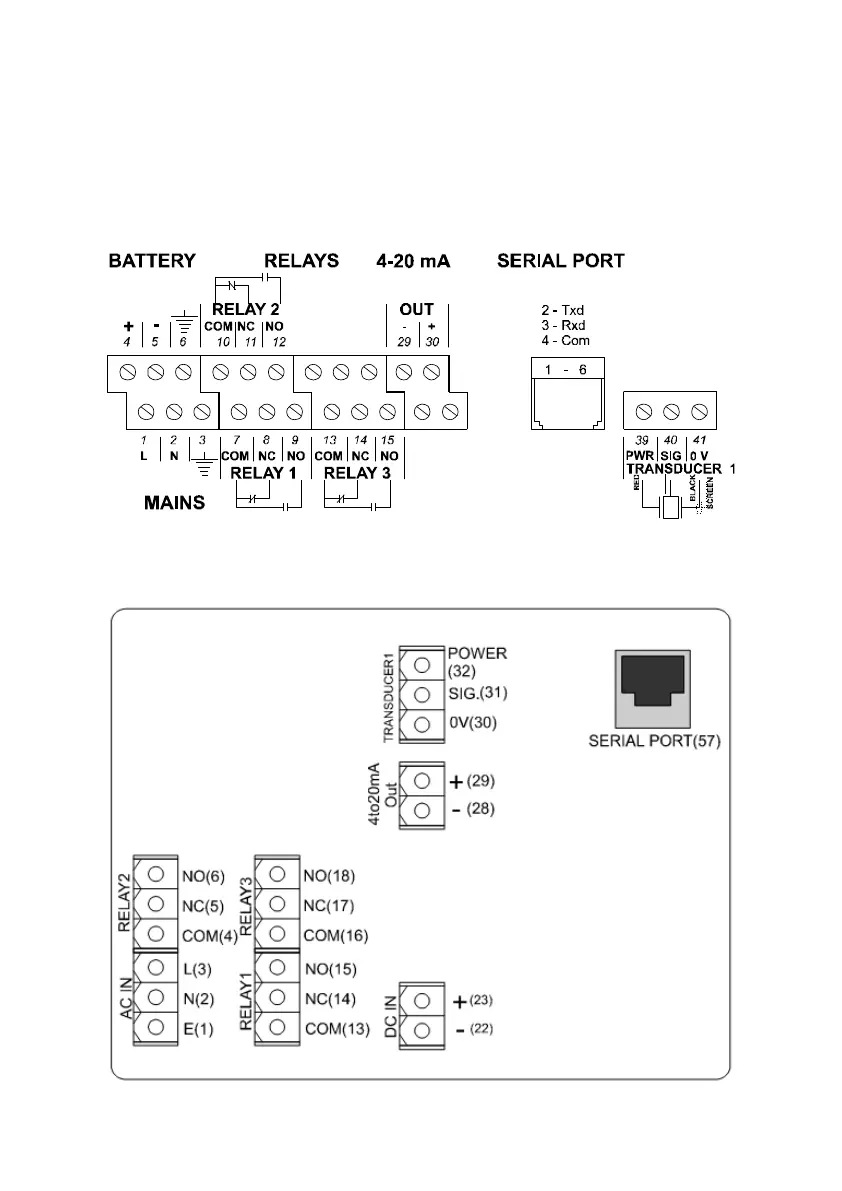

Terminal connection d
etails
Wall Mount
The normal strip is as d
etailed below. There is also a w
iring diagram inside
the terminal access cov
er.
Fascia M
ount
The terminal details are
as illustrated below:
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Start here
8
About this Manual
8
About the Ultra 3
9
Functional Description
10
How to Use this Manual
11
Product Specification
12
EU Certificate of Conformity
14
Chapter 2 Ultra 3 Installation
15
Unpacking
15
Power Supply Requirements
15
Location
16
Dimensions
17
Wall Mount
17
Fascia Mount
19
Rack and Panel
21
Terminal Connection Details
23
Power
25
Transducer
25
Atex
25
Voltage Selector and Fuse Location
26
Preparation for Operation
30
Maintenance
30
Chapter 3 How to Use Your Ultra 3
31
Operating the Controls
31
Run Mode
32
Program Mode
33
How to Access Program Mode
33
Hot Keys
35
Menu Keys
36
Numeric Keys
36
Using the Menu System
37
Directly Editing Parameters
38
Test Mode
39
Using the Serial Interface
40
Parameter Defaults
42
Chapter 4 Ultra Wizard
43
Enter Program Mode
43
Choose Ultra Wizard
43
Level/Volume
44
Pump
44
Flow
45
Chapter 5 Level / Volume
46
Quick Setup
48
Example 1 Level Monitoring with Alarms
52
Example 2 Level Monitoring and Control (up or Down)
54
Example 3 Volume Application
56
Chapter 6 Pump
59
Quick Setup Menu
61
Example 1 Level Monitoring with Alarms
64
Example 2 Sump Control (Pump Down)
66
Example 3 Reservoir Control (Pump Down)
68
Chapter 7 Flow
70
Exponential Devices
76
Calculations
79
BS3680 Flumes (P700 = 2)
83
Rectangular Flume Calculations
84
U-Throated Flume Calculations
85
Example 2 BS3680 U-Throated Flume
86
BS3680 Weirs (P700 = 3)
88
Rectangular Weir Calculations
88
V-Notch Weir Calculations
89
BS3680 Rectangular Broad Crested Weir
92
Rectangular Broad Crested Weir Calculations
92
Special Devices
93
Palmer Bowlus and H-Flume Calculations
94
V-Notch Angle Weir (Non-BS 3680) Calculations
95
Universal Calculations (P700=6)
95
Chapter 8 Parameter Guide
96
Menu System
96
Top Level Menu
96
Application Menu
97
Relays Menu
98
Data Logs Menu
99
Volume: Available When Ultra Wizard = Volume
100
OCM: Available When Ultra Wizard = OCM
101
Display Menu
102
Ma Output Menu
103
Compensation Menu
103
Stability Menu
104
Echo Processing Menu
104
System Menu
105
Device Comm Menu
106
Test Menu
107
Application Parameters
108
Operation
108
Dimensions
109
Relay Parameters
112
Alarms
113
General Control
117
Pumps
118
Control
122
Miscellaneous
124
Common Relay Parameters
126
Data Log Parameters
126
Totaliser Audits
126
Temperature
127
Volume
128
Conversion
128
Breakpoints
133
Tables
134
OCM Parameters
135
Dimensions
139
Calculations
144
Breakpoints
145
Tables
145
Average Flow
145
This Parameter Allows the Resetting, to the Default Value, of All Previously Set
145
Is Necessary to Reset or Amend Breakpoints this Can be Achieved by Directly
145
This Parameter Allows You to Review the Number of Breakpoints that Have
145
Been Set, Without the Need to Access each Individual One in Turn, this Is a
145
"Read Only "Parameter and no Values Can be Entered
145
Display Parameters
146
Options
146
Failsafe
147
Auxiliary
148
Totaliser
149
Ma Output Parameters
151
Range
151
Operation
152
Setpoint
152
Ma Limits
153
Ma Trim
153
Ma Failsafe
154
Compensation Parameters
155
Offset
155
Temperature
155
Velocity
156
Stability Parameters
157
Damping
157
Indicator
157
Rate
157
Filters
158
Echo Processing Parameters
159
Transducer Status
159
DATEM Parameters
161
System Parameters
162
Passcode
162
Backup
162
System Information
163
Date & Time
164
LED Colour
164
Watchdog
165
Daylight Saving Time
166
Device Comm
170
RS232 Set up
170
RS 485 Set up
170
Remote Alarm
171
Test Parameters
173
Simulation
173
Hardware
174
Chapter 9 Troubleshooting
176
Chapter 10 Disposal
177
Notes
178
