Pulsar IMP+ - Wiring and Connections; 2 Wire (Loop Powered) Configuration

IMP+ INSTRUCTION MANUAL
14
Cable Entry
The IMP Lite+ has two M16 cable entries, fitted with a suitable gland, to
ensure moisture protection is maintained.
Terminal Connection Details
The IMP+’s unique design allows for both 3 wire and 2 wire (loop powered)
configuration within the same unit the terminal connections for both
configurations are as detailed below. Wiring details are also given on the
terminals under the access cover.

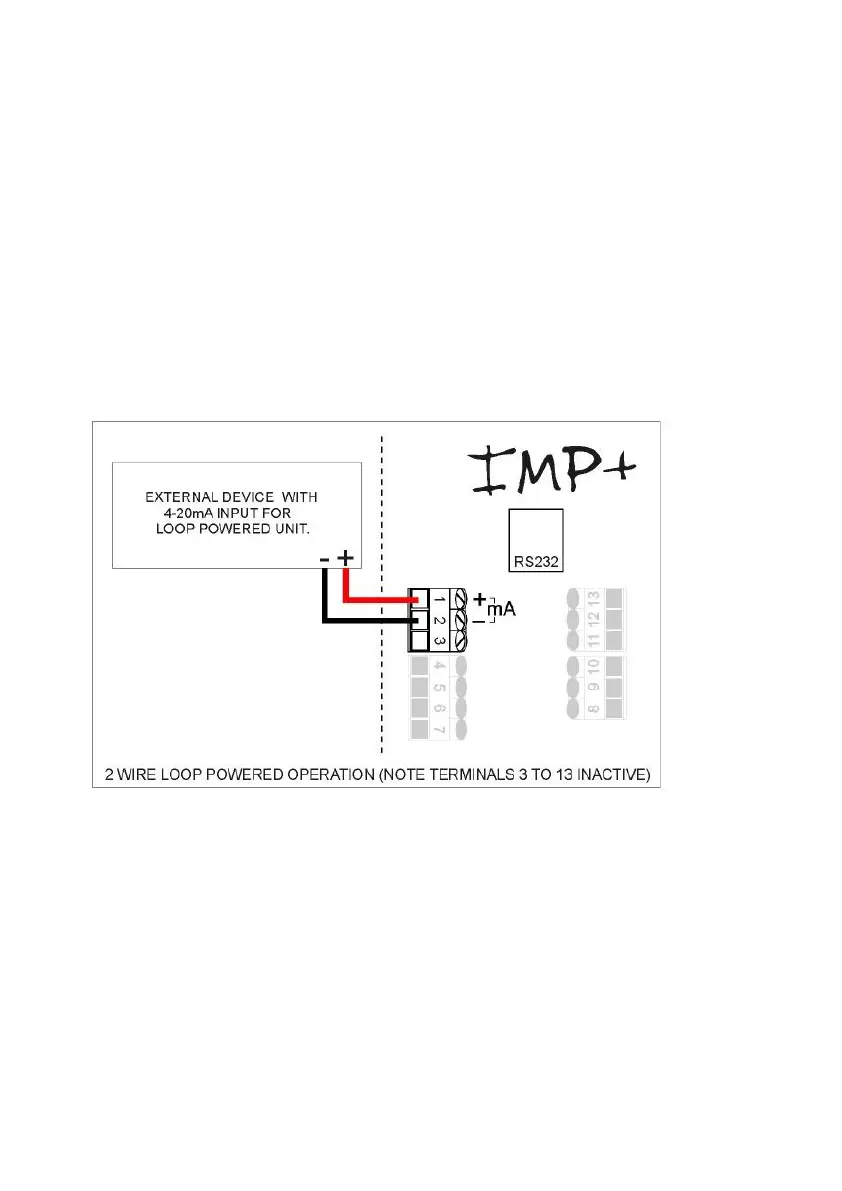

2 Wire (Loop Powered)
