IMP+ INSTRUCTION MANUAL
18
CHAPTER 3 HOW TO USE YOUR IMP+

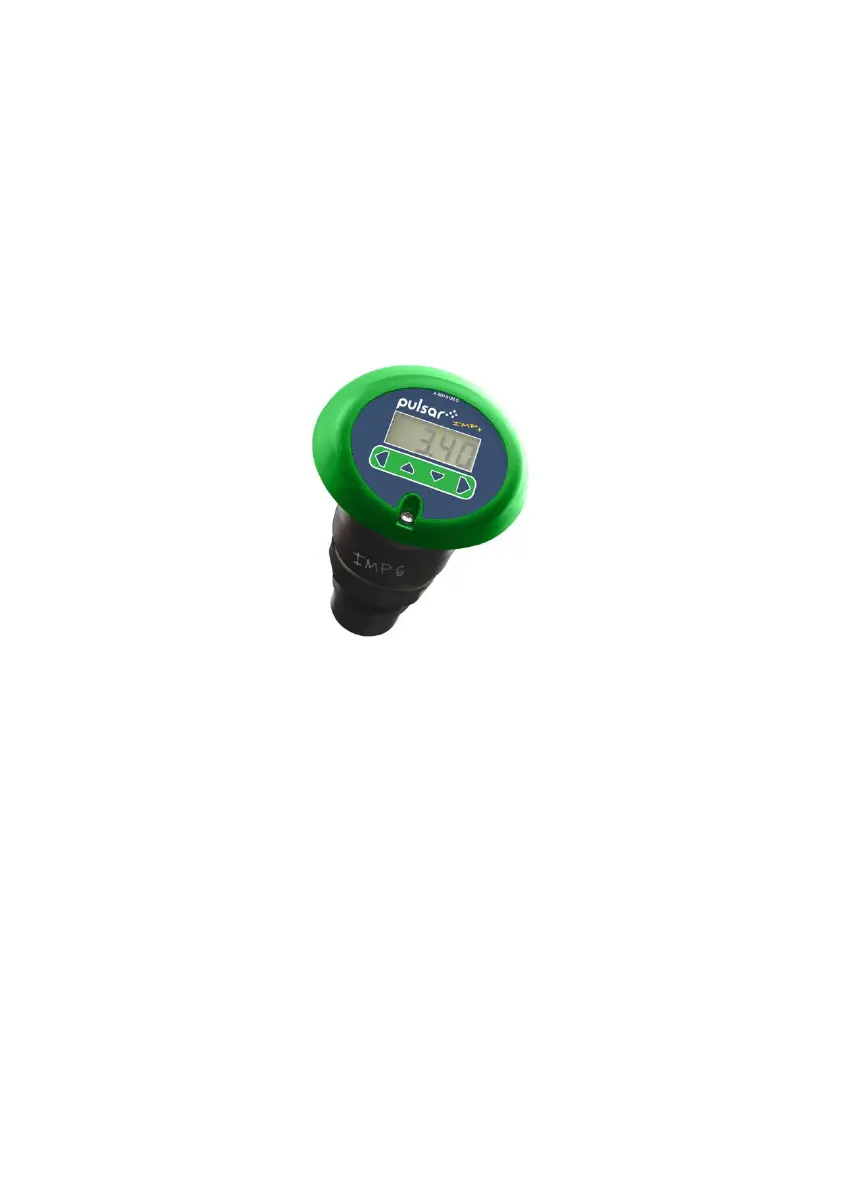

Operating the Controls
Display
Whilst in the Run Mode, the 4-digit LCD, by default, will display the current
level reading in metres, the display will also alternate between the reading
and “LOE” when a fault condition (Loss of Echo) is detected. When in the
Program Mode the display is used to read information on the Menu Options
and the values entered.
There are two operating modes for your IMP Lite, Run Mode and Program
Mode.
Run Mode
This mode is used once the IMP+ has been set up in program mode. It is
also the default mode that the unit reverts to when it resumes operation
after a power failure. When the IMP+ is switched on for the first time, it will
display, in P104 Measurement Units, the distance from the transducer face
to the target.
Program Mode
This mode is used to set up the IMP+ or change information already set, this
is achieved by using the 4 push buttons located below the display.
Entering a value for each of the menu options that are relevant to your
application provides all the programming information.
