Pulsar IMP+ - 3 Wire Configuration and Terminals; 3 Wire Source Mode Wiring; Terminal Function Descriptions

PULSAR MEASUREMENT
15

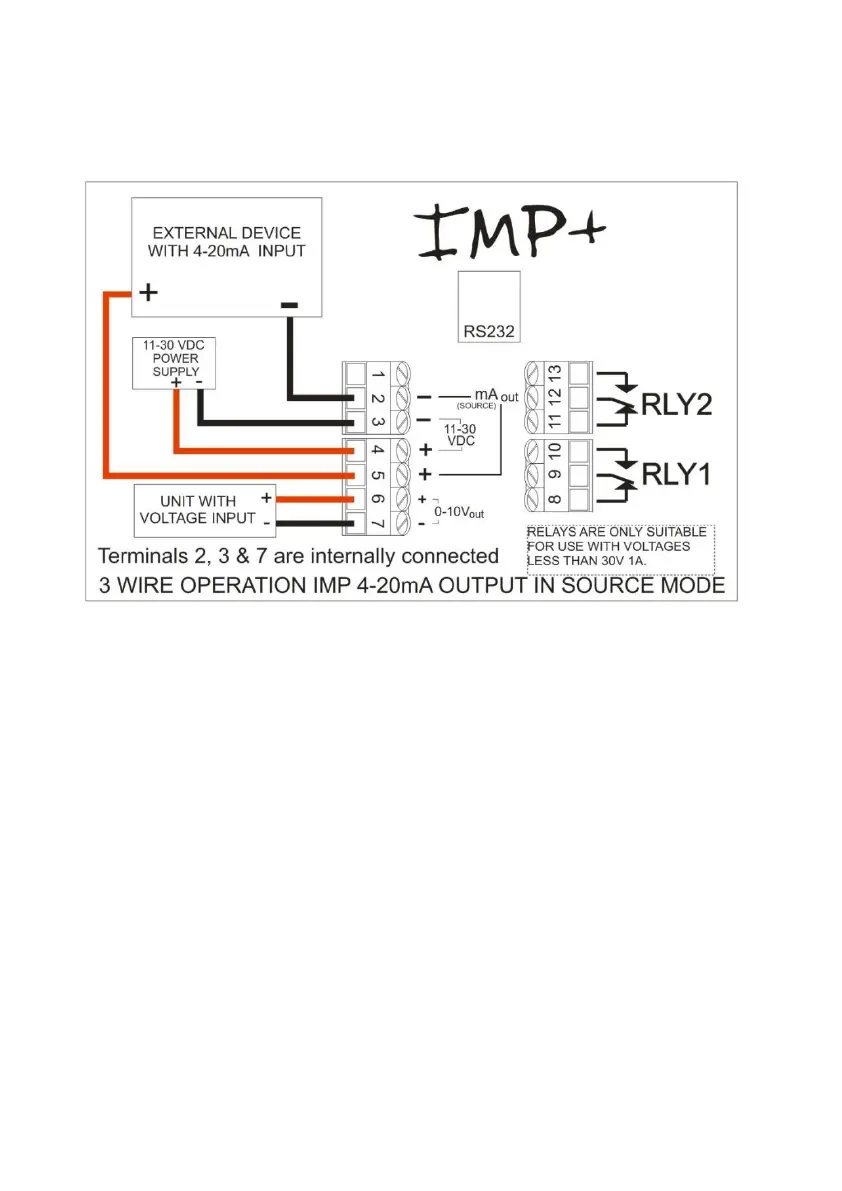

3 Wire
Source mode - the power for the loop is supplied by the IMP+.
Terminal Connections
2 Wire
Terminal 1 + ve: Direct Current (DC) input (11-30VDC)
Terminal 2 - ve: Current Output (4-20mA)
