Dimensions
Wall Mount

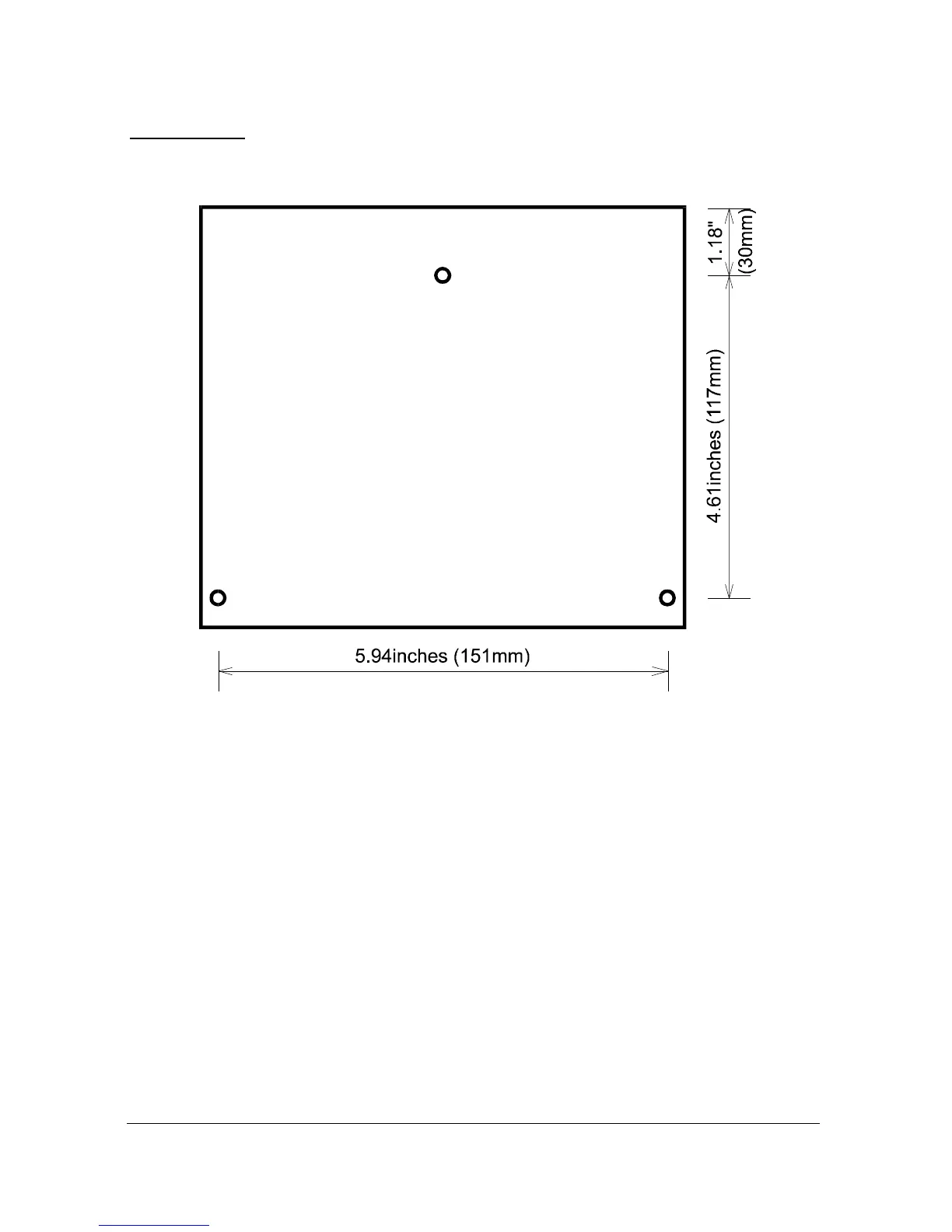

The dimensions of the wall fixing holes are as shown below.
Ultra 3 should be mounted by drilling three holes suitable for size 8 screws
(length to suit your application), and fixing the top screw in place. Hang the
unit on this and fix the two remaining screws by removing the terminals
access cover to access the pre-drilled holes.
