Page 23
Chapter 3 How To Use Your
Ultra 3
Operating the Controls

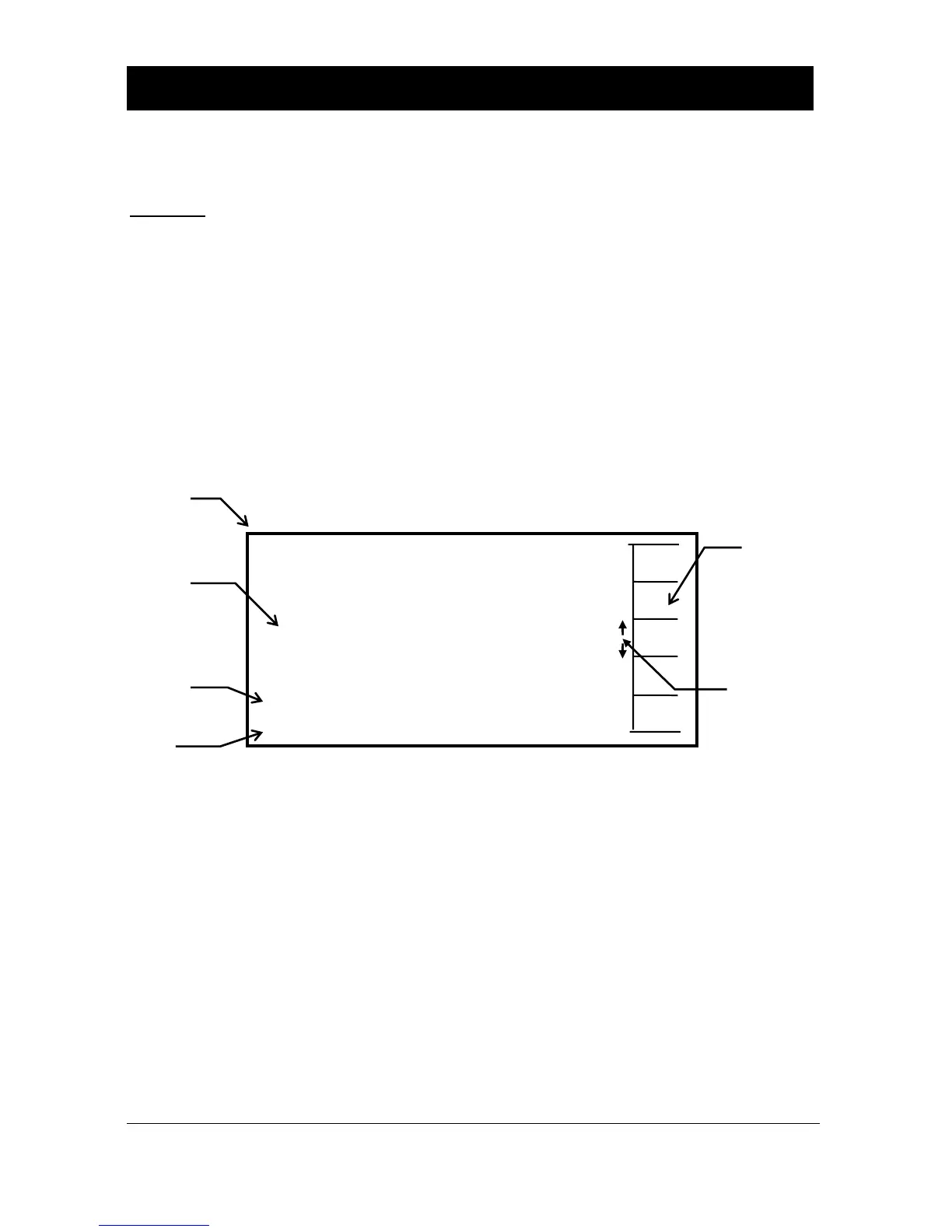

Display
The display provides information on the current mode of operation, and
status of the remote communication. While in the Run Mode it will display
the current level reading and its units of measure, along with status
messages with regards to the Transducer, Echo reception and Fail Safe
Mode. Additionally, it can be programmed to provide status messages on
alarms, pumps etc. When in the Program mode the display is used to read
information on the Menu System, Parameter Number and parameter details
and values, which can be entered. During Test Mode, the display is used to
monitor the simulated level. A bar graph is also provided which will provide
a visual reading of the level, in percentage of span.
1) Mode status enunciator displays the current mode of operation.
2) Main 6-digit display:
Run Mode, current measurement displayed, dependent on mode and
measurement unit's chosen, and value of Hot Key function selected.
Program Mode, displays parameter number and values entered for
parameters.
Test Mode, displays simulated level.
