40

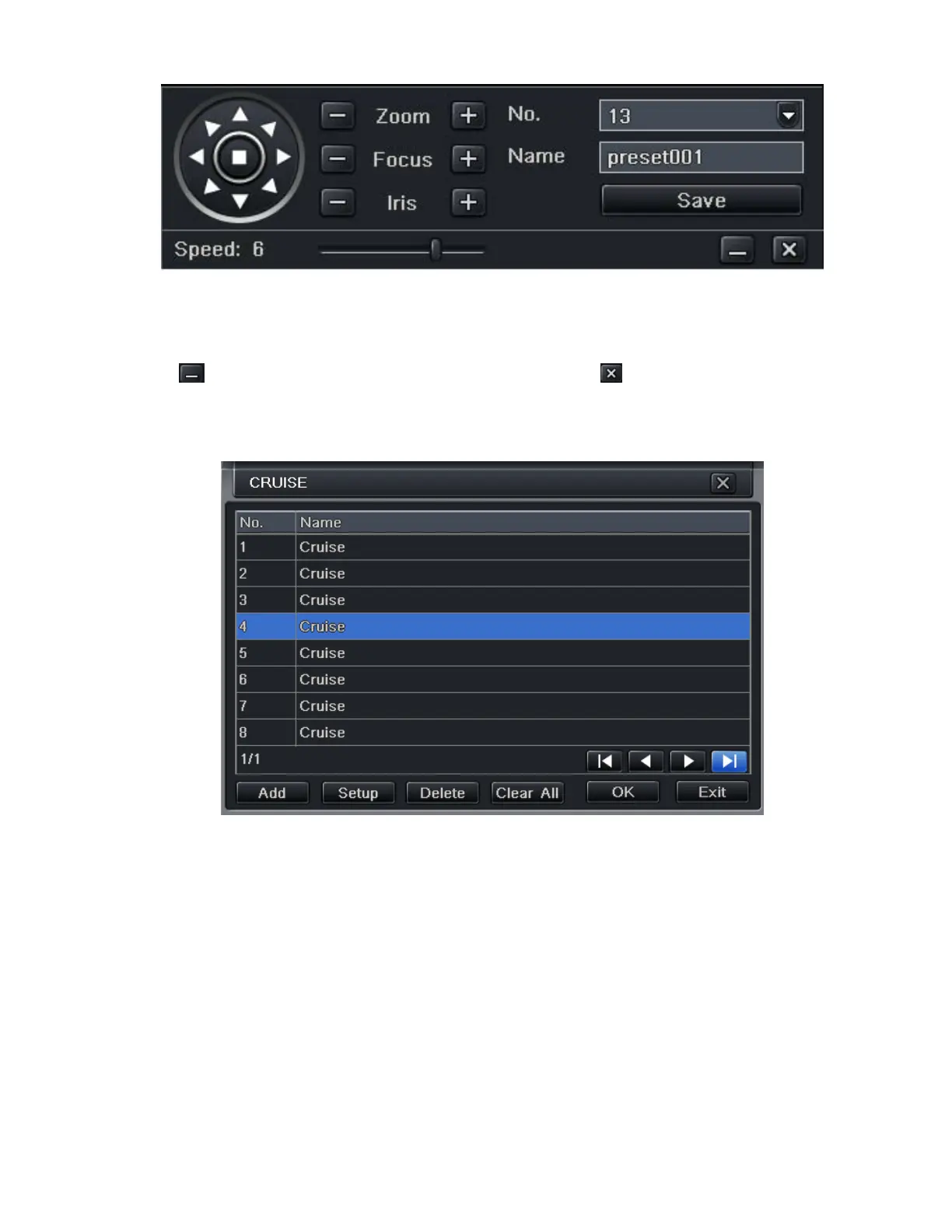

Fig 4-40 Preset Set-Setting
b. User can control the dome rotating up, up left, down, right down, left , left down, right and up right and
stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome;
c. Select the serial number of the preset point, set the preset name. Click Save button to save the settings,
click
icon to hide the tool bar, right-key can display it; click icon to exit the current interface.
d. In the preset interface, click OK button to save the setting; click Exit button to exit current interface.
Step 3: In the Advance interface, click cruise “Setting” button, a dialog box will pop-up shown as Fig 4-41:
Fig 4-41 Cruise Set
a. Click Add button to add cruise line in the list box (max 8 cruise lines can be added); select a cruise
line, click Setup button, a dialog box will pop-up shown as Fig 4-42:
