16 Network Switch Installation Guide
QuantaMesh T1000 Series
SFP/SFP+ Port Connection (LC Type Connector)
The switch is equipped with 4 SFP/SFP+ ports. The Small Form-Factor Pluggable Plus (SFP+) port
is the second generation of the SFP interconnect system designed for 10Gb/s data rate. The SFP+
ports support 10-gigabit IEEE 802.3ae Ethernet for ber mediums.
The SFP/SFP+ ports are numbered and have corresponding SFP/SFP+ port LEDs.

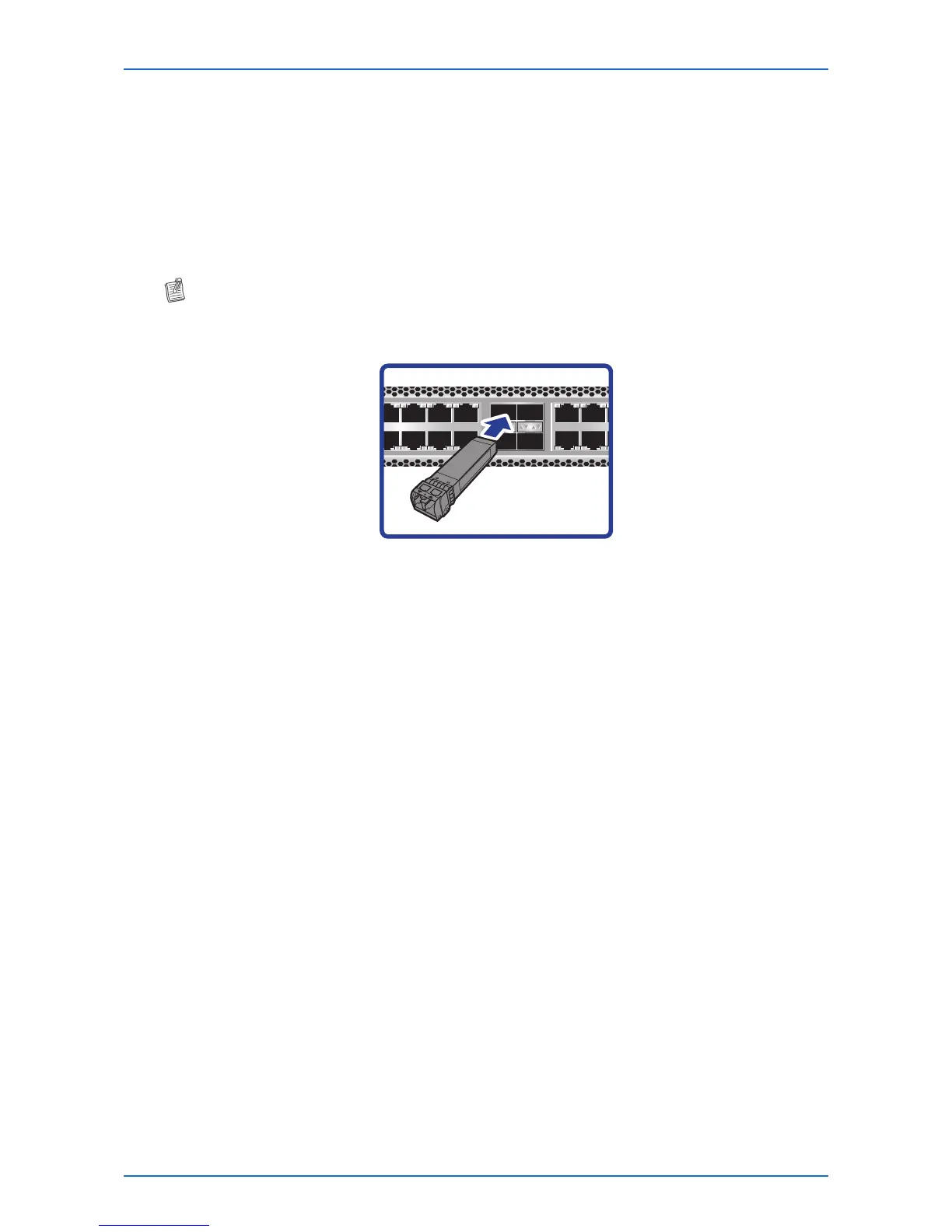

To install an SFP/SFP+ module, do the following:
1 Slide the SFP/SFP+ module into an SFP/SFP+ port.
NOTE:
• EnsuretheSFP/SFP+moduleispositionedcorrectlybeforeinstallingitintotheport.
2 Push completely until the module locks into place.
3 Repeat the above procedures to install additional SFP/SFP+ modules.
The SFP/SFP+ port LED lights green when the network link is established.
