34 Network Switch Installation Guide
QuantaMesh T5000 Series
QuantaMesh T5000 Series are 40 Gigabit Ethernet switches which provide fabric connection
of spine and leaf architecture with multi-path, load balance and easy scale characteristics.
Utilizing commercial silicon chips and advanced semiconductor process, T5000 provides the best
performance and low CAPEX and OPEX for the data center application.

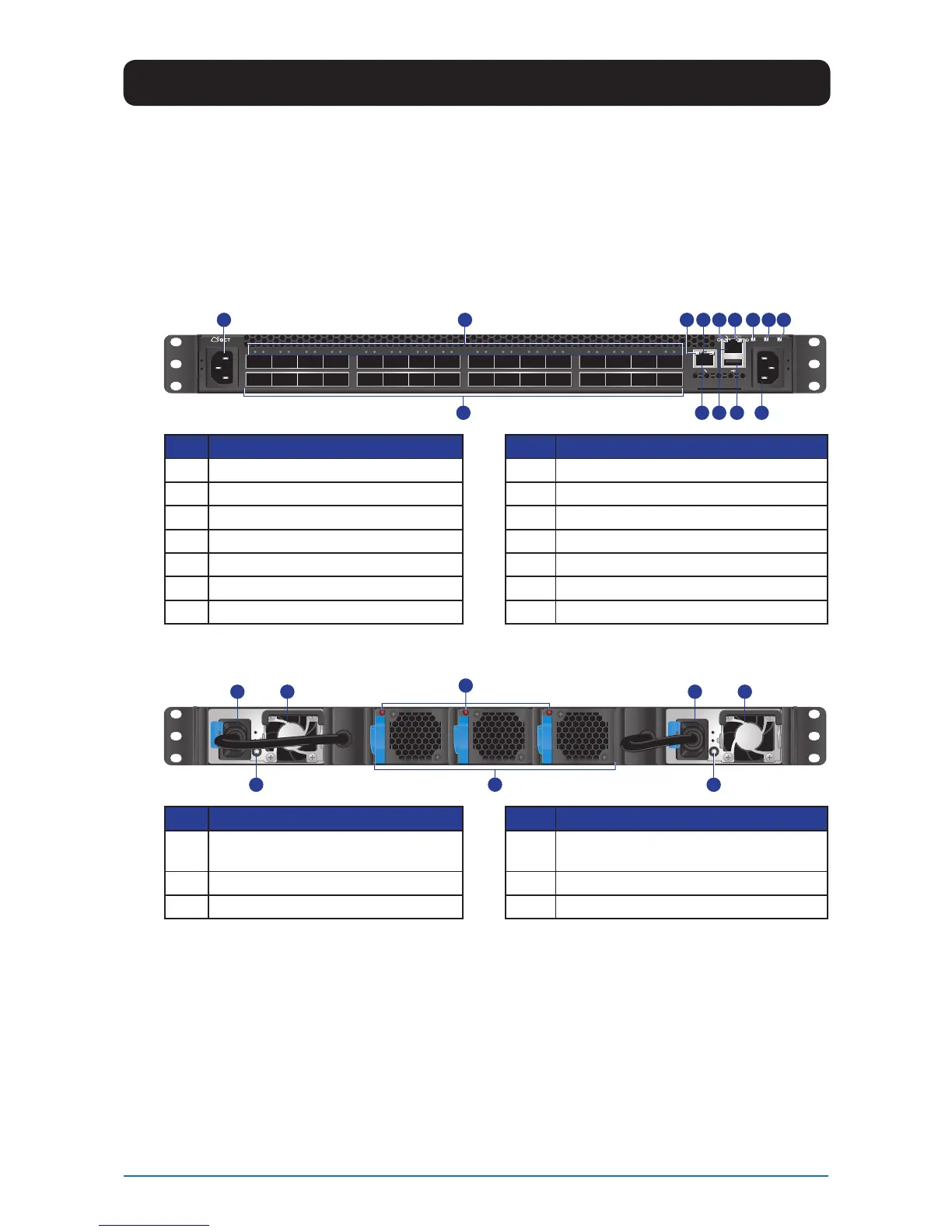

Chassis for the T5032-LY6 Switch
Front panel
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 20 31
13 57 91113151719212325272931
24 68 10 12 14 16 18 20 22 24 26 28 30 32
32
PSU 2PSU 1
T5032-LY6
PSU1 PSU2FAN
2
3 106 9 11
541 7 8 141312
No. Item No. Item
1 AC Power Connector (PSU1) 8 Power LED
2 QSFP+ Port LEDs 9 Console Port
3 QSFP+ Ports 10 USB Port
4 Speed LED 11 AC Power Connector (PSU2)
5 Link/Activity LED 12 PSU1 LED
6 Management Port 13 Fan LED
7 System info. LED 14 PSU2 LED
Rear panel
1 3
5
4
2
1 6
2
No. Item No. Item
1
AC Power Connector (with Plug
Retainer and Power Cord)
4 Fan LEDs
2 PSU LED 5 Hot-swappable Fan
3 PSU2 6 PSU1
