QCT QuantaMesh User Manual

Network Switch lnstallation Guide 33
QuantaMesh T3000 Series

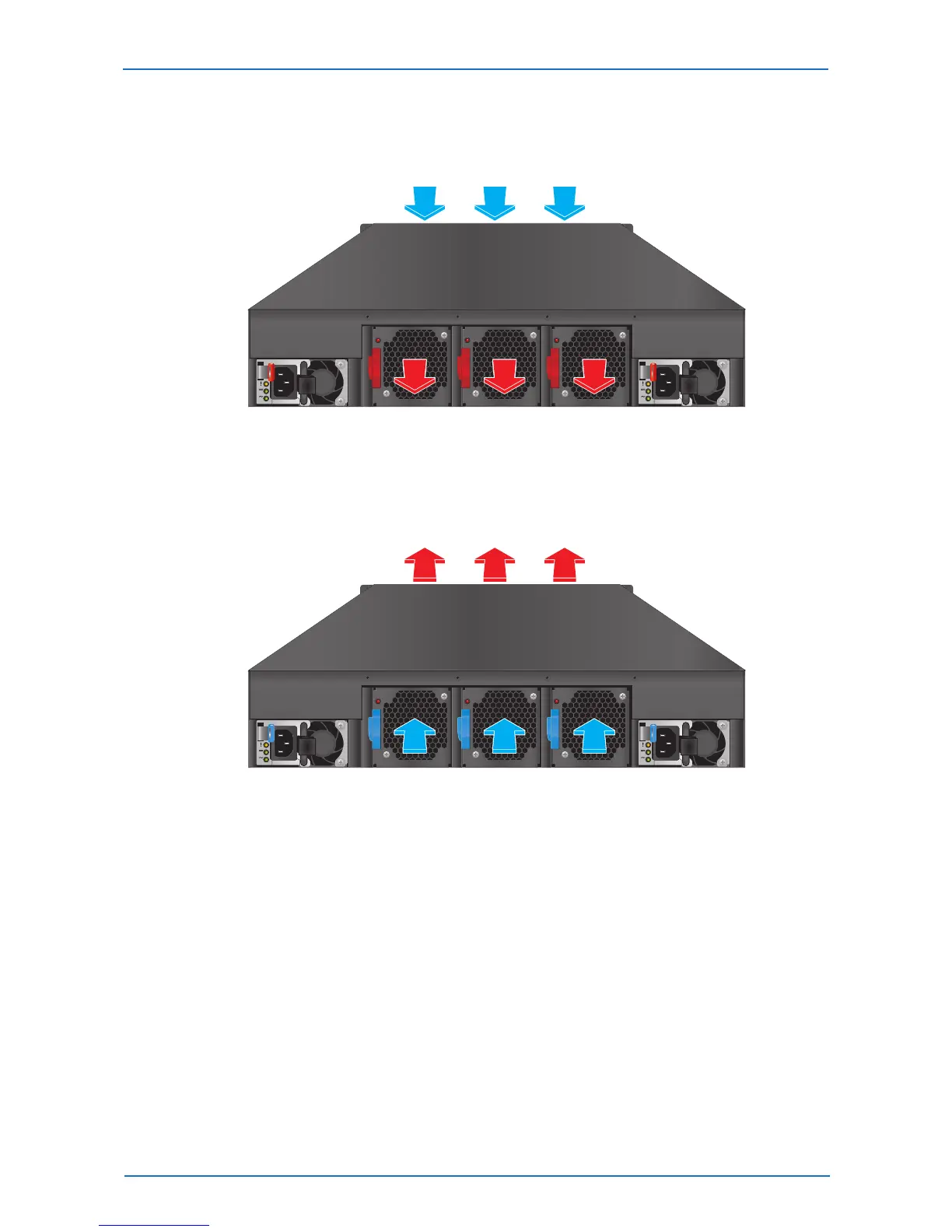

Front-to-Back Airow
The air intake is located on the front panel of the switch. The cool air is sucked in from outside
the chassis and pushed toward the rear of the chassis. The hot air exhausts through the vents on
the rear panel of the switch.
PSU-2 PSU-1
FAN-3 FAN-2 FAN-1
750w
~AC
AC
DC
750w
~AC
AC
DC
Rearpanel
Back-to-Front Airow
The air intake is located on the rear panel of the switch. The cool air is sucked in from outside the
chassis and pushed toward the front of the chassis. The hot air exhausts through the vents on
the front panel of the switch.
PSU-2 PSU-1
FAN-3 FAN-2 FAN-1
750w
~AC
AC
DC
750w
~AC
AC
DC
Rearpanel
Frontpanel
