Network Switch lnstallation Guide 31
QuantaMesh T3000 Series
QSFP+ Port Connection (MPO Type Connector)
The switch is equipped with 12 QSFP+ (Quad SFP) ports. These QSFP+ ports support 40G/per port
or fan out to 4x10G by using the fan out DAC cable described in the “40-Gigabit ports” section on
page 30.
The QSFP+ ports are numbered and have corresponding QSFP+ port LEDs.

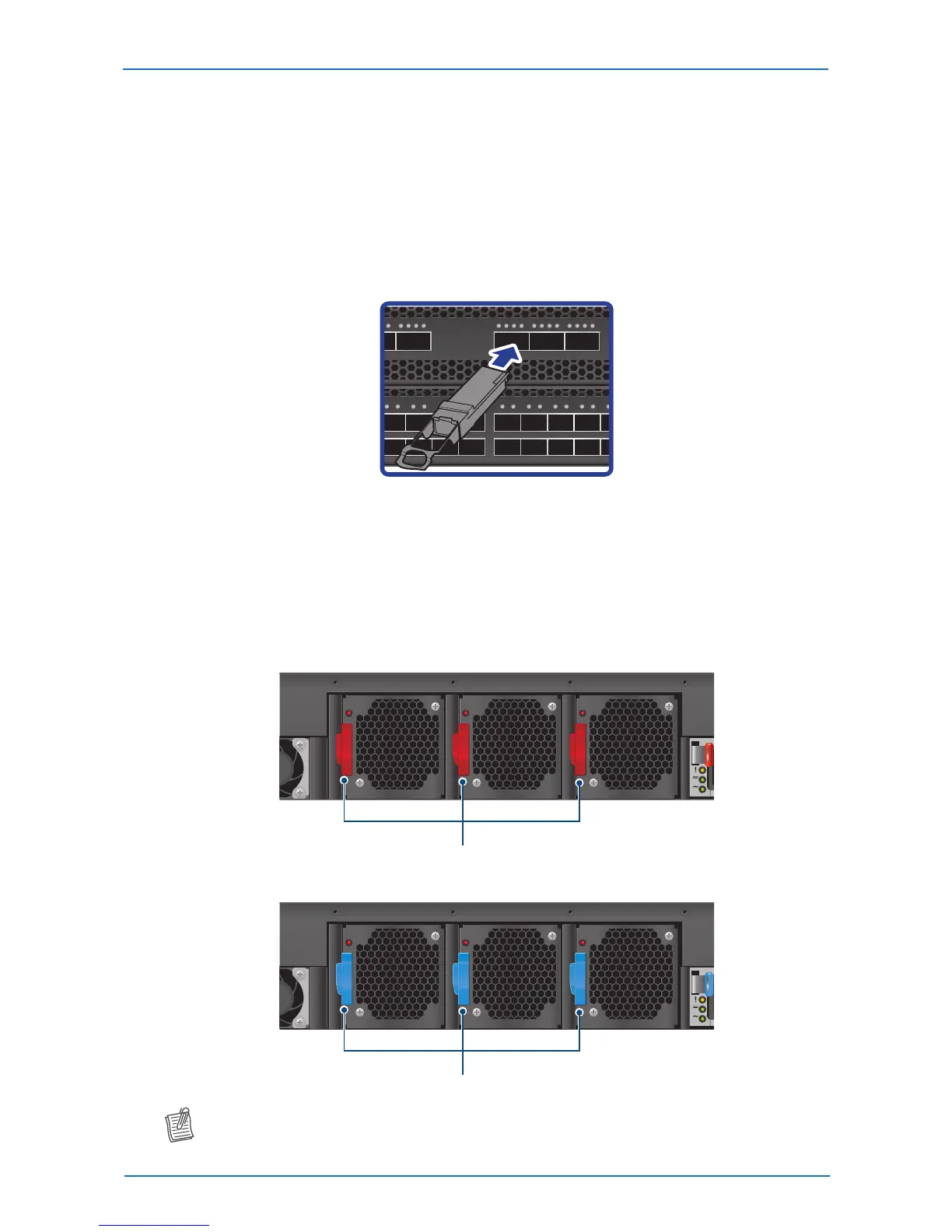

To install a QSFP+ module, do the following:
1 Slide the QSFP+ module into a QSFP+ port.
2 Push completely until the module locks into place.
30 32 34 36
29 30 31 32 33 34 35 36
29 31 33 35
38 40 42 44
37
37 38
39 40 41 42 43 44 45
39 41 43
92 9457/939596 9858/9799 100 10259/101 103 104 10660/105 107 108
3 Repeat the above procedures to install additional QSFP+ modules.
The QSFP+ port LED lights green when the network link is established.
Fan Tray of T3048-LY5A
The switch chassis is equipped with three fan trays. There are two types of hot-swappable fan
modules. Each fan module handle is color-coded to indicate its airow direction.
• Red: indicates front-to-back airow.
Fanmodulehandles
• Blue: indicates back-to-front airow.
Fanmodulehandles
NOTE:
• Tohot-swapthefanduringoperations,makesuretoreplaceitwithintwominutes.
