48 Network Switch Installation Guide

Components Replacement

T5032-LY6 Switch

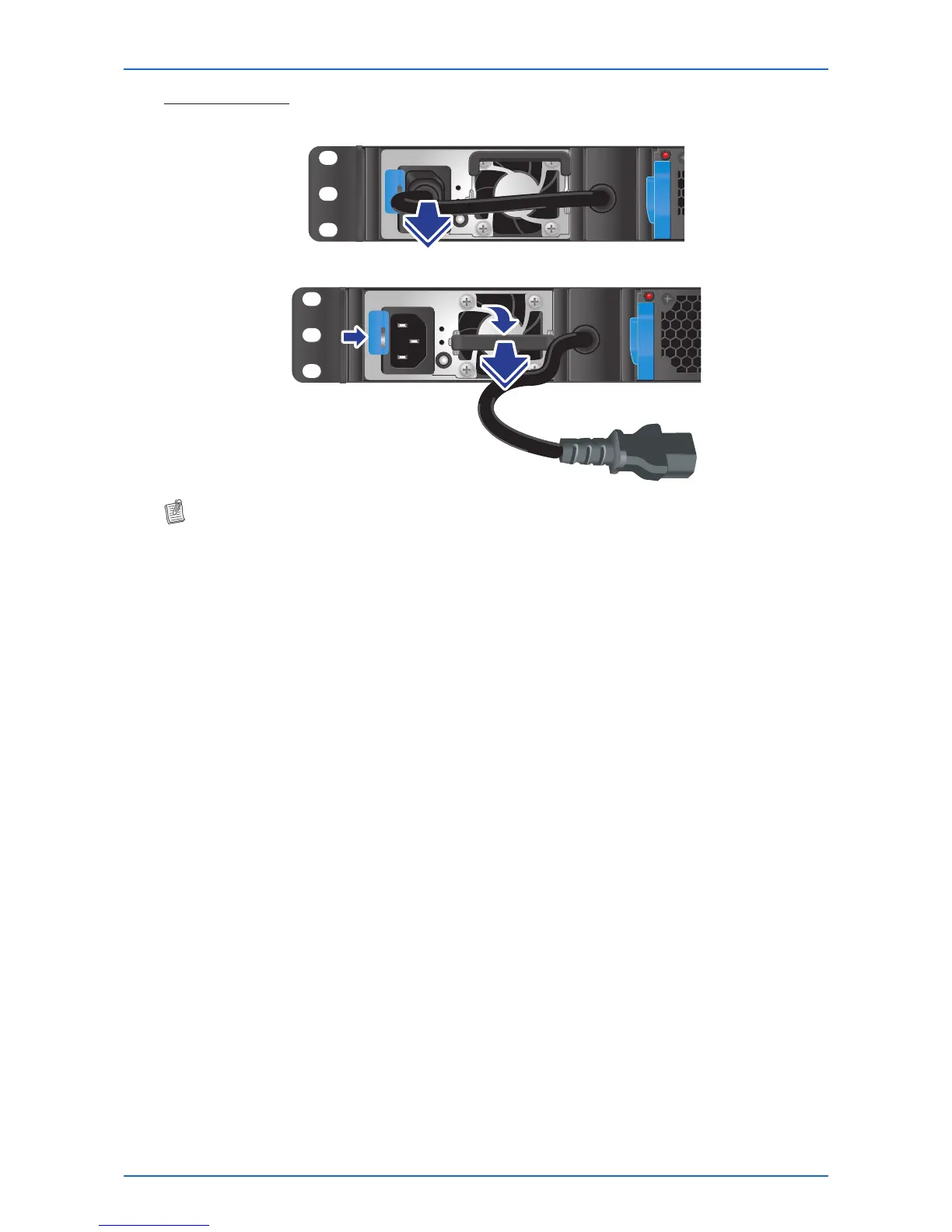

1 Disconnect the AC power cord of the PSU (on the rear panel) that you want to remove.

2 Press the plug retainer and then pull the handle to slide the PSU away from the chassis.

NOTE:

• TakenoteofthepartnumberoftheremovedPSU.

• Whenmakingorderforreplacementmodules,makesurethatthepartnumberofthenewPSUis

thesameasthepartnumberoftheremovedPSU.

3 Ensure the power supply unit is correctly oriented, then install the new PSU into the chassis

until it is rmly seated.

4 Connect the AC power cord to power on the switch. Refer to “About the AC Power Connector

Connection” on page 37.
