Assembly
Unboxing
Verify that you have received all of the included components with your QQ190™ RTF
Racing Drone:
•
1x QQ190™ drone with camera pod (depending on conguration purchased)
•
2x battery straps
•
4x Propellers
•
1x Battery Skid Plate
*
If you ordered the upgraded camera assembly, then it will arrive detached from
the QQ190™ main frame. The camera pod assembly can be attached using the 4x
M3x8 allen screws provided. After installing the camera assembly, you will need to
plug in the camera wire to the bottom of the power cube stack on the left side into
camera port 1 (gure 1). We recommend installing your receiver before nalizing the
camera pod installation.
The QQ190™ is ready to y out of the box, but it requires some extra electronics to get
ying. This is an advanced product designed for the racer in mind and therefore no
radio system for control is included. We have done this on purpose to allow any 6
channel radio system to be used with the QQ190™ Racing Drone provided that it
outputs a PPM or SBUS signal. This means that you can use any high-end radio system
with the drone. QuadQuestions recommends using an Frsky Taranis or TBS Tango for
best results.
Install a receiver module
Follow these steps to get air
worthy:
A.The drone comes pre-wired
with a Jr style connector lead
to connect a common SBUS
receiver via a standard servo
connection. It provides 5V
power via this connection.
The red wire is 5V, white is
signal, and black is ground.

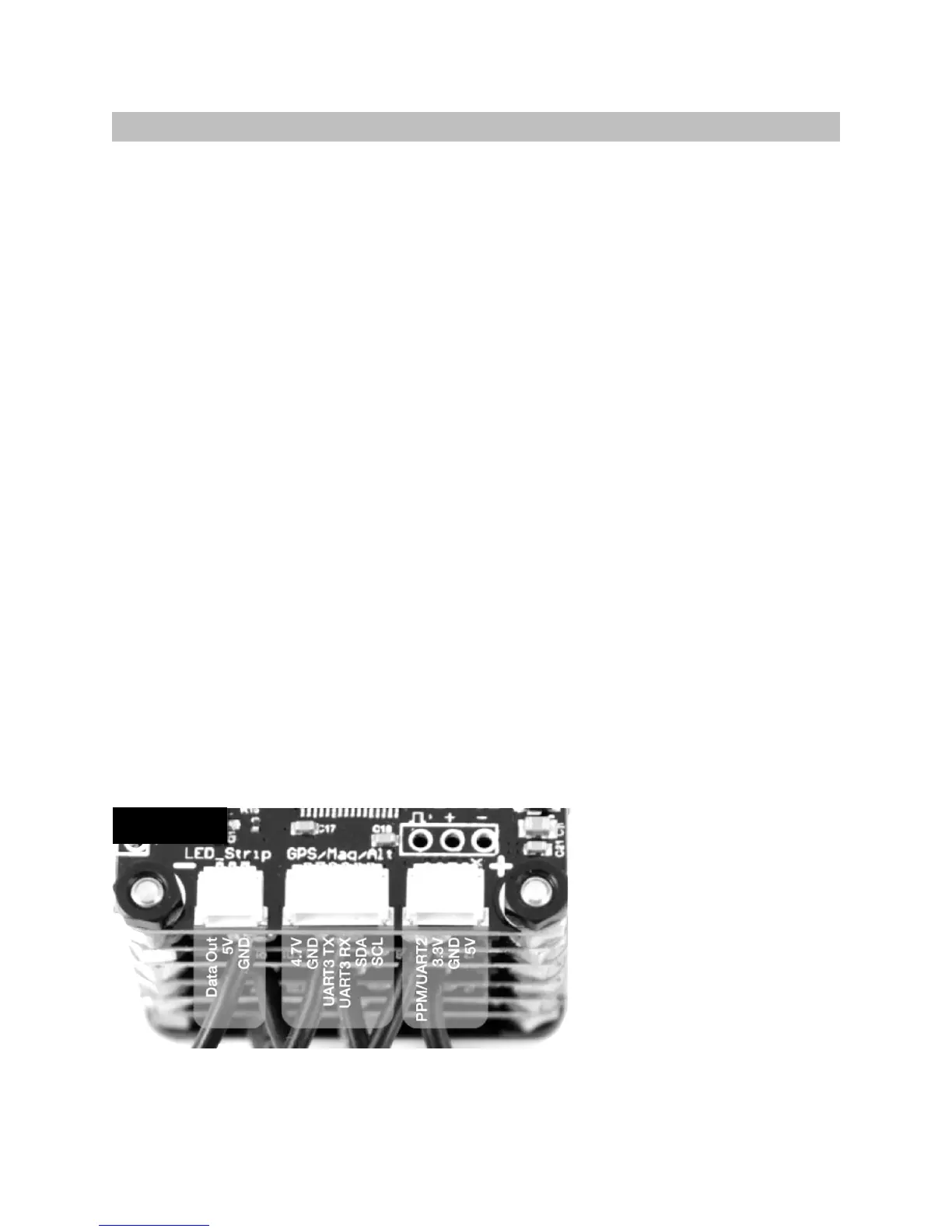

A. The receiver port on the Colibri has 4 wires and outputs signal, 3v3,
ground, and 5V from left to right. The receiver cables provided are made
