Part Replacement Replacing the Display
CubiScan 125 Service Manual 26
5. Shut the fuse drawer.
6. Reconnect the power cord from step 2.
7. Power the CubiScan 125 on.
Replacing the Display
This section describes how to replace the display.
Items Needed
• Phillips screwdriver
• Replacement display
Complete the following steps to replace the display.
1. Power the CubiScan 125 off.
2. Carefully remove the glass platform and place it in a
safe location.
3. Using the Phillips screwdriver, remove the 10 screws
holding the controller box lid in place and remove
the lid. See Figure 19.
4. Remove the four screws holding the display
assembly in place. These screws are found on the
green display board, one in each corner.
5. Replace the damaged display assembly with the
replacement display assembly.
6. Secure the display assembly using the screws from
step 4.
7. Replace the controller box lid and screw it in place
using the screws from step 3.
8. Replace the glass platform.
9. Power the CubiScan 125 on.

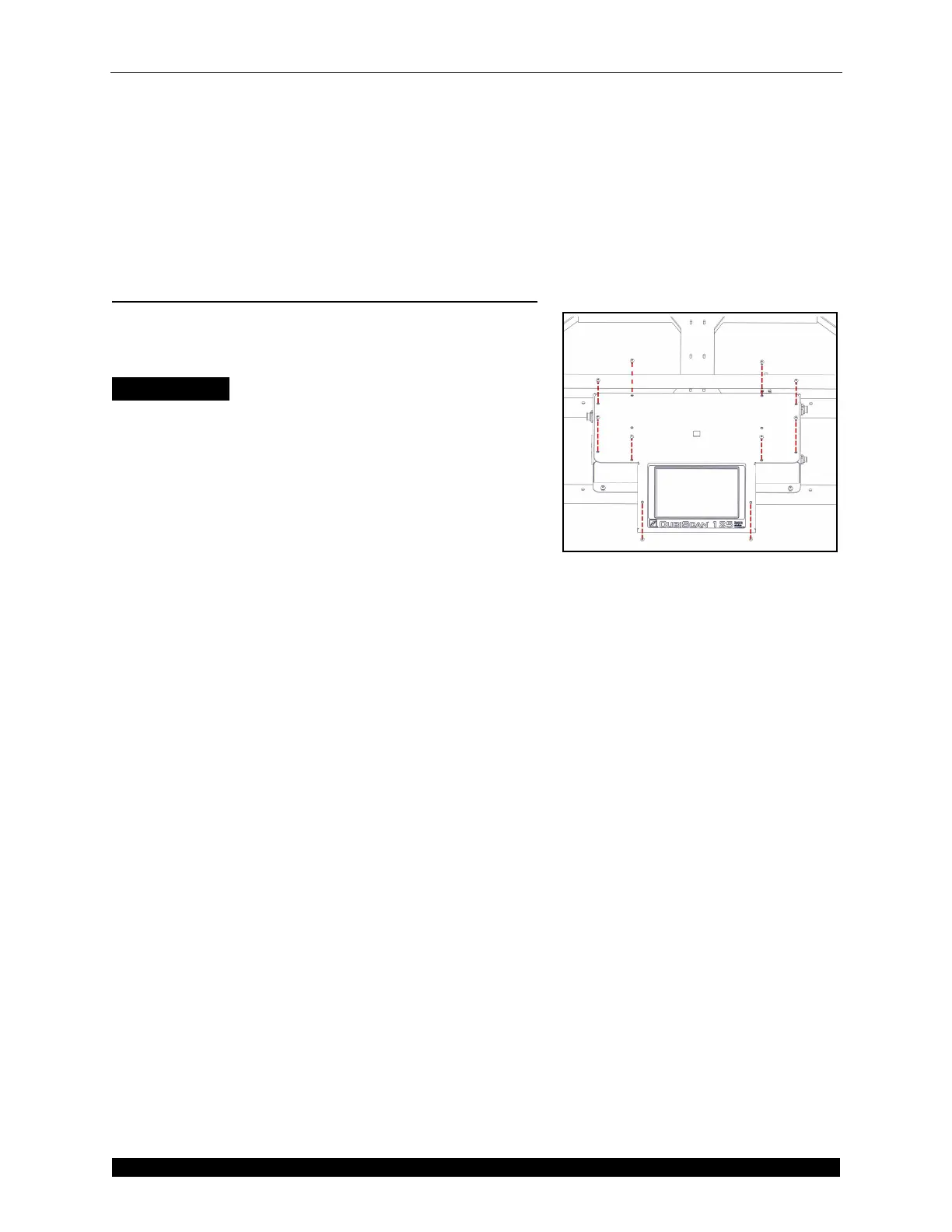

Figure 19
Controller Box Screws
