Part Replacement Replacing a Load Cell
CubiScan 125 Service Manual 46
9. Adjust the CubiScan 125 so that you can access the
underside of the two bolts holding the load cell in
place. These bolts are shown in Figure 52.
10. Use the 5/8'' wrench to hold the bolts indicated in
Figure 52 in place while using the 1/2'' ratchet to
remove the nuts indicated in Figure 53. Remove the
bolts and set them aside.
11. Carefully pull the load cell and attached cable out,
you may need to unroute the cable from the
CubiScan 125 frame.
12. Locate the replacement load cell and bolt it into
place using the bolts and nuts from step 10.
13. Replace the load cell ball from step 8.
14. Make sure the ball cups are aligned. They should not
be touching.
15. Route the load cell cable to the load cell summing
box.
16. Reconnect the load cell connection wires from step 3.
Figure 54 shows a diagram of the wires.
17. Zip tie the load cell cable and any other cables that
were released when the zip ties were cut. Take up any
slack.
18. Replace the load cell cover and secure it using the
screw from step 6.
19. Once everything has been replaced, you will need to
balance the load cells. Power the CubiScan 125 on.
20. For instructions on balancing the load cells, see
“Balancing the Load Cells” on page 23.
21. When you have finished balancing the load cells,
replace the load cell summing box lid and secure it
using the screws from step 2.
22. Calibrate the CubiScan 125. For calibration
instructions, see “Scale Calibration” on page 14.

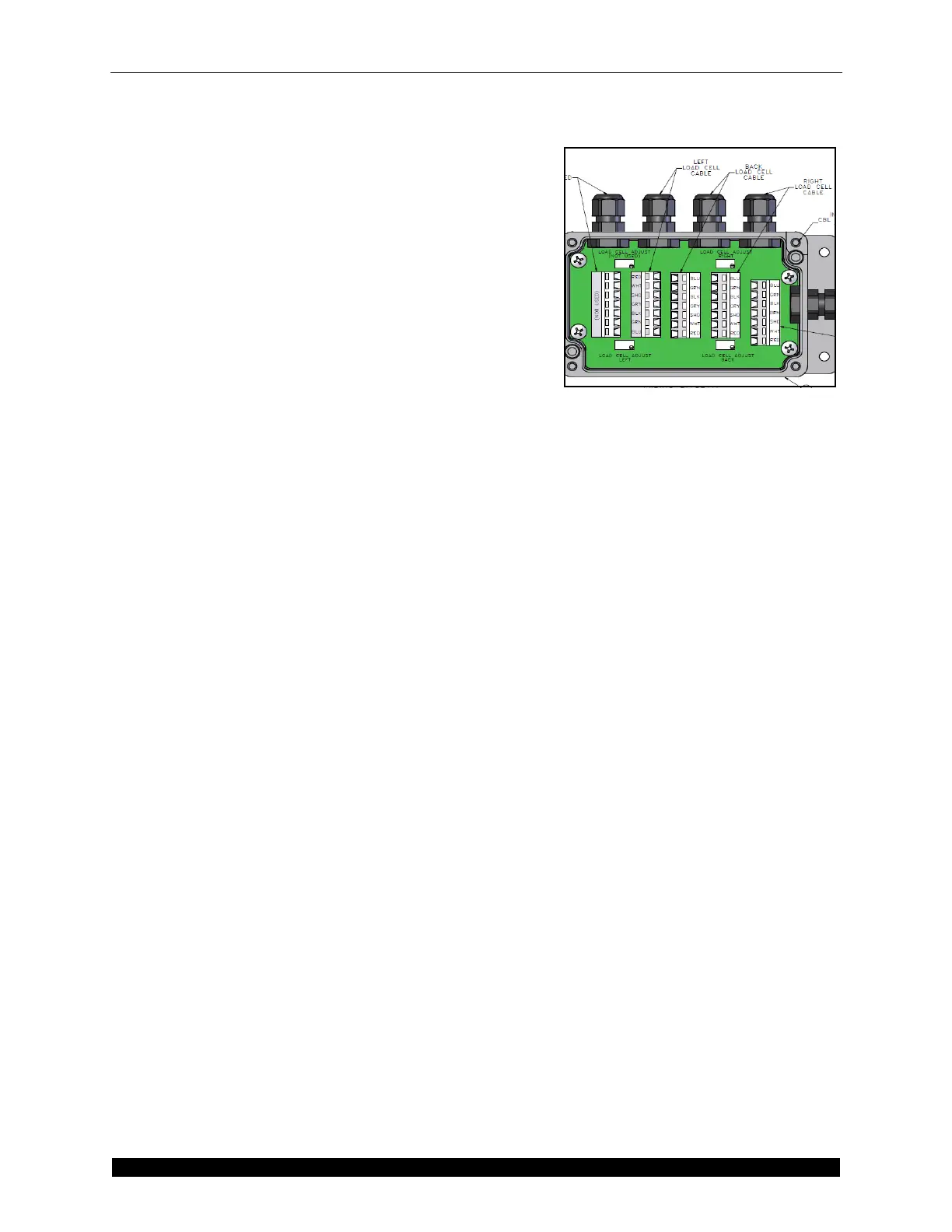

Figure 54
Load Cell Wiring Diagram
