Part Replacement Replacing Gate Cables
CubiScan 125 Service Manual 49
board. Disconnect all the ribbon cables and set the
board aside.
22. Remove the spiral wrap on the gate cables.
23. Once everything has been disconnected, feed the
cables through the gate and pull them out.
24. Locate the new gate cables. Plug the new cables into
the gate boards. Start with the height receive board
and end with the height transmit board; don’t forget
to plug the cables into the distribution board from
step 21. When plugging cables into the distribution
board, make sure that the rx and tx cables are
plugged into the correct connectors. Make sure that
all cables are plugged securely into their connectors.
25. Screw the distribution board into place.
26. Feed the cables down through the gate hinge; avoid
bending or stressing the cables.
27. Replace the height transmitter board and secure it
using the screws from step 19. Make sure that the
board is oriented with the power connector at the
bottom.
28. Replace all the gate covers and tighten the screws to
hold them in place. When replacing the height
transmit cover, first put the filter in place, making
sure that there are no specks or fingerprints on it.
The height transmit cover is oriented with the long
side on top.
29. Replace the two bearings located on the top and
bottom of the gate.
30. Move the gate back into place, feeding the cables
through the hinge.
31. Replace the bolts from step 13, located on the back of
the CubiScan 125. These bolts should be placed
about 3/4 of the way up the slot.
32. Replace the gate bracket and loosely secure it using
the bolts from step 14. Do not tighten these bolts all
the way yet.
33. Replace the spiral wrap around the gate cables.

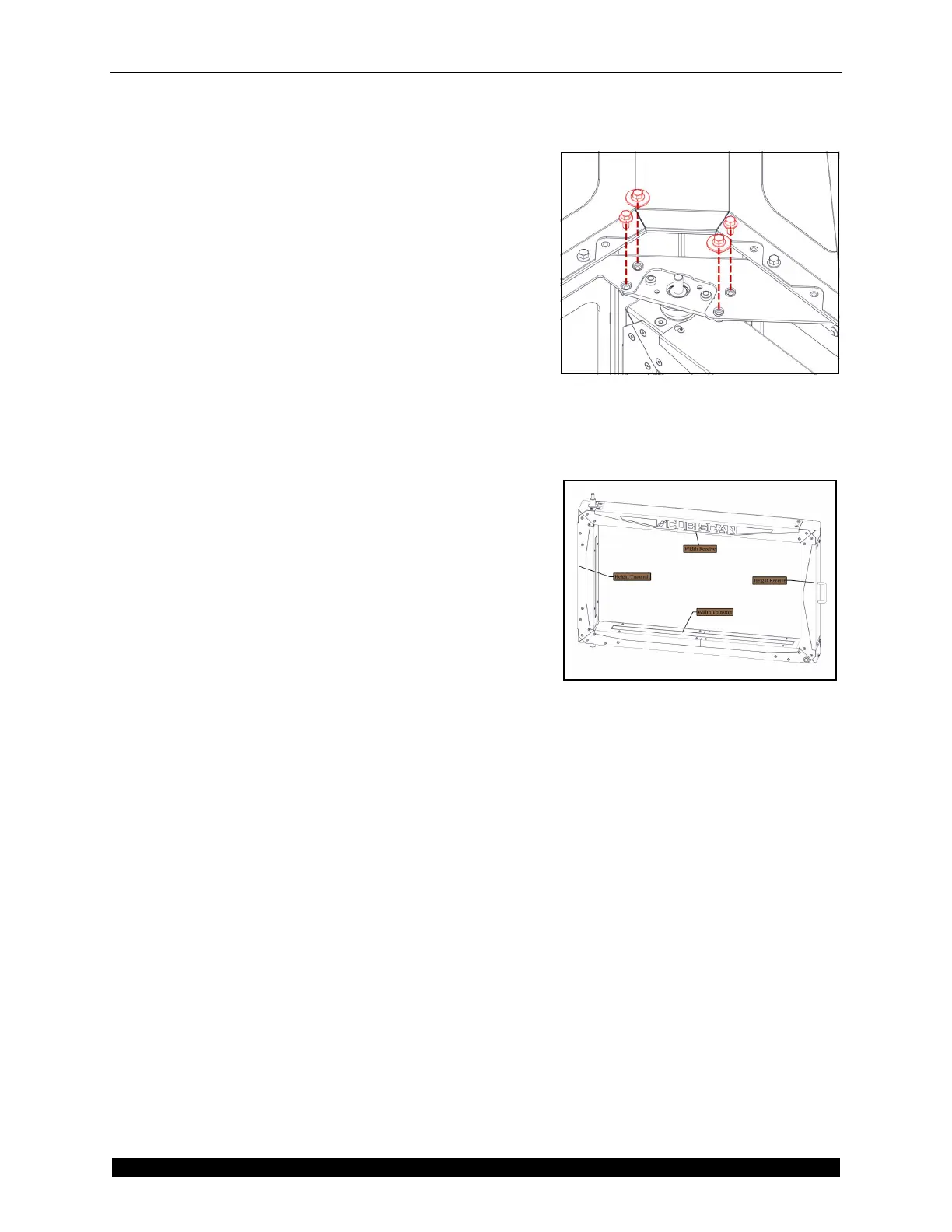

Figure 62
Gate Bracket Bolts
Figure 63
Gate Board Labels
