Quasar CP-3211 - Page 135

Quasar CP-3211/CP-4221 User and Installation Guide
120
White Balance mode on the CP-4221-301
On the CP-4221-301, in addition to the five modes listed above, a sixth white balance mode (One
Push) is available.

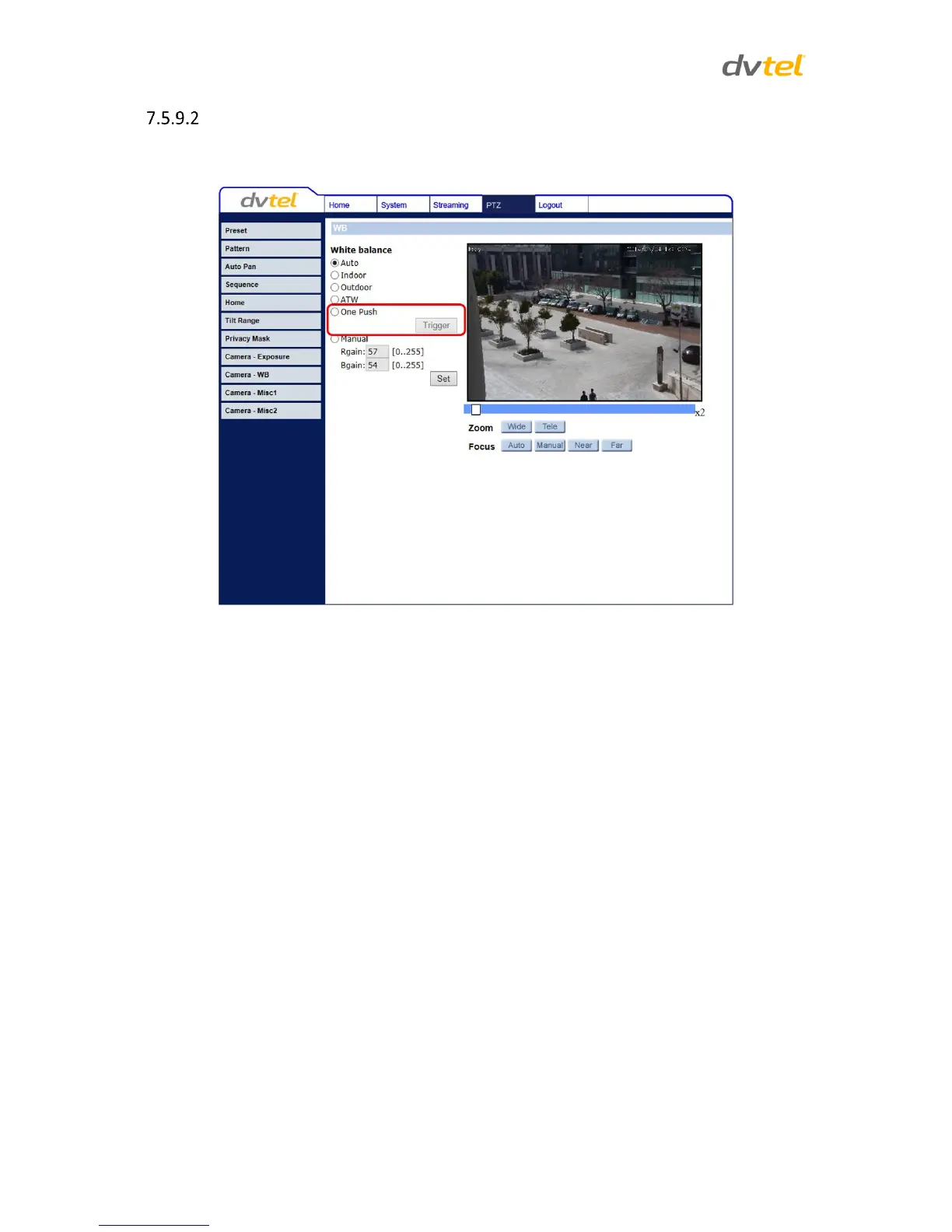

Figure 106: CP-4221-301 White Balance Screen
Click One Push to set the camera’s white balance to the current lighting condition as a reference
point. Click the Trigger when you are ready to activate the One Push function.
Set
Click Set after selecting the settings.
Zoom
Select Wide or Tele. Then drag the cursor on the Zoom bar to set the zoom level, which is displayed
in the window (x1..x30).
Focus
Select one of the following settings: Auto, Manual, Near, or Far.
