Configuration and Operation
75
o Sequence – A sequence executes pre-positioning of the pan, tilt, zoom and focus
functions in a pre-defined order. At least two preset positions must be defined: one is
the starting position and one is the ending position. If a camera is offline, the tour
skips that camera and the next online camera in the sequence displays live video.
o Autopan – An Auto pan is a scan of an area horizontally from left to right or right to
left at a user-defined speed.
o Pattern – A Pattern is a stored route defined through manual adjustment of pan, tilt,
and zoom.
Send HTTP notification – Check this box to specify the destination HTTP address and
parameters for event notifications by the triggered alarm. When an alarm is triggered, the
notification will be sent to one of two specified HTTP servers. See figure below.

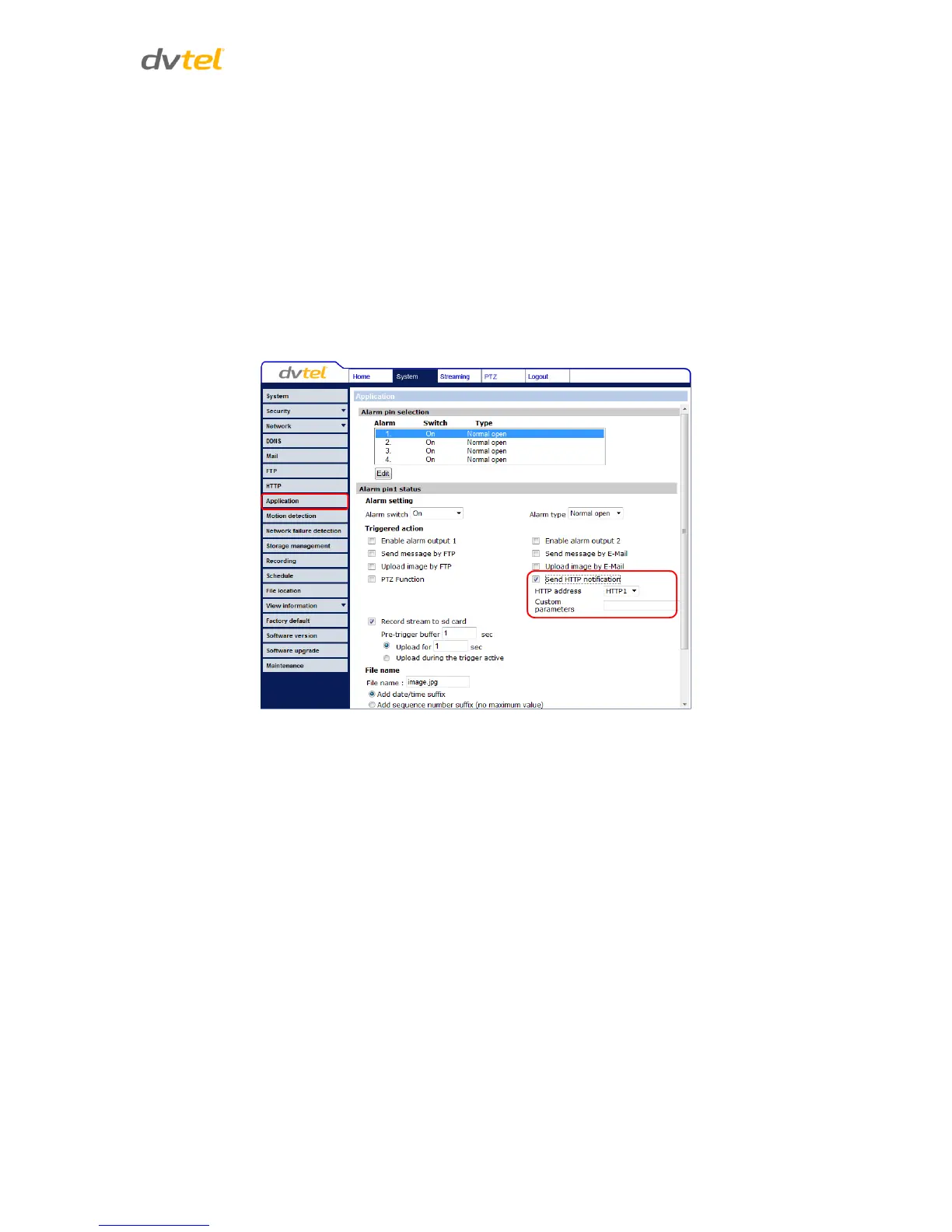

Figure 58: Application – Send HTTP Notification
File Name
File Name – Enter a file name in the field, for example image.jpg. The uploaded image’s file
name format is set in this section. Select one that meets your requirements.
o Add date/time suffix
File name: imageYYMMDD_HHNNSS_XX.jpg
Y: Year, M: Month, D: Day
H: Hour, N: Minute, S: Second
X: Sequence Number
o Add sequence number suffix (no maximum value)
File name: imageXXXXXXX.jpg
X: Sequence Number
o Add sequence number suffix (limited value)
File Name: imageXX.jpg
X: Sequence Number
The file name suffix ends at the number being set. For example, if the setting is up to
“10,” the file name will start from 00, end at 10, and then start over again.
