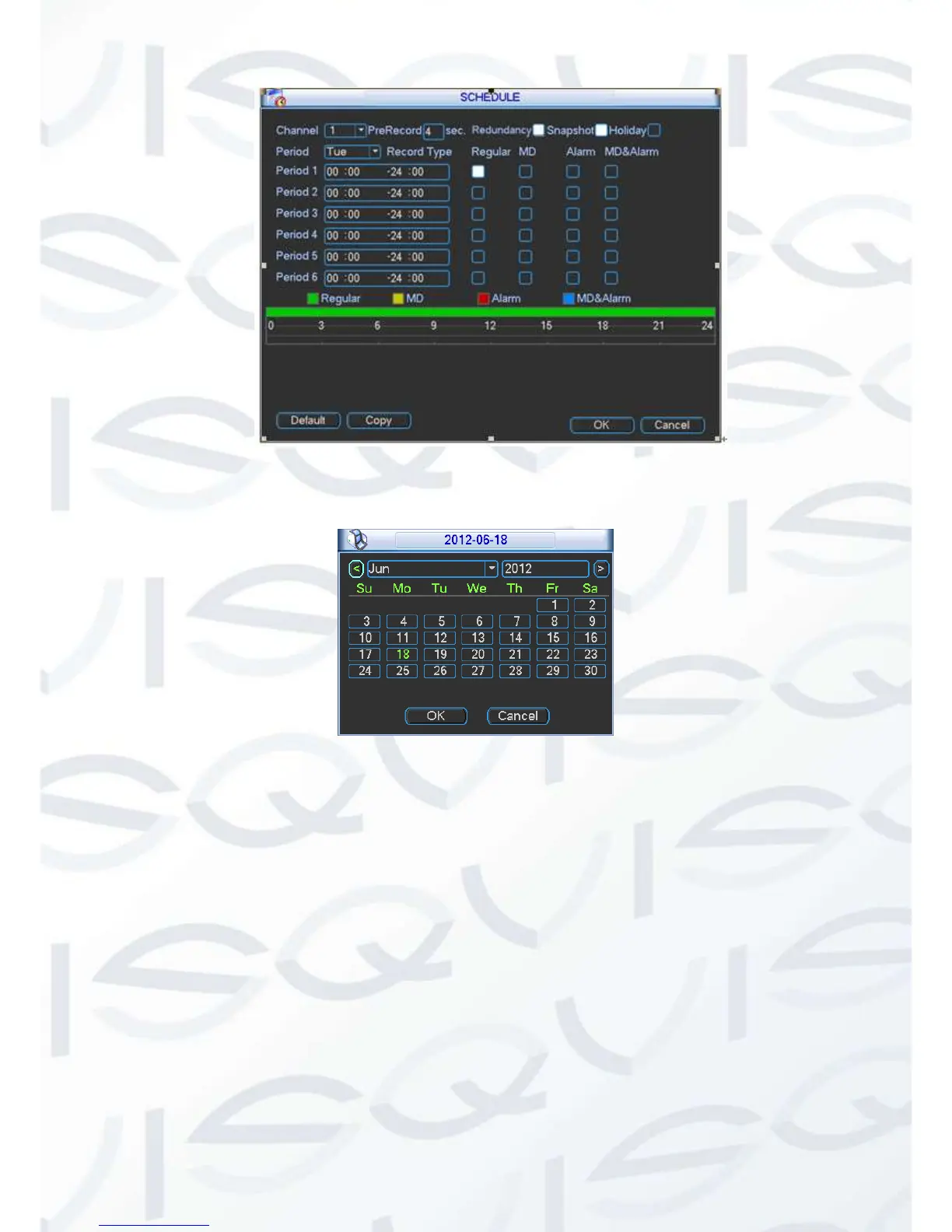

Figure 4-17
Figure 4-18
4.5.1.1 Quick Setup
Copy function allows you to copy one channel setup to another. After setting in channel 1, click
Copy button, you can go to interface Figure 4-19. You will seethe current channel name is grey
such as channel 1. Now you can select the channel you want to paste such as channel 5/6/7. If
you want to save current setup of channel 1 to all channels, you can click the first box “ALL”.
Click the OK button to save current copy setup. Click the OK button in the Record interface so
the copy function works.
Please note, if you select ALL in Figure 4-19, the record setup of all channels are the same and
the Copy button becomes hidden.
