Configuration Files
The SmartWire unit is shipped from Racepak, with factory default settings. The end user must program the
SmartWire for each particular application and wiring termination. To modify the settings of the SmartWire unit,
a PC/laptop must be connected to the SmartWire in one of the two fashions shown below. A configuration file
on the PC/laptop will then be opened and synced (READ from) the unit. Once the settings are read from the
SmartWire, changes are made, and SENT/WRITE back to the SmartWire.
Stand Alone or with V-Net sensors, No Data Recorder
When utilizing the SmartWire as a standalone system (i.e. not connected via V-Net to a compatible Racepak
Data Recorder), the factory car configuration file was copied onto the PC during the DatalinkII software
installation, and will be listed as SmartWire_Config. The configuration file contains the setup information for
the SmartWire unit, and each of the internal channels connected to the SmartWire unit.
Use this file to modify the setup of the SmartWire or to view real time data.

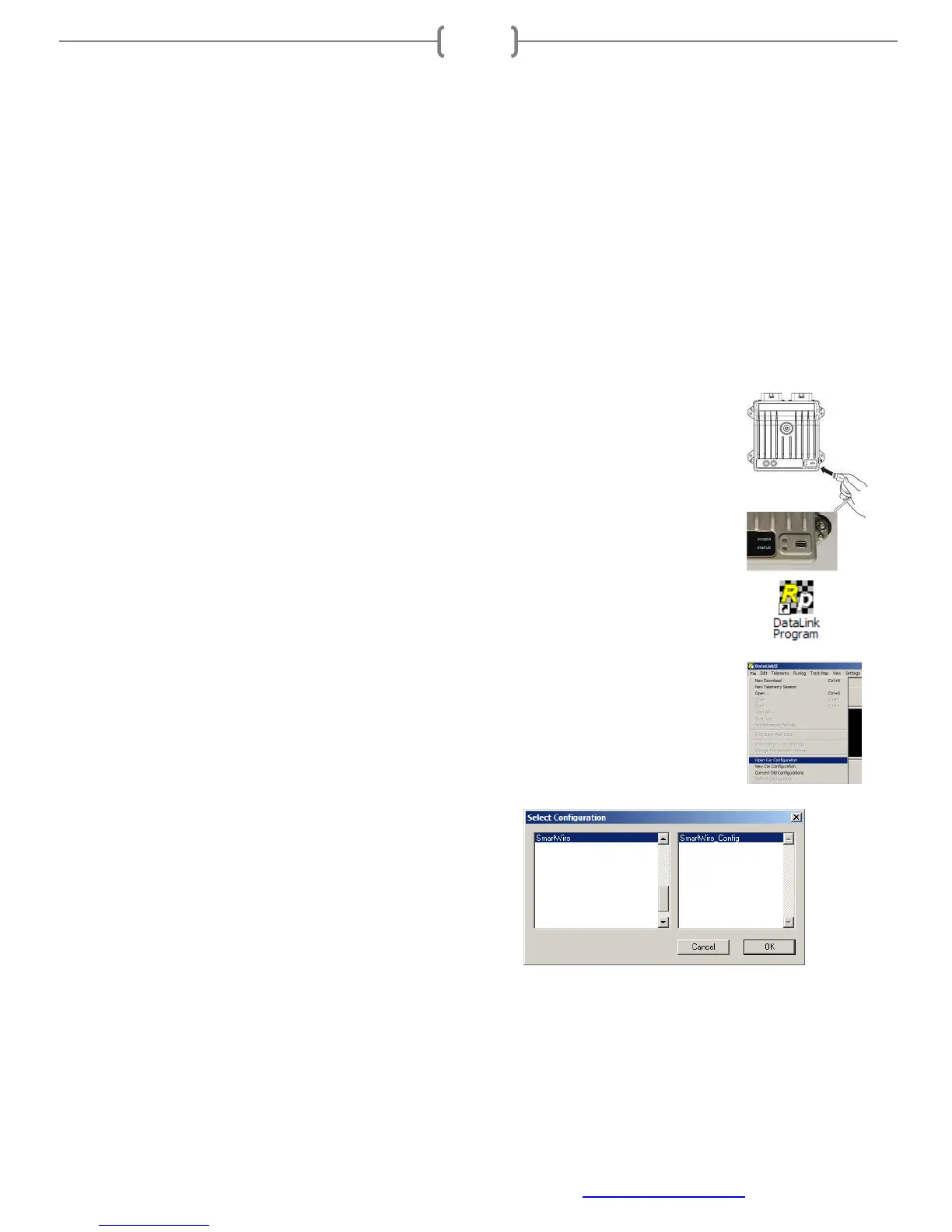

1. Connect PC to SmartWire unit using the USB programming cable supplied with
SmartWire unit system. The programming port is located next to the status lights
on the SmartWire unit (shown right).
2. Ensure the main power is turned on for the SmartWire. The Power light will be on
and lit Red when power is on.
3. Start the DatalinkII program by double clicking on the DatalinkII Program icon located
on the Windows desktop of PC (shown right).
4. Open the car configuration file. To open the car configuration file, select File
located in the main menu bar across the top of the screen and select Open Car
Configuration. (shown right).
5. The dialog box (shown right) will be displayed
6. The list on the left-hand side of the Select
Configuration dialog box will display all of the file
folders in the RacePakData subdirectory
(C:\RacePakData) that contain valid configuration
files with a .rcg file extension. Select the SmartWire
listing by selecting with the cursor.
7. The list on the right will now contain the list of configuration files contained in this folder. The factory
configuration file for the SmartWire unit will be located here. Select the OK button
