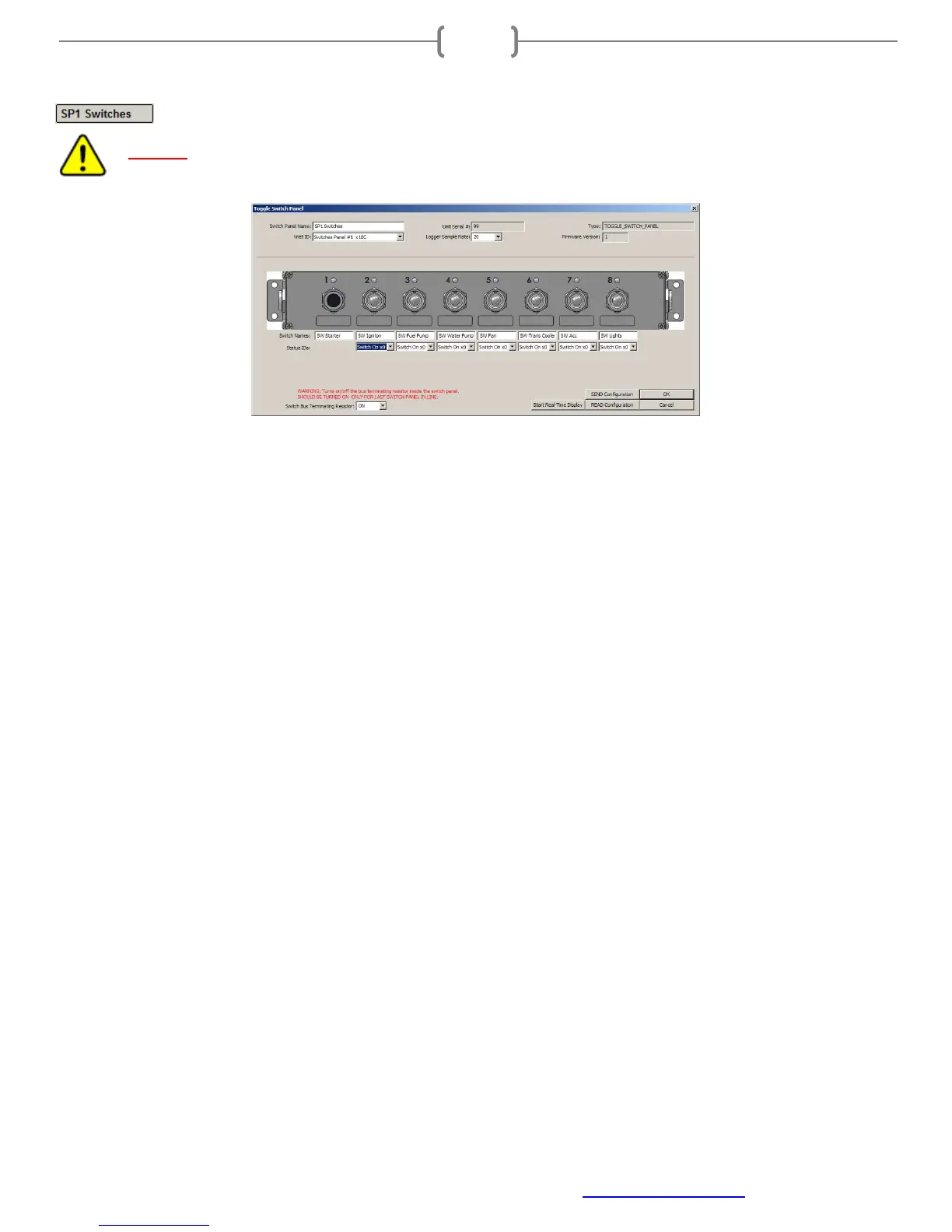

Input Switches - Smart Panel or Smart Module
Accessed by right-clicking on the SP1Switches channel button (optional, sold separately)
NOTE: The Switch Panel will need to be added to the configuration by performing a Read V-
Net Configuration before the SP1 Switches channel button appears.
• Switch Panel Name: Channel name for the Switch Panel (optional, sold separately). Change only if
more than one Switch Panel is connected to one SmartWire module. Default=SP1 Switches
• Unit Serial# Serial Number of Switch Panel unit, Non- programmable
• Type: Device Type, Non- programmable
• Vnet ID: V-Net ID for the Switch Panel. Change only if more than one Switch Panel is connected to
one SmartWire module. Default=SmartWire 1 Switches x190
• Logger Sample Rate: Logging sample rate of this channels when used with a Racepak data logger.
Default=20
• Switch Names: Name of each switch. Can be changed to match the function of each switch. It is
recommended to start the name with a reference to the type (ex: Switch Panel Input #2 for Ignition =
“SP#2 Ignition”). Name must start with a letter. Keep in mind each switch can have multiple
functions/outputs due its ability to be used in multiple output control logic windows.
Example; one switch can turn on multiple items (outputs) such as fuel pumps, ignition system
together along with other outputs of the SmartWire with one flip of the switch. This along with other
logic and Time Delay features can be used to stagger outputs with other inputs/outputs.
