For four servo swashplates, the fourth servo (Servo 5) on the single heli frame defaults to servo output 5 and
is assigned motor 37. For the dual heli frame, the fourth servo (Servo 7) on swashplate 1 defaults to servo
output 7 and is assigned motor 39. The fourth servo (Servo 8) on swashplate 2 defaults to servo output 8 and
is assigned motor 40 function.
H3 Generic - Allows servo positions and phase angle to be set by user. Assumes all swashplate ball links are
the same distance from the main shaft.
H1 non-CCPM - Servo1 is aileron, Servo 2 is elevator and Servo 3 is collective

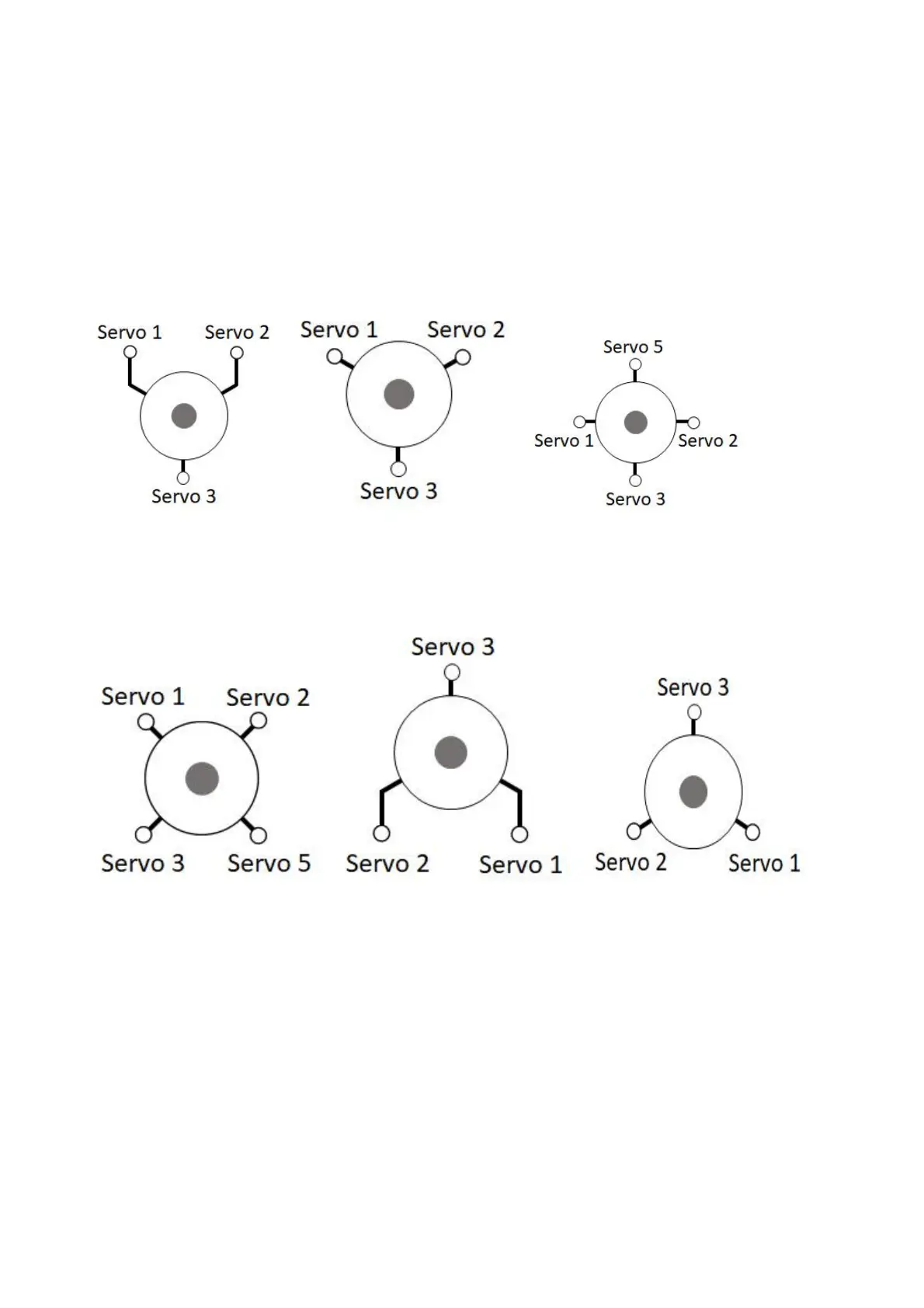

H3-140 H3-120 H4-90
H4-45 H3R-140 H3R-120
