IQ Network Communication Cartridge
D

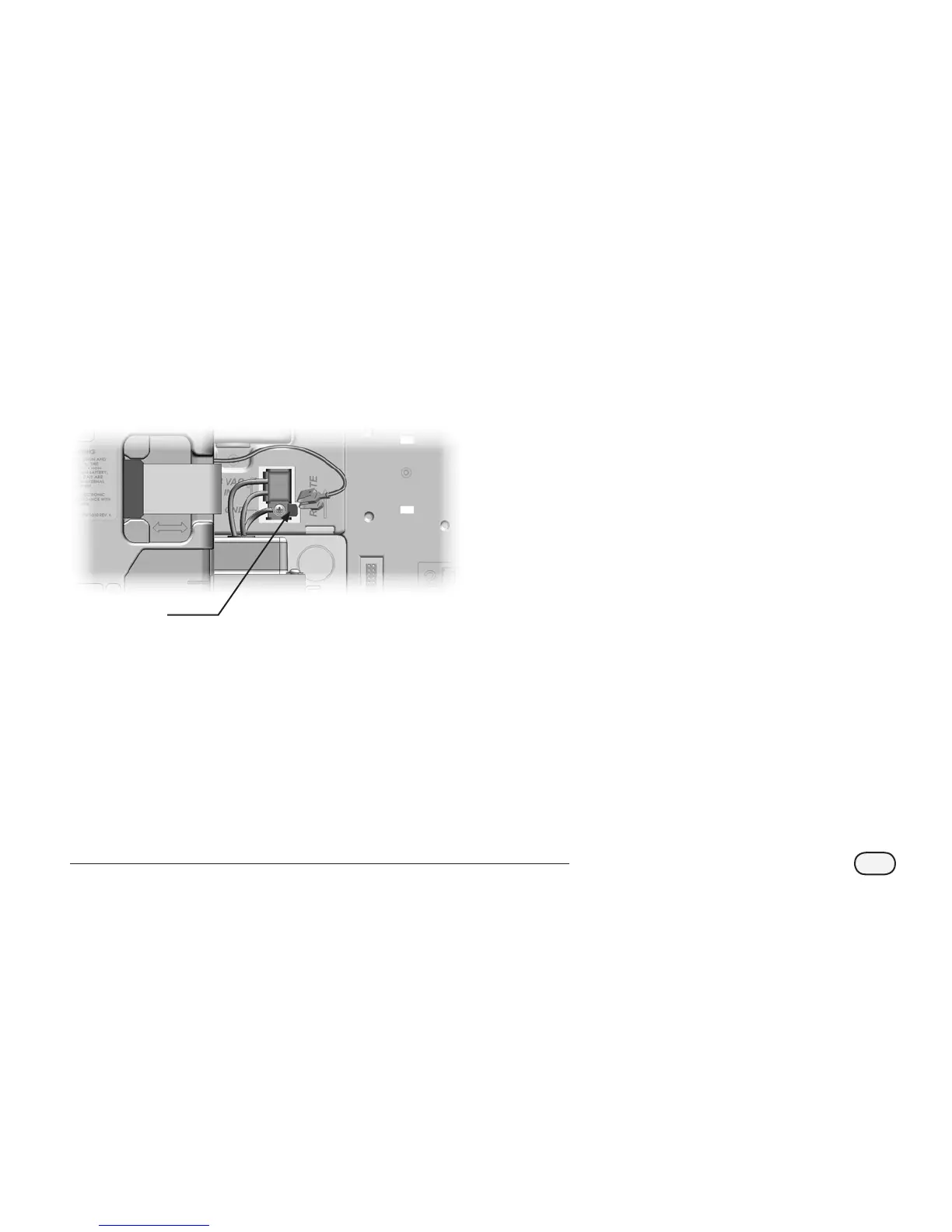

Connect the Green and yellow ground wire to the
grounding post on the left side of the satellite
backplane.
4
b
NOTE: If the ground wire from an IQ-NCC-PH cartridge
has been previously installed on the grounding post,
disconnect the wire. Connect the connection module
ground wire directly to the post, then reconnect the
IQ-NCC-PH ground wire to the connection module
ground connector.
