40
IQ Network Communication Cartridge

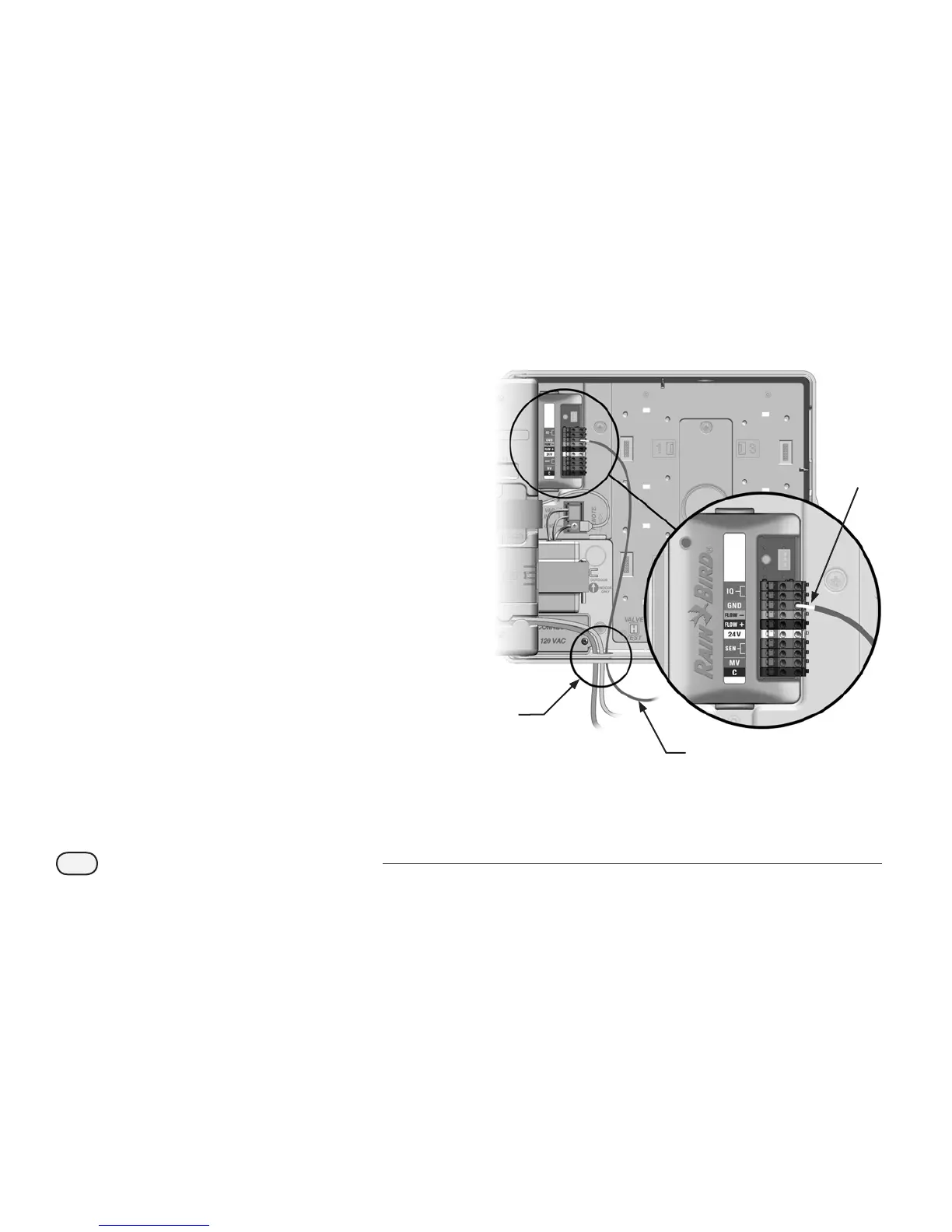

Connect IQ-CM Grounding Wire
An additional ground wire is required if you’re installing
either an IQ-CM-LXD or IQ-CM-LXME connection module.
A
Attach one end of the grounding wire to Earth ground
(electrical ground, ground rod or ground plate).
B
Route the grounding wire through the knock-out on
the bottom of the controller.
C
Attach the grounding wire to the CM module GND
terminal as shown.
b
WARNING: Failure to ensure proper grounding of
the connection module could result in risk of electric
shock or other hazard to persons, as well as possible
equipment damage and malfunction.
1
To Earth ground
2
3
To Next Page
