HOME SCREEN OVERVIEW

The home screen is the first screen that opens after powering up the CRX and

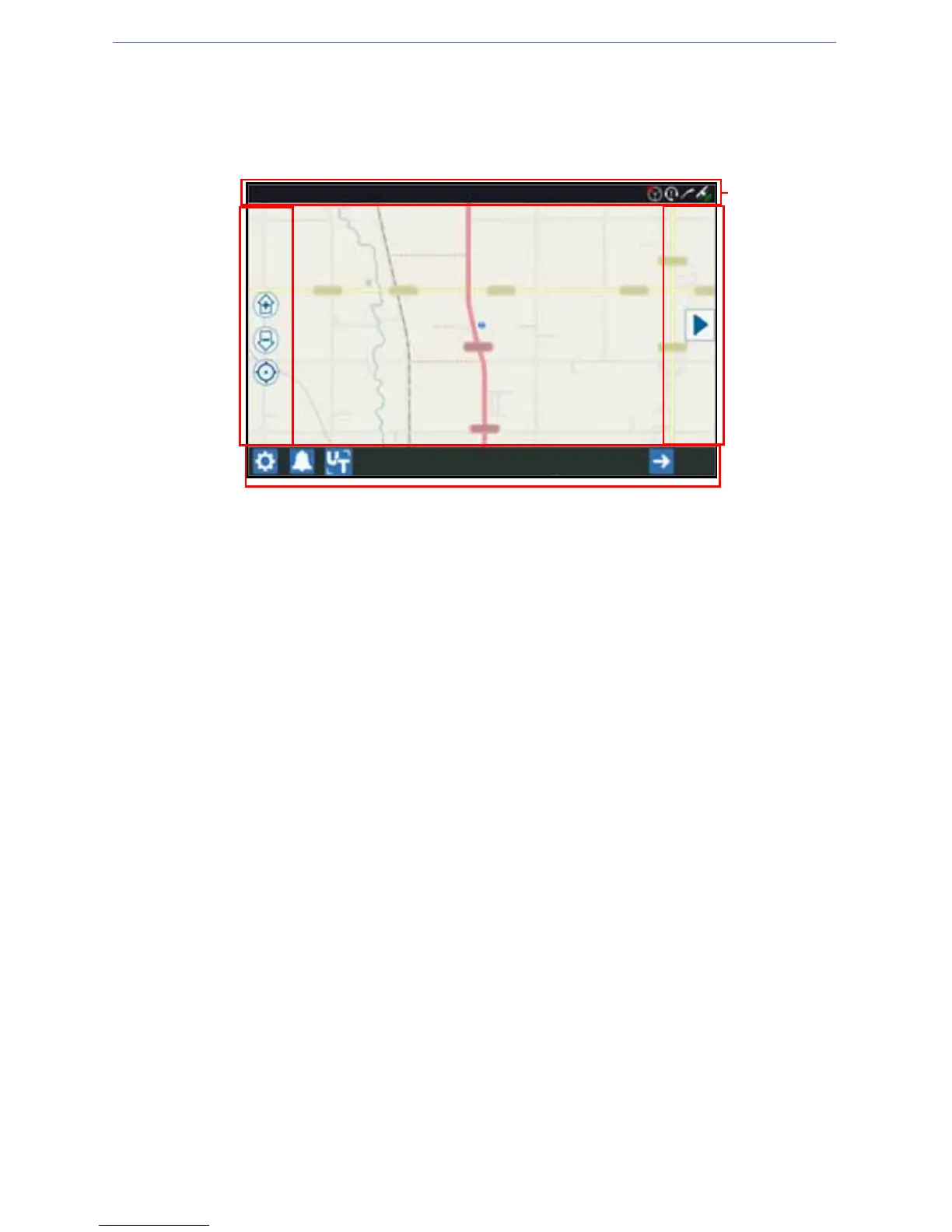

accepting all disclaimers. The home screen (see image below) provides basic options

for starting New Jobs, accessing Machine Setup, and viewing maps.

NOTE: Go to portal.ravenslingshot.com to locate and download Street Maps

for the CRX.

Status Bar

Left

Side

Bar

Right

Side

Bar

Footer Bar

Default Chapter3
- Table of Contents3
Contents4
Manual Overview6
Important Safety Information7
CRX Overviews8
- CR7 Overview8
Overview8
- CR12 Overview10
Care and Maintenance13
Installation14
- Quick Start Settings14
Home Screen Overview17
CRX Settings Screen Overview18
Home Screen Overview18
CRX Settings Screen Overview19
- Machine Configuration23
- Deleting an Existing Machine25
- Creating a Mounted Implement25
- Adding Drawn Equipment26
- ISO Boom Configuration27
- SCS Configuration27
Creating a New Grower, Farm, and Field28
- Accessing, Editing, and Deleting Existing Growers, Farms, and Fields28
- Delete Existing Grower, Farm, or Field29
Starting a Job30
- Starting an Existing Job30
- Start a New Job in a New Field31
Operation Planning33
- Pre-Planning33
- Planning35
Run Screen Overview39
- Widgets40
- Widgets41
Run Screen Overview39
Scouting Objects43
- Creating a Flag43
- Creating a Field Boundary, Do Not Apply Zone, or Application Zone43
- Creating a Field Boundary, Do Not Apply Zone, or Application Zone44
Creating Guidance Lines45
Adjusting Section Control47
- Adjusting Rate Control Settings48
Adjusting Settings49
- Display Settings49
- Localization49
- Serial Port Information50
- Gps50
- Remote Support51
- Master Switch Configuration52
- Universal Terminal (UT) Settings52
- Lightbar Configuration52
- Notifications53
File Manager54
- File Types54
- Copy a File54
- Delete a File55
- Importing Maps, Guidance Lines, and Feature Unlocks55
- Loading and Running a Prescription Map57
- Ejecting the USB59
Software and Hardware Updates60
- Software60
- Downloading a CRX Update to USB61
- Installing CRX Updates Via USB61
- ISO Node and GPS Updates61
- Smartrax System Information63
Feature Unlocks64
- Temporary Unlock Activation64
- Entering a Permanent Unlock65
System Shutdown67
- Limited Warranty68
