CR7 CONSOLE OVERVIEW
This section provides a basic overview of the front and back of the CR7. References
to various parts of the CR7 may be mentioned through this manual. It is important to
become familiar with the CR7 prior to operation.

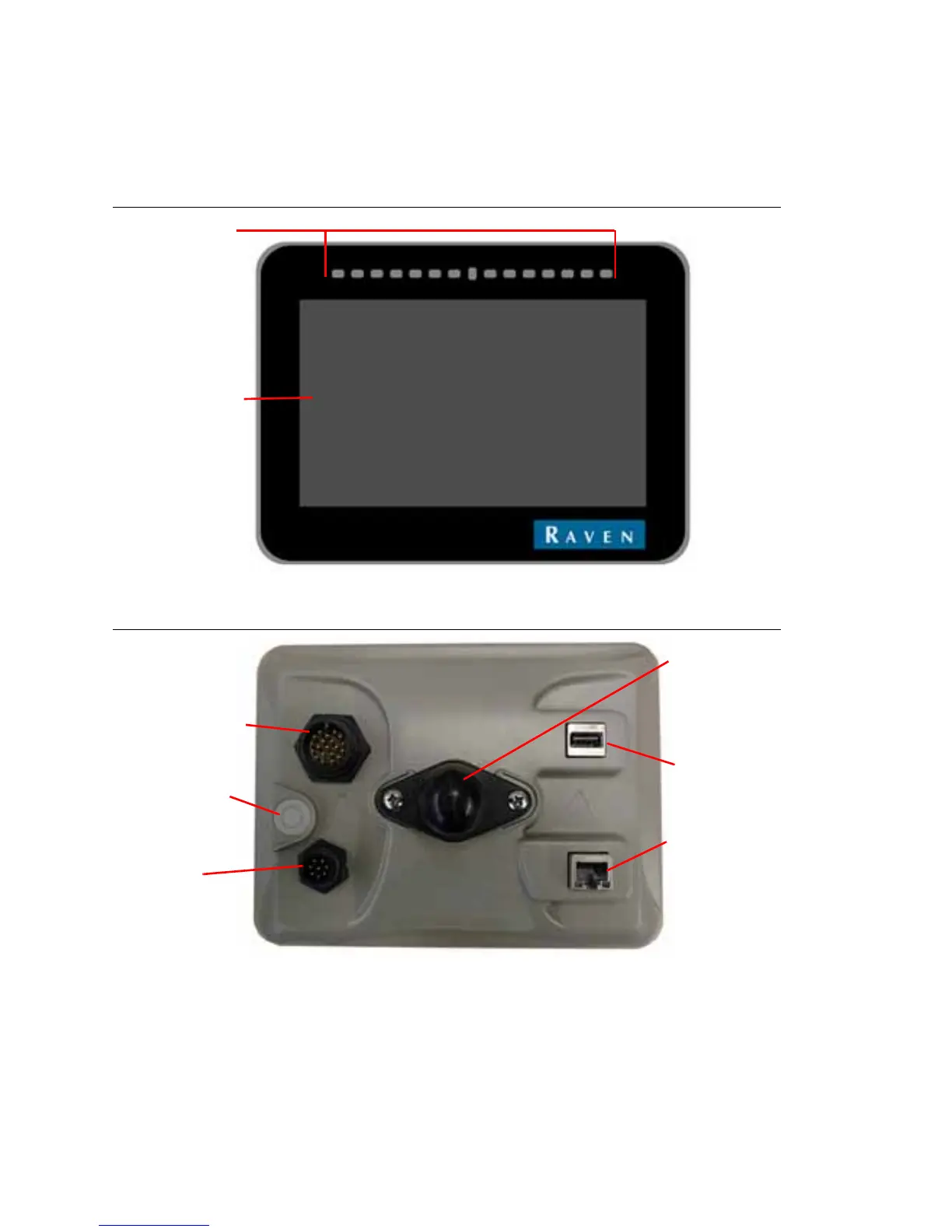

FIGURE 1. CR7 Display
FIGURE 2. Back of CR7 Console
CR12 OVERVIEW
DESCRIPTION
The CR12 is a larger version of the CR7 with a 12.1” capacitive touch screen, and an
intuitive, tablet-style interface. CR12 utilizes the CRX operating software platform.
Touch
Screen
Integrated
Light Bar
Ethernet
Port
1” RAM
Mount
I/O Cable
Connection
Power
Button
USB Port
Power and
GPS
Connection
