Chapter 4
28 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual

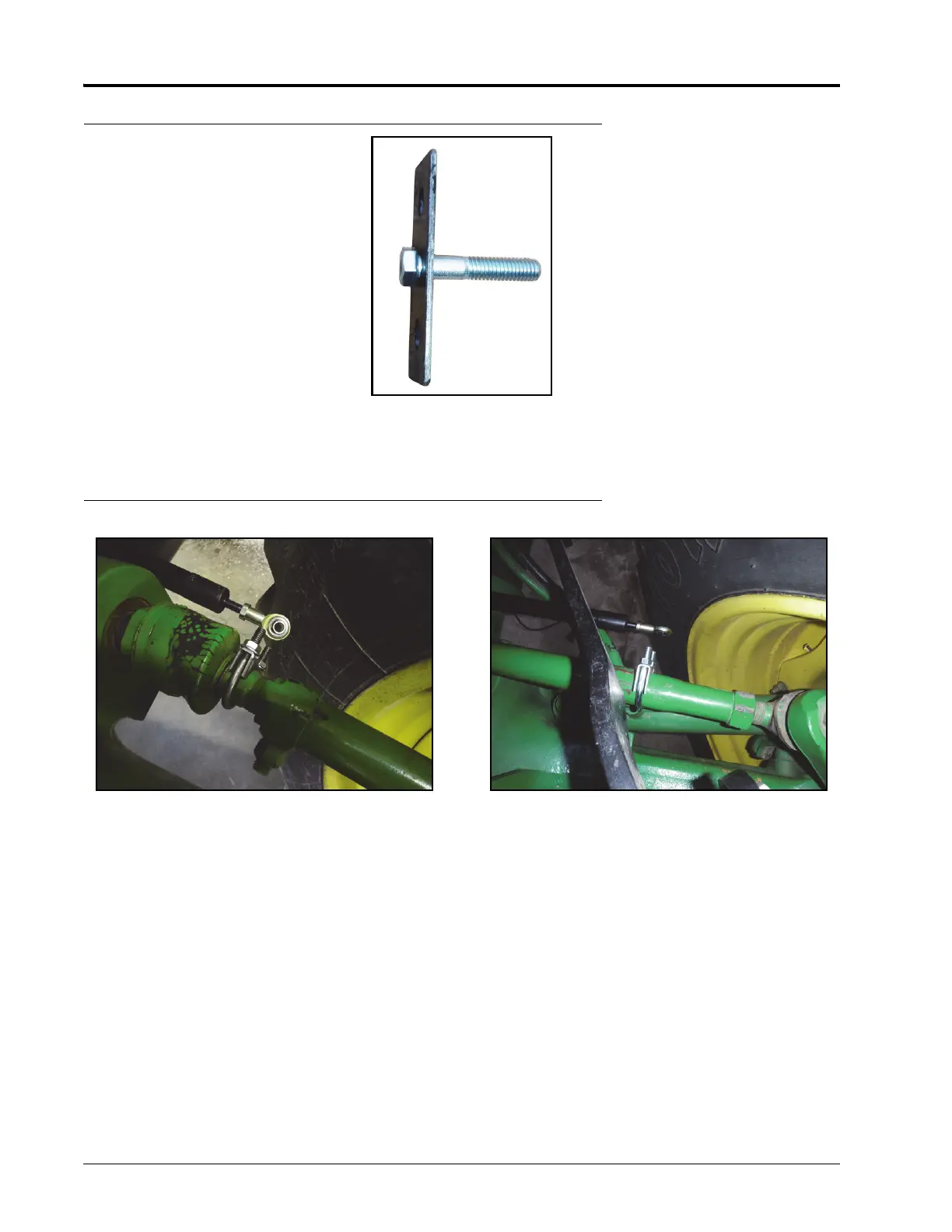

FIGURE 6. M10 Bolt Inserted into Rod Mounting Bracket
6. Insert the M10 x 1.5 metric hex bolt (70 mm, P/N 311-0070-033 for single steering cylinder models, 60 mm,
P/N 311-0070-025 for dual steering cylinder models) into the rod mounting bracket (P/N 107-0172-030).
FIGURE 7. Muffler Clamp Installed
7. Remove the nuts and clamp from the appropriate muffler clamp for the machine’s configuration.
8. Install the muffler clamp on the axle.
a. Single steering cylinder models - Install the 1-1/2” muffler clamp U-bolt (P/N 435-3003-030) on the left
side between the tie rod and cylinder rod with the legs of the U-bolt pointing to the rear of the machine.
Replace the clamp and nuts.
b. Dual steering cylinder models - Install the 1-3/4” muffler clamp U-bolt (P/N 435-3003-052) on the left
side of the tie rod with the legs of the U-bolt pointing to the rear of the machine. Replace the clamp and
nuts.
Note: Do not tighten the nuts to allow for adjustment later in the procedure.
Single Steering Cylinder Models
Dual Steering Cylinder Models
Left
Front
Tire
Left
Front
Tire
To Next Page
