Chapter 4
34 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual

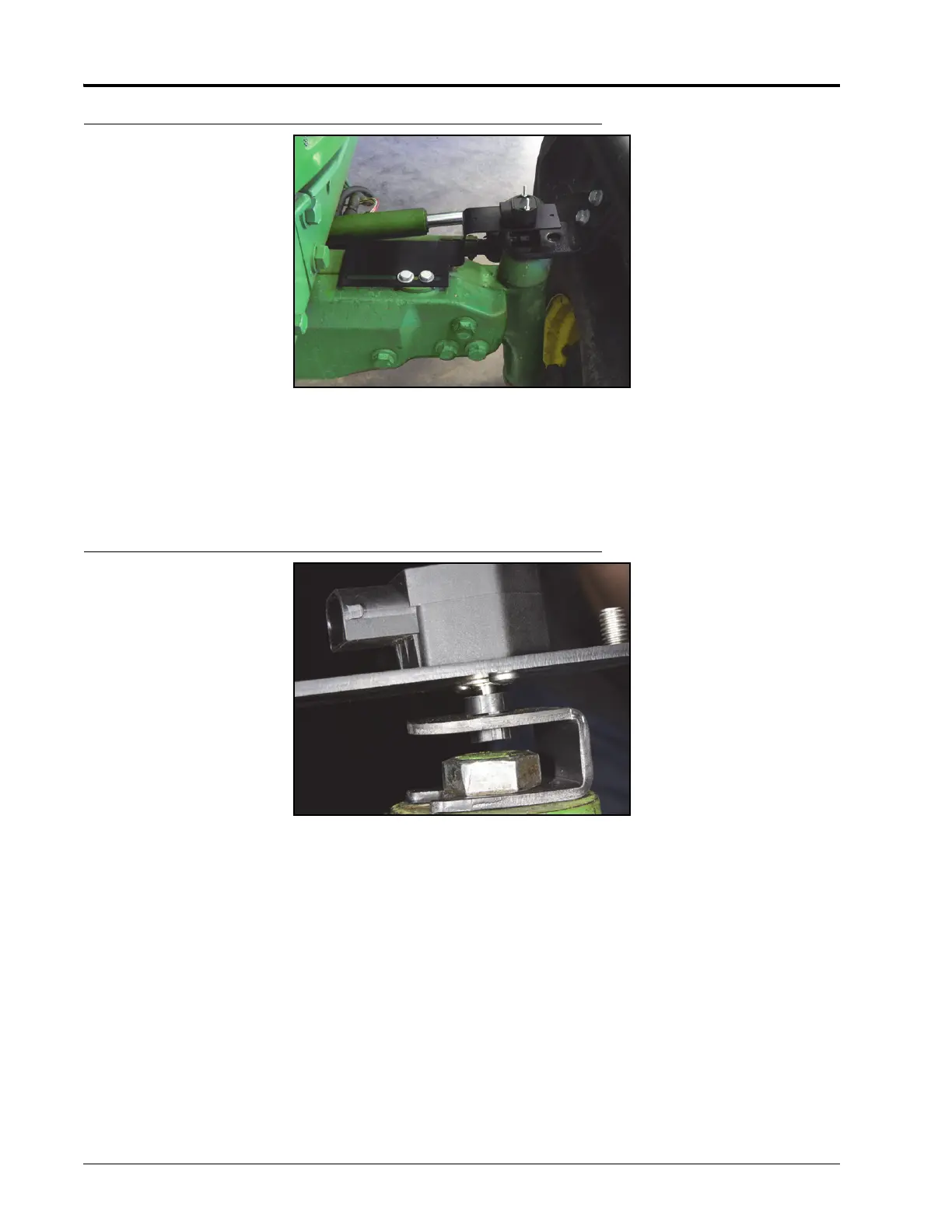

FIGURE 19. Sensor Bracket Installed
10. Align the sensor mounting bracket over the bolt holes in the axle clamp so that the sensor is positioned
above the kingpin.
11. Reinstall the machine’s M10 axle clamp bolts.
Note: Do not fully tighten.
FIGURE 20. Sensor Shaft Installed in WAS Coupler
12. Insert the sensor shaft into the installed WAS coupler.
13. Tighten the machine’s M10 axle clamp bolts.
14. Installation is complete. Proceed to Chapter 5, Cab Component Installation.
